TA-800-S

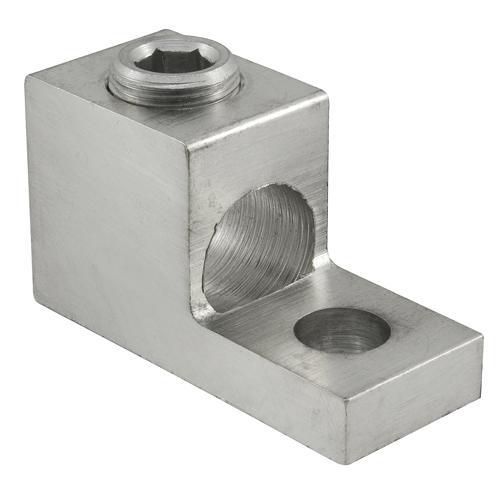

ILSCO TA-800-S ILSCO ClearChoice Mechanical Terminal Lug
Part Number # TA-800-S
SKU # 2321492
$179.28 / 3Each
Ilsco TA-800-S Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | TA-800-S |
| SKU #: | 2321492 |
| Conductor Size: | 3/0 AWG to 800 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 3.25 in L x 1.3125 in W x 1.812 in H |
| Finish: | Electro-Plated Tin |
| Series: | TA Series |
| Specifications: | 1/2 in Hex |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1.5 in L x 1.313 in W x 0.5 in THK |
| Tongue Type: | Straight |
| Type: | 1-Conductor Dual Rated |
| Country of origin: | MX |
| Material: | 6061-T6 Aluminum Alloy |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669893120 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$179.28 / 3Each
Quantity:
- ILSCO ClearChoice Mechanical Terminal Lug, 1-Conductor Dual Rated, Series: TA Series, Aluminum/Copper Conductor, 3/0 AWG to 800 kcmil Conductor, 5/8 in Stud, 1 Bolt Hole, 1.5 in L x 1.313 in W x 0.5 in THK Tongue, Straight Tongue, 2000 V AC, 1/2 in Hex, 90 deg C, 6061-T6 Aluminum Alloy, Electro-Plated Tin, 3.25 in L x 1.3125 in W x 1.812 in H
TA-800-S Application
Terminating Connector ApplicationsTA-800-S Item Features
- Manufactured from high strength 6061-T6 aluminum alloy
- Chamfered wire entry provides ease of installation
- Provides low contact resistance
- Ensures reliability for copper or aluminum conductors
- 1-stud
- Suitable for use with either copper or aluminum conductors
TA-800-S Standards
CSA File No. LR-29601|UL 453G|UL 486A-B File No. E6207|ECCN EAR99SKU #2321492Part Number #TA-800-SUNSPSC39121408UPC00783669893120
