USGL-1000R168

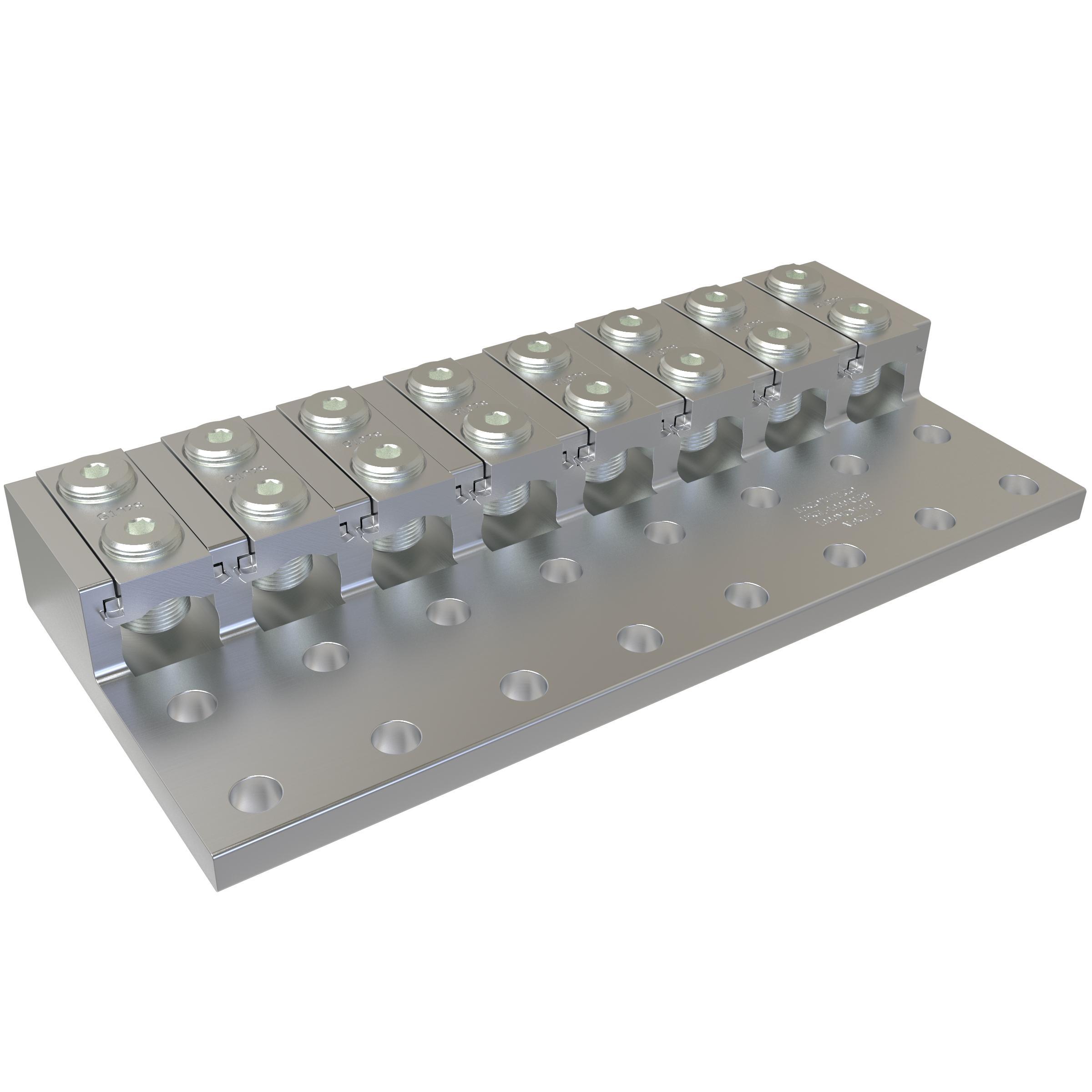

ILSCO USGL-1000R168 ILSCO ClearTrax Spade Mount Terminal Lug
Part Number # USGL-1000R168
SKU # 2270987
Ilsco USGL-1000R168 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | USGL-1000R168 |
| SKU #: | 2270987 |
| Conductor Size: | 1/0 AWG to 1000 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 6.187 in L x 13.809 in W x 1.875 in H |
| Finish: | Clear Plated |
| Number of Conductors: | 8 |
| Specifications: | 5/16 in Hex, 16 Mounting Holes |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type USGL 1-Stage Heavy Duty Lay-In |
| Color: | Clear |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669003239 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO USGL-1000R168 ILSCO ClearTrax Spade Mount Terminal Lug
Brand: Ilsco
Part Number: USGL-1000R168
ILSCO ClearTrax Spade Mount Terminal Lug, Type USGL 1-Stage Heavy Duty Lay-In, Aluminum/Copper Conductor, 8 Conductors, 1/0 AWG to 1000 kcmil Conductor, 1/2 in Stud, 2000 VAC, 5/16 in Hex, 16 Mounting Holes, 90 deg C, Aluminum, Clear Plated, Clear, 6.187 in L x 13.809 in W x 1.875 in H
Additional Description: ILSC-USGL-1000R168 AL LAY IN (8)1000-1/0(16)9/16- 1-3/4 UL UL W UL
Catalog Description: Cleartrax Aluminum Lay-In Connector, Dual Rated, Conductor Range 1000-1/0, 8 Ports, 16 Holes, UL
USGL-1000R168 Application
For terminating connectorUSGL-1000R168 Item Features
- Compact, lay-in design solves the problem of trying to bend larger size cables into place
- Fully tested to ANSI C119.4 for class "A" connectors, ensuring better heat dissipation and reliability
- Manufactured from high strength 6061-T6 aluminum for strength and conductivity, dual rated for aluminum or copper conductors
- High strength aluminum 5/16 in drive torque screw enables range taking
- Clear plated provides low contact resistance
- Designed for installation on standard NEMA mounting holes for flexibility conforms to industry standards
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-3/4 in NEMA spacing on mounting holes
- 9/16 in Dia mounting hole
USGL-1000R168 Standards
UL 486A|UL 486B|UL 453G File No. E6207|ANSI C119.4SKU #2270987Part Number #USGL-1000R168UNSPSC39121408UPC00783669003239
