Part Number # USGL-1000R21
SKU # 2299301
Image Disclaimers Message
Brand: Ilsco
USGL-1000R21

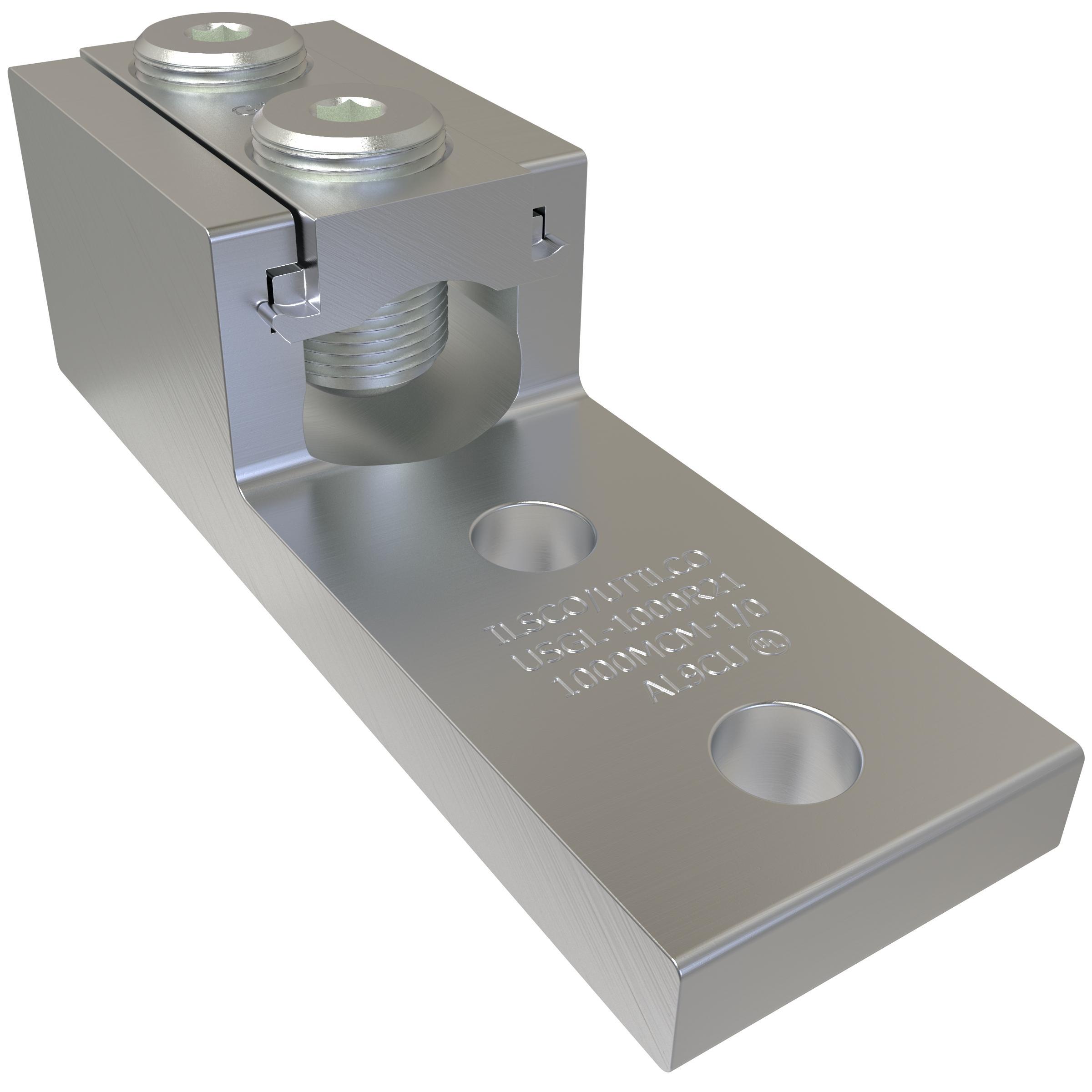

ILSCO USGL-1000R21 ILSCO ClearTrax Spade Mount Terminal Lug
Part Number # USGL-1000R21
SKU # 2299301
$1549.76 / 8Each
Ilsco USGL-1000R21 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | USGL-1000R21 |
| SKU #: | 2299301 |
| Conductor Size: | 1/0 AWG to 1000 kcmil |
| Conductor Type: | Aluminum/Copper |
| Dimensions: | 6.19 in L x 2 in W x 1.88 in H |
| Finish: | Clear Plated |
| Number of Conductors: | 1 |
| Specifications: | 5/16 in Hex, 2 Mounting Holes |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Type: | Type USGL 1-Stage Heavy Duty Lay-In |
| Color: | Clear |
| Country of origin: | MX |
| Material: | Aluminum |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669003185 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1549.76 / 8Each
Quantity:
- ILSCO ClearTrax Spade Mount Terminal Lug, Type USGL 1-Stage Heavy Duty Lay-In, Aluminum/Copper Conductor, 1 Conductor, 1/0 AWG to 1000 kcmil Conductor, 1/2 in Stud, 2000 V AC, 5/16 in Hex, 2 Mounting Holes, 90 deg C, Aluminum, Clear Plated, Clear, 6.19 in L x 2 in W x 1.88 in H
USGL-1000R21 Application
For terminating connectorUSGL-1000R21 Item Features
- Compact, lay-in design solves the problem of trying to bend larger size cables into place
- Fully tested to ANSI C119.4 for class "A" connectors, ensuring better heat dissipation and reliability
- Manufactured from high strength 6061-T6 aluminum for strength and conductivity, dual rated for aluminum or copper conductors
- High strength aluminum 5/16 in drive torque screw enables range taking
- Clear plated provides low contact resistance
- Designed for installation on standard NEMA mounting holes for flexibility conforms to industry standards
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- Application versatility
- 1-3/4 in NEMA spacing on mounting holes
- 9/16 in Dia mounting hole
USGL-1000R21 Standards
UL 486A/486B/453G File No. E6207|ANSI C119.4|PROP65: it is not known to contain any chemicals associated with this regulationSKU #2299301Part Number #USGL-1000R21UNSPSC39121408UPC00783669003185
