Part Number # XT-4
SKU # 2267799
XT-4

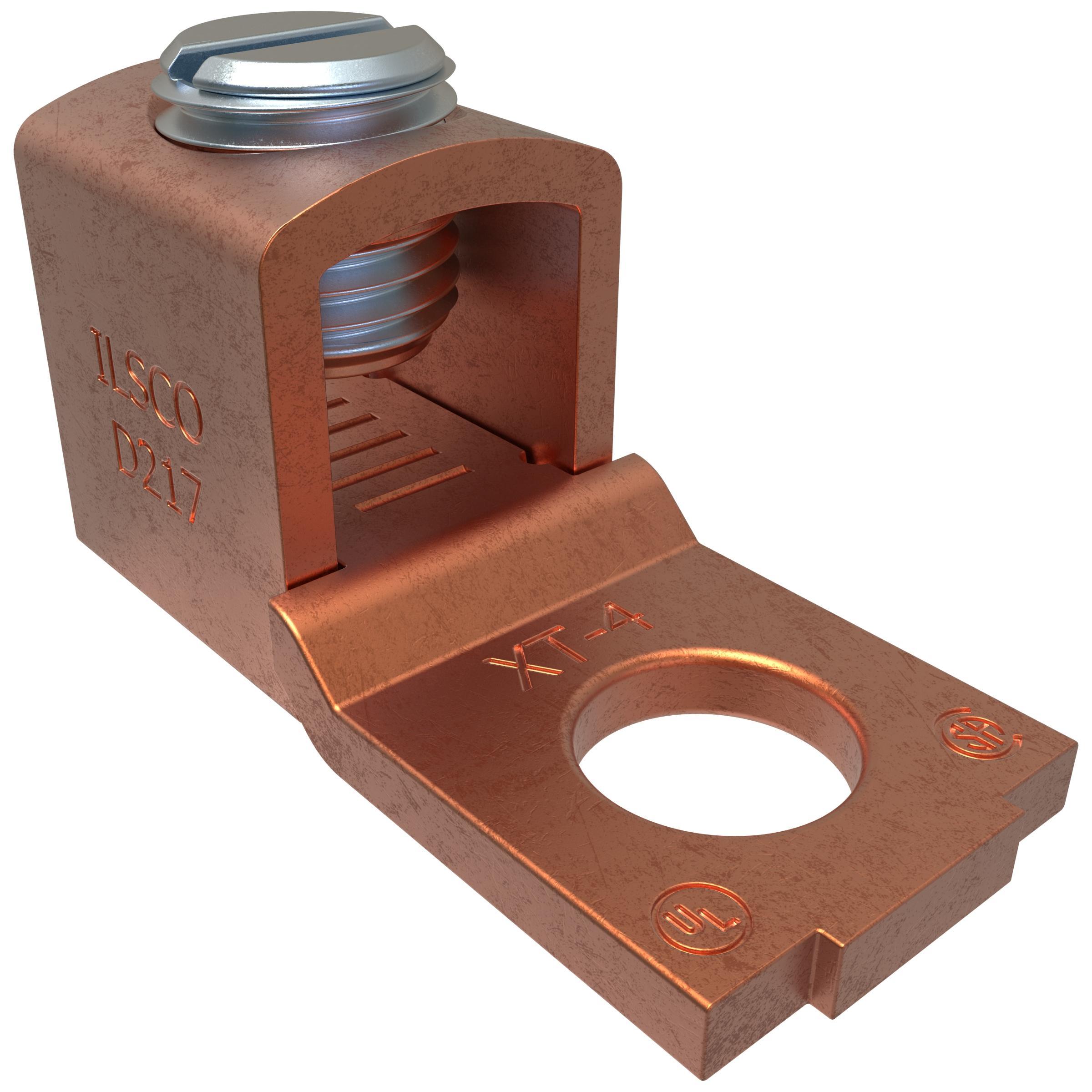

ILSCO XT-4 ILSCO ClearChoice Mechanical Lug
Part Number # XT-4
SKU # 2267799
Ilsco XT-4 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | XT-4 |
| SKU #: | 2267799 |
| Dimensions: | 1-1/4 in L x 1/2 in W x 5/8 in H |
| Specifications: | 17/64 in Dia Hole, 1/4 in Hole Center to Tongue End |
| Tongue Size: | 3/4 in L |
| UNSPSC: | 39121408 |
| UPC: | 00783669957556 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
ILSCO XT-4 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: XT-4
ILSCO ClearChoice Mechanical Lug, Series: XT Series, Copper Conductor, 14 to 4 AWG Conductor, 1/4 in Stud, 1 Bolt Holes, 3/4 in L Tongue, Straight Tongue, 2000 VAC, Specifications: 17/64 in Dia Hole, 1/4 in Hole Center to Tongue End, 90 deg C, Copper, Electrolytic, 1-1/4 in L x 1/2 in W x 5/8 in H Dimensions
Additional Description: ILSC-XT-4 CU MEC 4-14 17/64 B UL CSA 1 H OLE
Catalog Description: Copper Mechanical Lug, Conductor Range 4-14, 1 Port, 1 Hole, 1/4in Bolt Size, UL, CSA
XT-4 Application
For terminating connectorXT-4 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- A - UL listed combinations (2) 14 AWG stranded or (2) AWG 12 stranded or (2) AWG 10 stranded or (2) 8 AWG stranded and (4) 16 AWG stranded conductor size
- B - UL listed combinations (2) 6 AWG stranded and (2) 8 AWG stranded conductor size
XT-4 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #2267799Part Number #XT-4UNSPSC39121408UPC00783669957556
Image provided may only be a representation of final product and may include optional equipment
