Part Number # XT-500
SKU # 19516
Image Disclaimers Message
Brand: Ilsco
XT-500

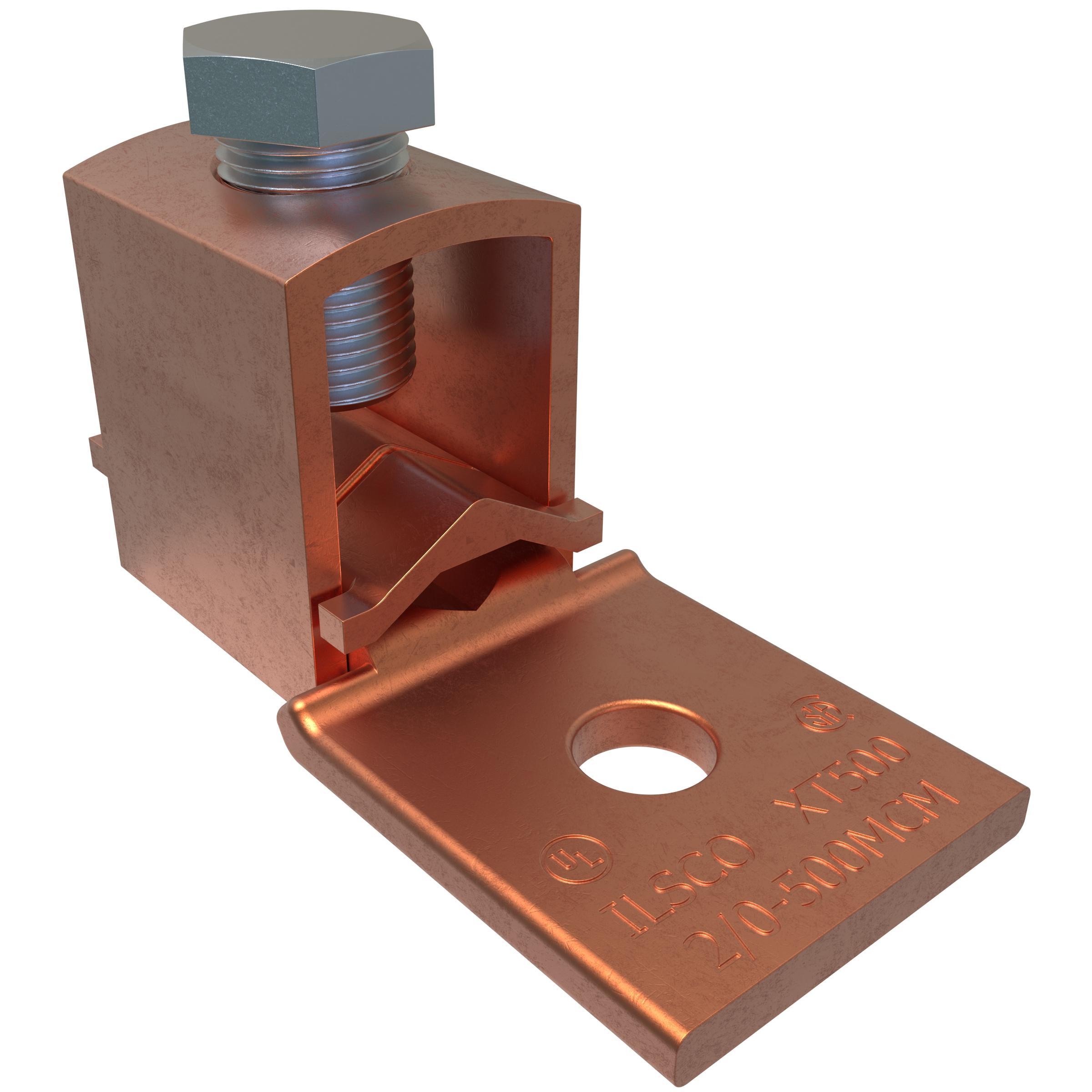

ILSCO XT-500 ILSCO ClearChoice Mechanical Lug
Part Number # XT-500
SKU # 19516
$483.90 / 6Each
Ilsco XT-500 Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | XT-500 |
| SKU #: | 19516 |
| Conductor Size: | 2/0 AWG to 500 kcmil |
| Conductor Type: | Copper |
| Dimensions: | 3-3/16 in L x 1-1/2 in W |
| Finish: | Electrolytic |
| Series: | XT Series |
| Specifications: | 3/4 in External Hex |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 1-11/16 in L |
| Tongue Type: | Straight |
| Country of origin: | MX |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669960372 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$483.90 / 6Each
Quantity:
ILSCO XT-500 ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: XT-500
ILSCO ClearChoice Mechanical Lug, Series: XT Series, Copper Conductor, 2/0 AWG to 500 kcmil Conductor, 3/8 in Stud, 1 Bolt Holes, 1-11/16 in L Tongue, Straight Tongue, 2000 VAC, Specifications: 3/4 in External Hex, 90 deg C, Copper, Electrolytic, 3-3/16 in L x 1-1/2 in W Dimensions
Additional Description: ILSC-XT-500 (N) CU MEC 500-2/0 7/16 B UL CSA NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Copper Mechanical Lug, Conductor Range 500-2/0, 1 Port, 1 Hole, 3/8 Bolt Size, UL, CSA
XT-500 Application
For terminating connectorXT-500 Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- A - UL listed combinations (2) 14 AWG stranded or (2) AWG 12 stranded or (2) AWG 10 stranded or (2) 8 AWG stranded and (4) 16 AWG stranded conductor size
- B - UL listed combinations (2) 6 AWG stranded and (2) 8 AWG stranded conductor size
XT-500 Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #19516Part Number #XT-500UNSPSC39121408UPC00783669960372
