Part Number # XT-6DB
SKU # 2263536
Image Disclaimers Message
Brand: Ilsco
XT-6DB

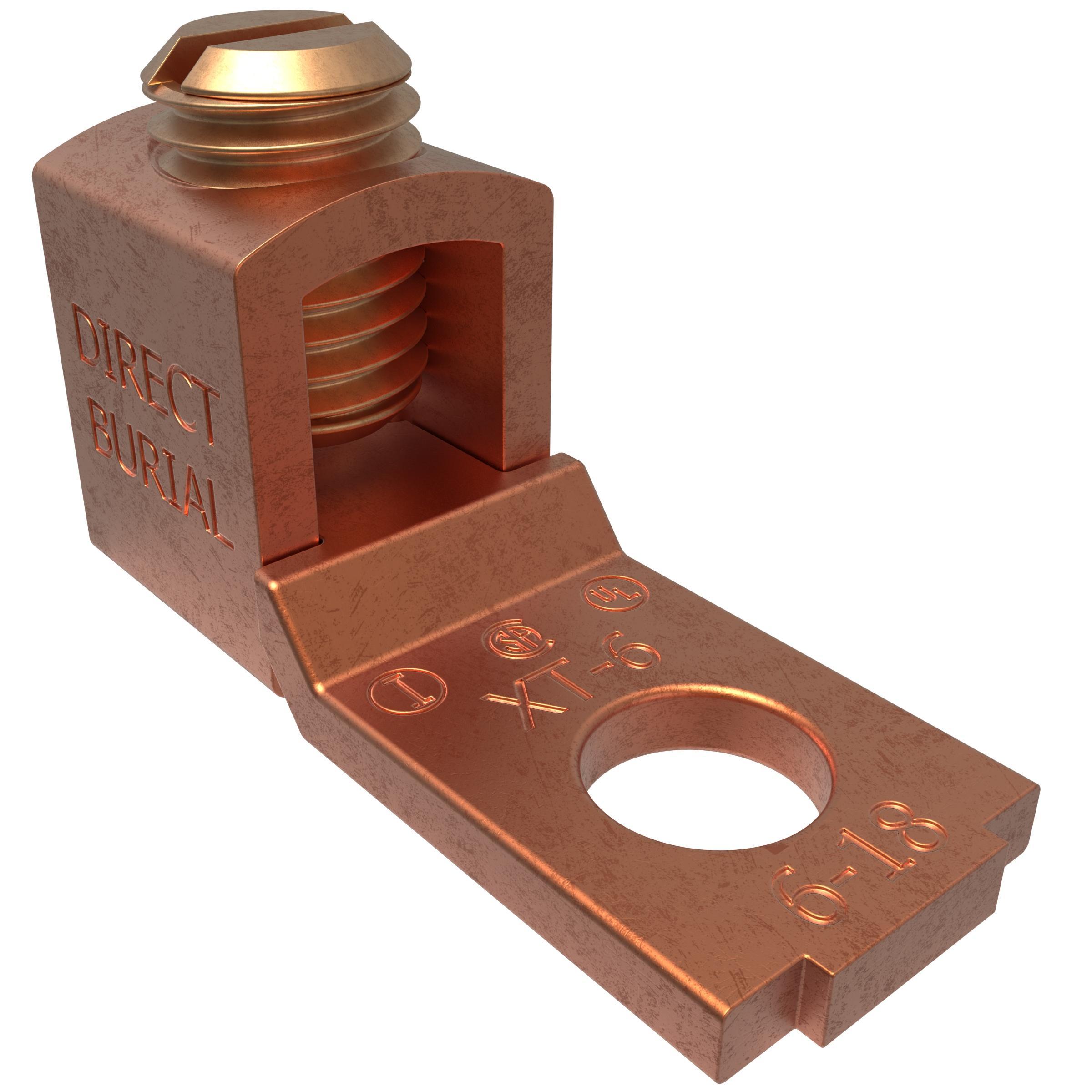

ILSCO XT-6DB ILSCO ClearChoice Mechanical Lug
Part Number # XT-6DB
SKU # 2263536
$1915.98 / 100Each
Ilsco XT-6DB Key Features
| Brand: | Ilsco |
|---|---|
| Part Number # : | XT-6DB |
| SKU #: | 2263536 |
| Conductor Size: | 14 to 6, 14 to 6 AWG |
| Conductor Type: | Copper |
| Dimensions: | 1 in L x 3/8 in W x 3/4 in H |
| Finish: | Electrolytic |
| Series: | XT Series |
| Specifications: | 13/64 in Dia Hole, 7/32 in Hole Center to Tongue End |
| Temperature Rating (Degrees F): | 90, 90 deg C |
| Tongue Size: | 0.5313 in L |
| Tongue Type: | Straight |
| Country of origin: | IN |
| Material: | Copper |
| Manufacturer Name: | ECM Industries |
| UNSPSC: | 39121408 |
| UPC: | 00783669957730 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1915.98 / 100Each
Quantity:
ILSCO XT-6DB ILSCO ClearChoice Mechanical Lug
Brand: Ilsco
Part Number: XT-6DB
ILSCO ClearChoice Mechanical Lug, Series: XT Series, Copper Conductor, 14 to 6 AWG Conductor, #10 Stud, 1 Bolt Holes, 0.5313 in L Tongue, Straight Tongue, 2000 VAC, Specifications: 13/64 in Dia Hole, 7/32 in Hole Center to Tongue End, 90 deg C, Copper, Electrolytic, 1 in L x 3/8 in W x 3/4 in H Dimensions
Additional Description: ILSC-XT-6DB CU MEC 6-14 13/64 B UL CSA DIR ECT BURIAL
Catalog Description: Copper Mechanical Lug, Conductor Range 6-14, 1 Port, 1 Hole, #10 Bolt Size, Direct Bury, UL, CSA
XT-6DB Application
For terminating connectorXT-6DB Item Features
- Manufactured from electrolytic copper tubing and strip stock
- Compact design
- Range taking for reduced inventories and flexibility
- Re-usable
- Saves space and reduces installation time
- Contact factory for listed wire combinations
- Suitable for use in circuits rated 35 kV or less, proper high voltage spacing and insulation techniques must be used
- For direct burial
- A - UL listed combinations (2) 14 AWG stranded or (2) AWG 12 stranded or (2) AWG 10 stranded or (2) 8 AWG stranded and (4) 16 AWG stranded conductor size
- B - UL listed combinations (2) 6 AWG stranded and (2) 8 AWG stranded conductor size
XT-6DB Standards
CSA File No. LR-29601|UL 486A/B/453G|E6207SKU #2263536Part Number #XT-6DBUNSPSC39121408UPC00783669957730
