Ideal 46-357
Part Number # 46-357
SKU # 2451883

46-357
Ideal 46-357
Part Number # 46-357
SKU # 2451883
IDEAL 46-357 Key Features
| Brand: | IDEAL |
|---|---|
| Part Number # : | 46-357 |
| SKU #: | 2451883 |
| Shrink Temperature: | 120 to 250 deg C |
| UNSPSC: | 39121723 |
| UPC: | 00783250463572 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Prices are in USD. Orders shipped to Canada may be subject to duties, taxes and brokerage fees, collected by the carrier on delivery.
Ideal 46-357
Brand: IDEAL
Part Number: 46-357

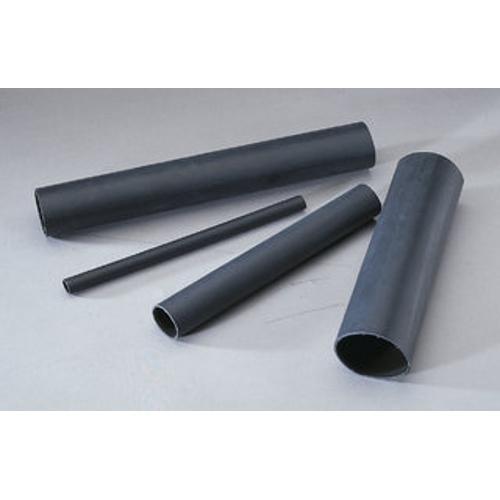

IDEAL Thermo-Shrink Heat Shrink Tubing, 600 V AC, 1-1/2 in ID Expanded, 0.47 in ID Recovered, Heavy Duty Wall, 0.16 in Wall Thickness Recovered, 2/0 AWG to 350 kcmil Wire, 3:1 Shrink Ratio, 12 in Length, -55 to 110 deg C, 120 to 250 deg C Shrink, Polyolefin, Black
Additional Description: IDL -46-357 THERMO-SHRINK HVY HT SHNK,12""L, 4/0-400MCM, 10/PK Tube,Ideal,Thermo-Shrink,Heavy-Wall Heat Shrink Tubing
Catalog Description: IDEAL, Heat Shrinkable Tube, Thermo-Shrink, Heavy-Wall Heat Shrink Tubing, Shrink Ratio: 3:1, Thickness: 0.160 IN, Length: 12 IN, Volume Resistivity: 1013 OHM -CM MIN, Dielectric Strength: 500 V/MIL (20 KV MINT), Continuous Operating Temperature: -55 To 110 DEG C, Minimum Shrink Temperature: 120 - 250 DEG C (200 DEG C Recommended), Low Temperature Flexibility: -55 DEG C, Heat Shock: No Cracks, Flowing Or Dripping (4 HR At 225 DEG C), Water Absorption: 0.5 PCT, Heat Aging: 500 PCT (168 HR At 175 DEG C Tensile Strength Elongation), Cable Range: 2/0 AWG - 350 MCM, Nominal Recoveredi.d. (max.): 0.470 IN, Expanded I.d. (min.): 1.500, Copper Corrosion: Non-Corrosive, Ultimate Elongation: 600 PCT Min., Model: TS-46-1500
46-357 Application
Underground and Underwater Applications46-357 Item Features
- TS-46 irradiated cross-linked polyolefin with 3:1 standard shrink ratio
- Maximum flame retardancy
- Rated for 600V, 90C continuous use
46-357 Standards
ARRA Compliant|Buy American Act Compliant|RoHS Compliant|UL 486D|CSA C22.2 No. 198.2|ANSI C119.1|Western Underground Guide No. 2.4/2.5|MIL-DTL-23053/15|IEEE 383 Vertical Flame Test|ANSI C37.20.2|ICEA S-19-8SKU #2451883Part Number #46-357UNSPSC39121723UPC00783250463572
Image provided may only be a representation of final product and may include optional equipment
