Part Number # LC4535LA
SKU # 2450128
Image Disclaimers Message
LC4535LA

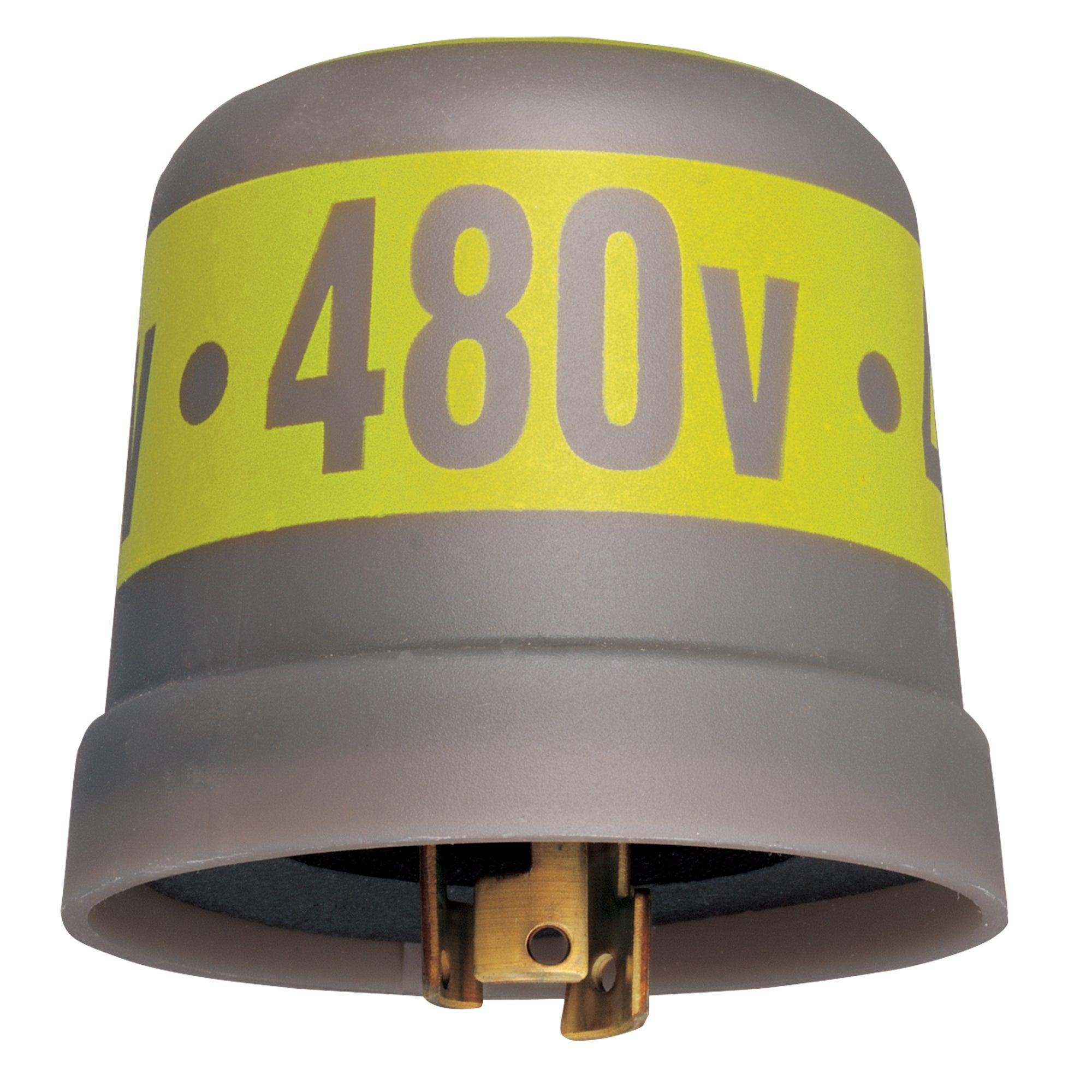

Intermatic LC4535LA
Part Number # LC4535LA
SKU # 2450128
$398.52 / 12Each
Typical price:$673.20 / Each
Intermatic LC4535LA Key Features
| Brand: | Intermatic |
|---|---|
| Part Number # : | LC4535LA |
| SKU #: | 2450128 |
| Amperage Rating: | 15 A |
| Arrester: | Spark Gap |
| Contact Form: | SPST |
| Dimensions: | 3 in Dia x 2-3/4 in H |
| Environmental Conditions: | -20 to 104 deg F |
| Frequency Rating: | 50/60 Hz |
| Operating Cycles: | 3650 Cycles |
| Sensor Type: | Cadmium Sulfide |
| Series: | LC4500 |
| Timing Range: | 30 to 90 s |
| Type: | Locking Mounting |
| Color: | Gray/Yellow |
| Country of origin: | MX |
| Material: | Polypropylene |
| Mounting type: | Fixture, Twist-Lock |
| Sensitivity: | 0.5 FC ON, 15 FC OFF |
| Manufacturer Name: | Intermatic |
| UNSPSC: | 39121524 |
| UPC: | 00078275002685 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$398.52 / 12Each
Typical price:$673.20 / Each
Quantity:
- Intermatic Thermal Photocontrol, Locking Mounting, Series: LC4500, 480 V AC, 15 A, 50/60 Hz Frequency, 7200 W Tungsten, 4000 VA Ballast, SPST Contact Form, Spark Gap Arrester, 30 to 90 s Timing, Cadmium Sulfide Sensor, 0.5 FC ON, 15 FC OFF Sensitivity, Environmental Conditions: -20 to 104 deg F, 3650 Cycles Operating Cycles, Fixture Mounting, Polypropylene, Gray/Yellow, 3 in Dia x 2-3/4 in H Dimensions
LC4535LA Application
For dusk-to-dawn lighting controlLC4535LA Item Features
- Mechanical bimetal switch with Cadmium Sulfide photocell
- Integral high impact thermoplastic housing
- Locking type plug for quick installation and changeover
- Delay feature prevents unwanted OFF switching
LC4535LA Standards
UL Recognized, CSA, Title CA 20 Listed, California Title 24 CompliantSKU #2450128Part Number #LC4535LAUNSPSC39121524UPC00078275002685
