Part Number # T1975
SKU # 2453850
Image Disclaimers Message

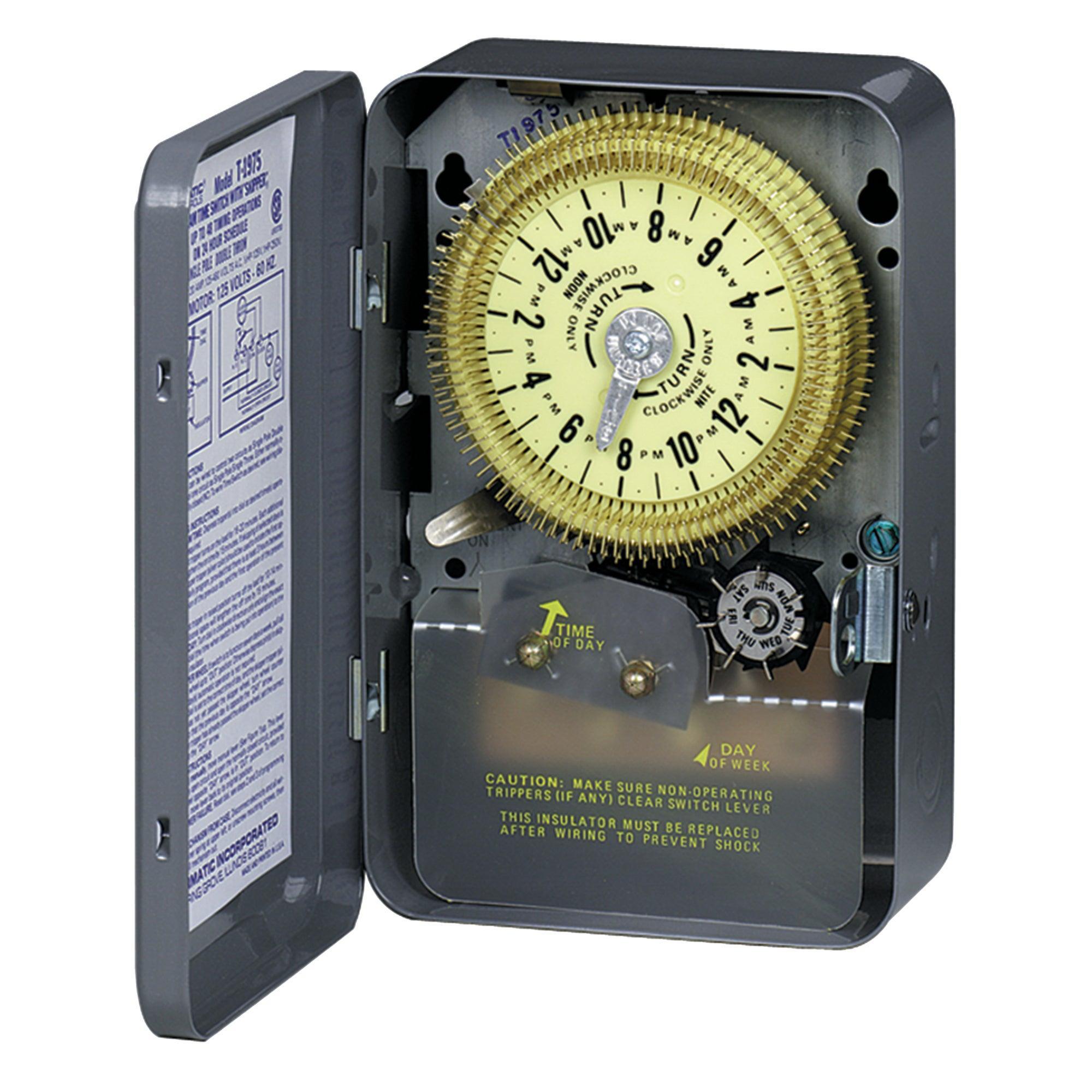

T1975
Intermatic T1975
Part Number # T1975
SKU # 2453850
$236.00 / Each
Typical price:$476.73 / Each
Intermatic T1975 Key Features
| Brand: | Intermatic |
|---|---|
| Part Number # : | T1975 |
| SKU #: | 2453850 |
| Amperage Rating: | 20 A |
| Contact Form: | 1CO 1 Form C SPDT |
| Dimensions: | 7-7/8 in H x 5-1/8 in W x 3-7/16 in D |
| Enclosure Type: | NEMA 1 |
| Horsepower: | 1 hp |
| Number of Poles: | 1 |
| Series: | T1970 |
| Temperature Rating (Degrees F): | -40 to 130 deg F |
| Time Setting: | 15 min to 24 hr |
| Type: | Electro Mechanical |
| Country of origin: | MX |
| Mounting type: | Wall |
| Manufacturer Name: | Intermatic |
| UNSPSC: | 39122208 |
| UPC: | 00078275192010 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$236.00 / Each
Typical price:$476.73 / Each
Quantity:
- Intermatic Timer Switch, Electro Mechanical, Series: T1970, 125 V AC, 20 A, 1 hp, 1 Pole, 1CO 1 Form C SPDT Contact Form, 15 min to 24 hr Time Setting, NEMA 1 Enclosure, -40 to 130 deg F, Wall Mounting, 7-7/8 in H x 5-1/8 in W x 3-7/16 in D Dimensions
T1975 Application
Indoor ApplicationsT1975 Item Features
- Provides up to 96 operations (48 ON/48 OFF) every 24 hr
- Models with skipper wheel allow for operations to be omitted on selected days of the week
- 15 min intervals
- Captive trippers slide in and out of dial for fast, accurate setting
T1975 Standards
cCSAus CertifiedSKU #2453850Part Number #T1975UNSPSC39122208UPC00078275192010
