Brand: LAPP
11285000

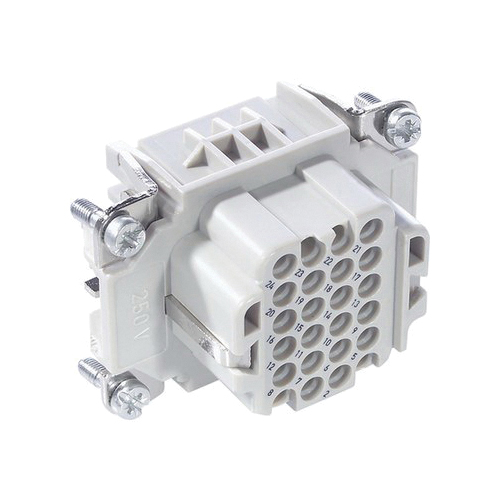

LAPP 11285000 EPIC Rectangular Plug
Part Number # 11285000
SKU # 2364492
$43.58 / Each
Typical price:$57.53 / Each
LAPP 11285000 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 11285000 |
| SKU #: | 2364492 |
| Connector Type: | Male |
| Dimensions: | 50.5 mm L x 35 mm W x 34 mm H |
| Number of Positions: | 24PE |
| Series: | HDD |
| Temperature Rating (Degrees F): | -40 to 100, -40 to 100 deg C |
| Termination Type: | Crimp |
| Wire Size: | 0.14 to 2.5, 0.14 to 2.5 sq-mm |
| Contact material: | Copper alloy |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 39121410 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$43.58 / Each
Typical price:$57.53 / Each
Quantity:
- EPIC Rectangular Plug, Series: HDD, 24PE Positions, 0.14 to 2.5 sq-mm Wire, 250/600 V AC, Male Connector, Crimp Termination, <3 mOhm Contact Resistance, Copper Alloy Contact, -40 to 100 deg C, 50.5 mm L x 35 mm W x 34 mm H Dimensions
11285000 Application
Mechanical Engineering, Plastics Industry and Event Equipment11285000 Item Features
- The connector insert with the highest density of pins for compact connectors
- Highest packing density for compact connectors
- The H-DD series with machined contacts is designed for a high number of pins in a confined space
- Smaller housing design can be chosen
- 2 deg pollution
- 100 Cycle plug
- 8.5/10 A rated
- 2.5 kV rated impulse
- Hard silver gold plated copper alloy
11285000 Standards
CSA Certified|UR Listed|VDE Certified|UL Listed|DIN Standards, ETIM 5.0 Class-ID EC000438SKU #2364492Part Number #11285000UNSPSC39121410UPC
