LAPP 0027952 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 0027952 |
| SKU #: | 2465807 |
| Outside Diameter: | 0.469 in |
| Series: | FD 796 CP |
| Type: | Continuous Halogen Free High Acceleration Industrial Flexible |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 26121604 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LAPP USA 0027952
Brand: LAPP
Part Number: 0027952

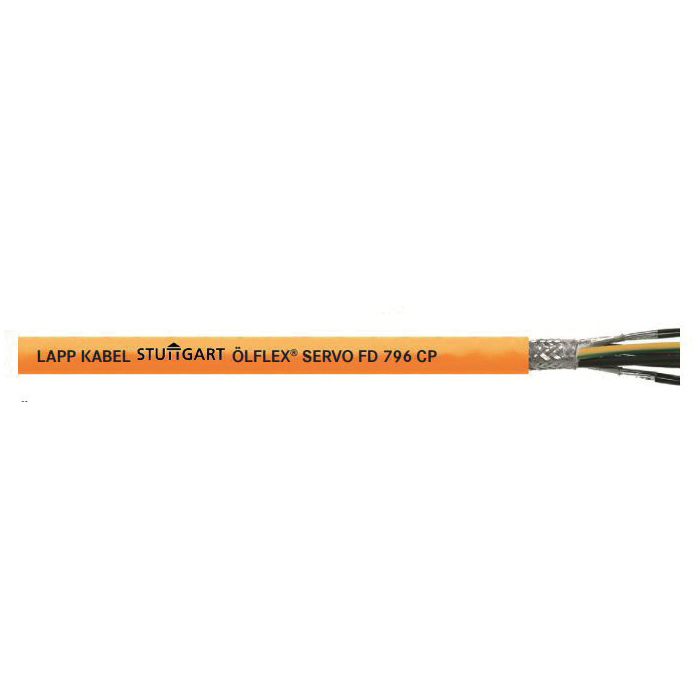

OLFLEX® Flex Communication Cable, Continuous Halogen Free High Acceleration Industrial, Series: FD 796 CP, 1000 VAC, 4 Conductors, Bare Copper Conductor, 12 AWG Conductor, 0.469 in Outside Dia, Polypropylene Insulation, Polyurethane, Orange, -40 to 80 deg C
Additional Description: LAPP-0027952 (M) LFLEX SERVO FD 796 CP 4G4 UPDATE PRICING & REMOVE THIS MESSAGE
0027952 Application
Production Lines and Robotic Systems0027952 Item Features
- Abrasion, cut and oil-resistant
- High dynamic performance in cable chains - acceleration up to 50 m/sq-s, travel speed up to 5 m/s travel lengths up to 100 m
- Motor connections between servo controllers and motors on industrial machinery
- In cable chains or moving machine parts and assembly handling
- Overall non woven wrapping, travel copper braid (85% coverage)
0027952 Standards
CE Certified|RoHS Compliant|cUR Listed|UR Listed|FP 2015|VDE CertifiedSKU #2465807Part Number #0027952UNSPSC26121604UPC
Image provided may only be a representation of final product and may include optional equipment
