Part Number # 10400300
SKU # 2447126
Image Disclaimers Message
Brand: LAPP
10400300
LAPP USA 10400300
Part Number # 10400300
SKU # 2447126
$57.59 / Each
Typical price:$76.02 / Each
LAPP 10400300 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 10400300 |
| SKU #: | 2447126 |
| Finish: | Silver Plated |
| Number of Positions: | 24 |
| Series: | HBE |
| Specifications: | 500/600 V AC, 16 A, 500/600 VAC, 16 A |
| Suitable For Use With: | Industrial Connector, EPIC Quick and Easy Mounting System Housing |
| Temperature Rating (Degrees F): | -40 to 100 deg C |
| Wire Size: | 0.5 to 2.5 sq-mm |
| Connection type: | Cage Clamp/Male |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 39121402 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$57.59 / Each
Typical price:$76.02 / Each
Quantity:

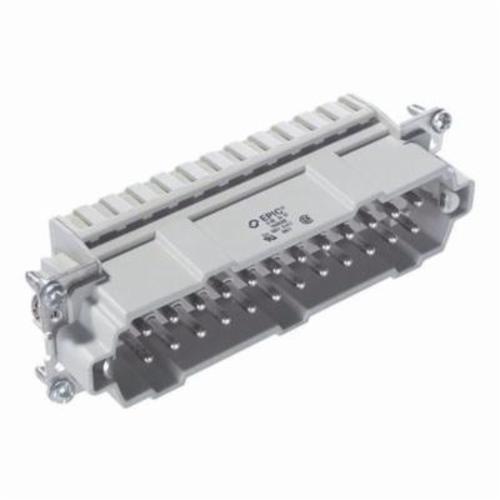

- EPIC Insert, Series: HBE, 24 Positions, 0.5 to 2.5 sq-mm Wire, Cage Clamp/Male Connection, For Use With: Industrial Connector, EPIC Quick and Easy Mounting System Housing, -40 to 100 deg C, Specifications: 500/600 V AC, 16 A, Silver Plated
10400300 Application
For mechanical engineering, plastics industry, light and sound technology applications10400300 Item Features
- The connector insert with spring-type terminal is ideal for mechanical engineering, is highly reliable and suitable for higher voltages and currents
- Multifunctional insert for versatile applications
- Standard inserts with screw, crimp cage clamp and push-in termination
- The EPIC H-BE series is suitable for applications that require a reliable connection when working with high voltages and currents
- 6 kV rated impulse voltage
- Pollution degree is 3
- Copper alloy contact
- UL94 V-2 flammability
- Temperature-resistant, robust, assembly time, automation and flat installation, industrial machinery and plant engineering
- 7 mm stripping length
- 100 cycle of mechanical operation
- 1.5 - 4 m Ohm contact resistance
10400300 Standards
UL File No. E75770 Listed|CSA Certified|IEC|ETIM 5.0 Class-ID EC000438|UR CertifiedSKU #2447126Part Number #10400300UNSPSC39121402UPC
