Part Number # 10431000
SKU # 2449697
Image Disclaimers Message
Brand: LAPP
10431000
LAPP USA 10431000
Part Number # 10431000
SKU # 2449697
$7.27 / Each
Typical price:$9.59 / Each
LAPP 10431000 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 10431000 |
| SKU #: | 2449697 |
| Finish: | Silver Plated |
| Number of Positions: | 4 |
| Series: | HA Series |
| Specifications: | 400/600 V AC, 23/10 A, 400/600 VAC, 23/10 A |
| Suitable For Use With: | Industrial Connector, EPIC ULTRA HA 3 TG, EPIC ULTRA HA 3 TS, EPIC ULTRA HA 3 TBF, EPIC ULTRA HA 3 AB, EPIC ULTRA HA 3 AGS Housing |
| Temperature Rating (Degrees F): | -40 to 100 deg C |
| Wire Size: | 0.5 to 2.5 sq-mm |
| Connection type: | Male Screw |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 39121412 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$7.27 / Each
Typical price:$9.59 / Each
Quantity:

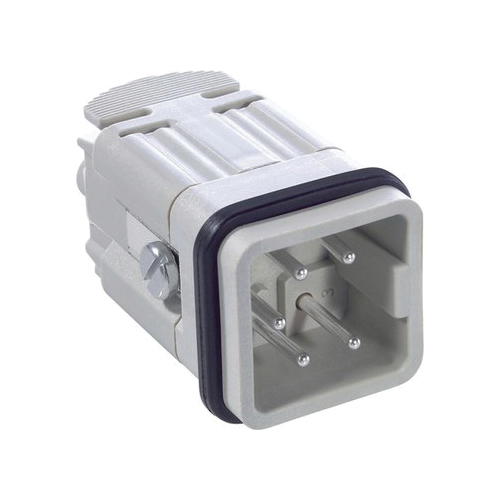

- EPIC Insert, Series: HA Series, 4 Positions, 0.5 to 2.5 sq-mm Wire, Male Screw Connection, For Use With: Industrial Connector, EPIC ULTRA HA 3 TG, EPIC ULTRA HA 3 TS, EPIC ULTRA HA 3 TBF, EPIC ULTRA HA 3 AB, EPIC ULTRA HA 3 AGS Housing, -40 to 100 deg C, Specifications: 400/600 V AC, 23/10 A, Silver Plated
10431000 Application
For railway, apparatus/vehicle construction, control engineering, machine and equipment manufacturing applications10431000 Item Features
- The robust insert has a screw connection that is easy to operate and can be used, for example, in control systems
- Insert for three-phase current application with neutral conductor
- Easy to assemble due to straight entry of conductors
- Requirement sets R22 and R23
- Hazard level HL1, HL2 and HL4
- The small H-A 3/H-A 4 are used whenever there is minimal space
- Easy to service screw connection
- Easy cable connection with strait cable entry in the contacts
- 4 kV rated impulse voltage
- Pollution degree is 3
- Copper alloy contact
- Space requirement, assembly time, rail, industrial machinery and plant engineering
- 6 mm stripping length
- 100 cycle of mechanical operation
- For use with PEW 8.186 crimping Pliers, Kraftform adjustable torque screwdriver/Kraftform Kompakt set tools
- 1.5 - 4 m Ohm contact resistance
10431000 Standards
UL File No. E75770 Listed|CSA Certified|IEC|VDE-REG. no B437|EN 45545-2|ETIM 5.0 Class-ID EC000438|cURUS CertifiedSKU #2449697Part Number #10431000UNSPSC39121412UPC
