Part Number # 10440000
SKU # 2459438
10440000
LAPP USA 10440000
Part Number # 10440000
SKU # 2459438
$92.20 / 5Each
Typical price:$121.73 / Each
LAPP 10440000 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 10440000 |
| SKU #: | 2459438 |
| Connector Type: | Male |
| Dimensions: | 56.6 mm L x 29 mm W x 23 mm H |
| Number of Positions: | 10 |
| Series: | HA Series |
| Temperature Rating (Degrees F): | -40 to 100 deg C |
| Termination Type: | Threaded |
| Wire Size: | 0.5 to 2.5 sq-mm |
| Contact material: | Copper alloy |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$92.20 / 5Each
Typical price:$121.73 / Each
Quantity:
- EPIC Rectangular Plug, Series: HA Series, 10 Positions, 0.5 to 2.5 sq-mm Wire, 250/600 V AC, Male Connector, Threaded Termination, 1.5 to 4 mOhm Contact Resistance, Copper Alloy Contact, -40 to 100 deg C, 56.6 mm L x 29 mm W x 23 mm H Dimensions
10440000 Application
Control Engineering, Machine and Equipment Manufacturing10440000 Item Features
- The narrow standard insert can be easily connected with a bolt and can be used universally for conducting current and voltage
- Slim standard insert, easy to connect by screw
- Universal for current and voltage transmission
- Easy to service screw connection
- 3 deg pollution
- 100 Cycle plug
- 14/16 A rated
- 8 mm stripping length
- 4 kV rated impulse
- Hard silver plated copper alloy
10440000 Standards
cRUus Certified|VDE Certified|UL Listed|DIN Standards|ETIM 5.0 Class-ID EC000438SKU #2459438Part Number #10440000UNSPSC0UPC

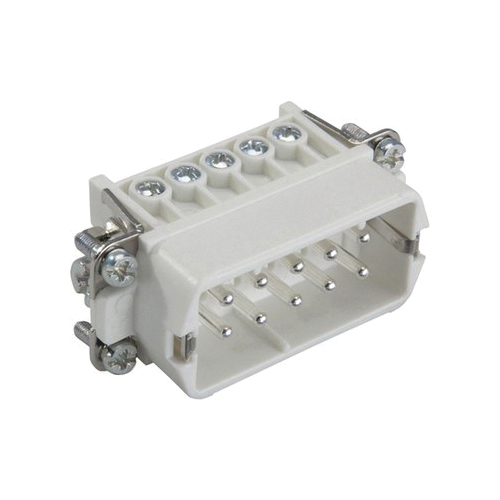

Image provided may only be a representation of final product and may include optional equipment
