Part Number # 53112036
SKU # 2459629
53112036
LAPP USA 53112036
Part Number # 53112036
SKU # 2459629
$814.50 / 25Each
Typical price:$1075.20 / Each
LAPP 53112036 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 53112036 |
| SKU #: | 2459629 |
| Cable Diameter: | 0.236 to 0.512 in |
| Finish: | Nickel Plated |
| Series: | MSR-NPT |
| Thread Size: | 3/4 in NPT |
| Type: | Reducer Bushing Strain Relief |
| Material: | Brass |
| Manufacturer Name: | Lapp Group |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$814.50 / 25Each
Typical price:$1075.20 / Each
Quantity:

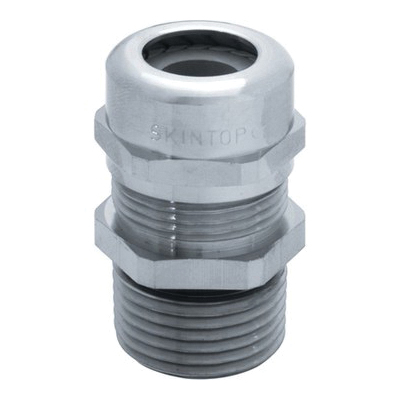

- OLFLEX SKINTOP Cable Gland, Reducer Bushing Strain Relief, Series: MSR-NPT, 3/4 in NPT, 0.236 to 0.512 in Cable Dia, 0.591 in Thread Length, Brass, Nickel Plated
53112036 Application
Measurement, Automation, Control and Robotics53112036 Item Features
- SKINTOP MS-NPT/MSR-NPT is a superior quality, liquid-tight, metallic cable gland intended for applications where ruggedness and durability are required
- These cable glands are suitable for a wide range of applications, from manufacturing machinery to measurement and control equipment
- Suitable for use in areas with high demands on mechanical and chemical stability
- The heavy duty SKINTOP design provides great pullout strength and very reliable strain relief
- Extended temperature range due to the nickel-plated brass body
- Generous high-quality neoprene bushing and perbunan O-ring provide a liquid-tight and dust-proof hermetic seal
- Polyamide insert
- NBR O-ring
- CR bushing
- NEMA 6/6P/IP68
- -25 to 100 deg C dynamic/-40 to 100 deg C static temperature
- 1.753 in OAL
- 1.142 in SW wrenching flat
53112036 Standards
UL Listed|RU Listed|CSA Certified|CE Certified|RoHS CompliantSKU #2459629Part Number #53112036UNSPSC0UPC
Image provided may only be a representation of final product and may include optional equipment
