LAPP 53112882 Key Features
| Brand: | LAPP |
|---|---|
| Part Number # : | 53112882 |
| SKU #: | 2466986 |
| Cable Diameter: | 5 to 9 mm |
| Series: | CLICK |
| Type: | Standard Strain Relief |
| Material: | Special Polyamide |
| UNSPSC: | 0 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LAPP USA 53112882
Brand: LAPP
Part Number: 53112882

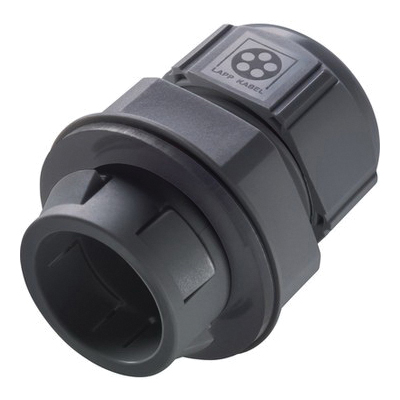

OLFLEX® SKINTOP® Cable Gland, Standard Strain Relief, Series: CLICK, M16, 5 to 9 mm Cable Dia, 0.315 in Thread Length, Special Polyamide, Black
Additional Description: LAPP-53112882 (M) SKINTOP CLICK 16 RAL 9005 BK UPDATE PRICING & REMOVE THIS MESSAGE
53112882 Item Features
- SKINTOP CLICK is an innovative cable insertion system that provides fast, highly flexible assembly
- Easy snap-in-place installation results in fixed, centered, strain relief with maximum protection in seconds
- Mounting hole is based on metric thread
- Up to 70% installation time savings due to innovative CLICK system
- Ideal for hard-to-reach dual wall enclosures and limited access spaces
- Reduced inventory as no locknuts are required
- The heavy duty SKINTOP design provides great pullout strength and very reliable strain relief
- Superior integrated locking mechanism includes an internal ratchet for vibration-proof protection
- RAL 9005 black
- NEMA 6/6P/IP68
- -20 to 100 deg C dynamic/-40 to 100 deg C static temperature
- 1.654 in OAL
- 0.748/0.866 in SW1/SW2 wrenching flat
53112882 Standards
UL Recognized|CSA Certified|RoHS Compliant|UR Listed|CE Certified|cRUus Listed|VDE CertifiedSKU #2466986Part Number #53112882UNSPSC0UPC
