Part Number # 49F64-H
SKU # 2383624
49F64-H

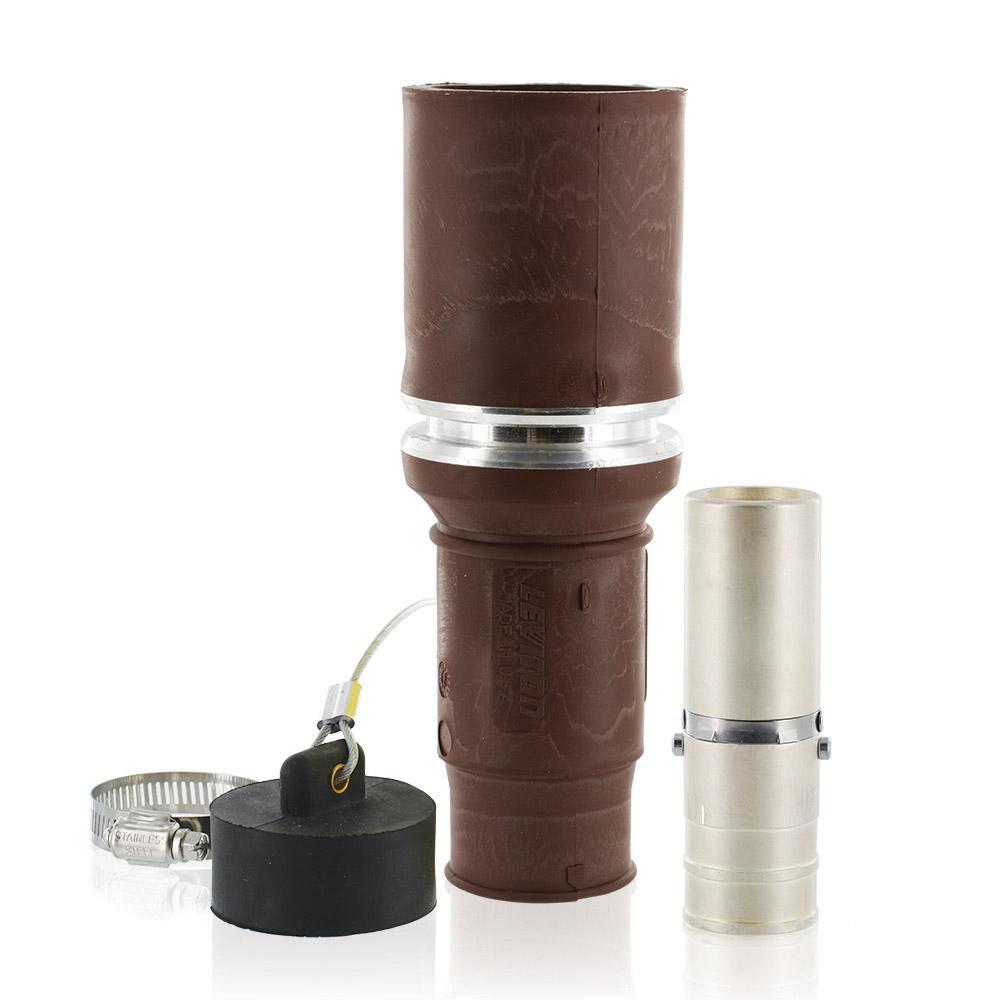

LEVITON 49F64-H Rhino-Hide Complete Female Connector
Part Number # 49F64-H
SKU # 2383624
LEVITON 49F64-H Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 49F64-H |
| SKU #: | 2383624 |
| Amperage Rating: | 1009, 1009 A |
| Dimensions: | 1-1/2 in Dia x 4-3/4 in L |
| NEMA Rating: | NEMA 3R |
| Series: | 49 Series |
| Specifications: | 1-Phase, 1-Wire |
| Temperature Rating (Degrees F): | -60 to 135, -60 to 135 deg C |
| Type: | 1-Pole |
| Wire Size: | 646, 646 kcmil |
| Connection type: | Crimp/Solder |
| Contact material: | Silver Plated High Conductivity Alloy |
| Country of origin: | MX |
| Housing material: | Santoprene TPV |
| Mounting type: | Surface |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477281321 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LEVITON 49F64-H Rhino-Hide Complete Female Connector
Brand: LEVITON
Part Number: 49F64-H
Leviton Rhino-Hide Complete Female Connector, 1-Pole, Series: 49 Series, 1000 VAC, 1009 A, 646 kcmil Wire, Crimp/Solder, Silver Plated High Conductivity Alloy Contact, Santoprene TPV Housing, NEMA 3R, Surface Mount, 1-Phase, 1-Wire, -60 to 135 deg C, Brown, 1-1/2 in Dia x 4-3/4 in L
Additional Description: LVTN-49F64-H BR HIGH AMP CPLT FEM PLUG 646MCM
Catalog Description: Complete Female Plug (Insulator, Female Contact, & Dust Cap), Crimped, 646 MCM Cable, 1135Amp Max., 1000Volt, 49 Series, Industrial Grade, Rhino-Hide Single Pole Connector - BROWN
49F64-H Application
Commercial and Industrial Applications49F64-H Includes
Insulator, Female Contact, Dust Cap49F64-H Item Features
- Connectors mate with other manufacturers high amperage 1-pole connectors and receptacles for fast, easy change out
- UV stable, polyolefin based santoprene TPV housings resist fading and cracking for greater service life
- Contacts machined from high conductivity copper alloy and silver plated for corrosion resistance and superior conductivity
- Color coded, metal in-line coupler prevents separation of connectors
- Attach stripped cable to male or female contact with standard crimp tools
- Color coded connector insulator for quick, visual identification of circuit and phase connections
49F64-H Standards
cULus Recognized|UL 486|CE Certified49F64-H Warranty
2 Years LimitedSKU #2383624Part Number #49F64-HUNSPSC39121406UPC00078477281321
Image provided may only be a representation of final product and may include optional equipment
