Part Number # 49FR2-XR
SKU # 2383628
49FR2-XR

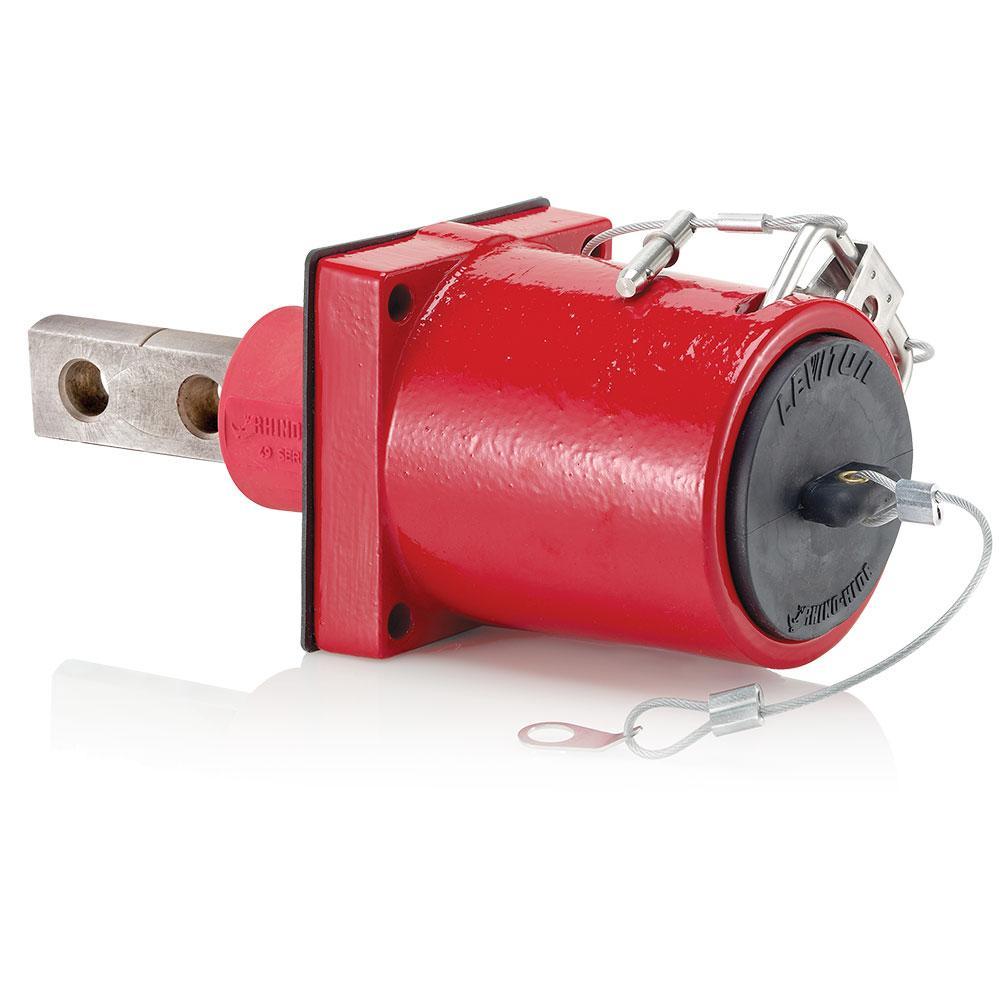

LEVITON 49FR2-XR Rhino-Hide Double Pole Receptacle
Part Number # 49FR2-XR
SKU # 2383628
LEVITON 49FR2-XR Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | 49FR2-XR |
| SKU #: | 2383628 |
| Amperage Rating: | 1135, 1135 A |
| Dimensions: | 3.91 in Dia x 4.98 in L |
| Finish: | Powder Coated |
| NEMA Rating: | NEMA 3R |
| Series: | 49 Series |
| Specifications: | 1-Wire, 1-Phase |
| Temperature Rating (Degrees F): | -60 to 135, -60 to 135 deg C |
| Type: | 45 deg Female |
| Wire Size: | 313 to 777, 313 to 777 kcmil |
| Connection type: | Double Hole Busbar |
| Contact material: | Alloy |
| Country of origin: | MX |
| Housing material: | Cast Aluminum |
| Mounting type: | Panel |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39121406 |
| UPC: | 00078477386651 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
LEVITON 49FR2-XR Rhino-Hide Double Pole Receptacle
Brand: LEVITON
Part Number: 49FR2-XR
Leviton Rhino-Hide Double Pole Receptacle, 45 deg Female, Series: 49 Series, 1000 VAC, 1135 A, 313 to 777 kcmil Wire, Double Hole Busbar Connection, Alloy Contact, Cast Aluminum Housing Material, NEMA 3R, Panel Mounting, Specifications: 1-Wire, 1-Phase, -60 to 135 deg C, Red, Powder Coated, 3.91 in Dia x 4.98 in L Dimensions
Additional Description: LVTN-49FR2-XR RD CPLT FEM REC DBL HOLE BUS BAR
Catalog Description: 49 Series Rhino-Hide, Double Pole, Female, 45 Degree Receptacle, Double Hole Bus Bar, 313MCM-777MCM Cable, 1000-Volt, 1135A, Red
49FR2-XR Application
Commercial, Navy Shipbuilding, Sports, Entertainment, Movie Industry, Welding, Construction Sites, Theme Parks, Carnival Equipment, Repair, Concert Venues, Convention Centers, Petrochemical, Manufacturing Plant Turnarounds, Motor, Generator Splices, Numerous Other Temporary Power Applications, Mining Operations and Industrial Applications49FR2-XR Includes
Clevis Pin49FR2-XR Item Features
- Color coding the devices minimizes errors due to miswiring and saves time during assembly and troubleshooting, especially on dusty and dirty oil rigs
- Ideal for replacement
- Captive stainless steel clevis bracket
- Detent pin allows clevis pin to stay secure in either open or closed position
- TPV cap prevents contamination when receptacle is not in use
- Stainless steel clevis bracket accepts industry standard lockout
49FR2-XR Standards
UL Listed|cULus ListedSKU #2383628Part Number #49FR2-XRUNSPSC39121406UPC00078477386651
Image provided may only be a representation of final product and may include optional equipment
