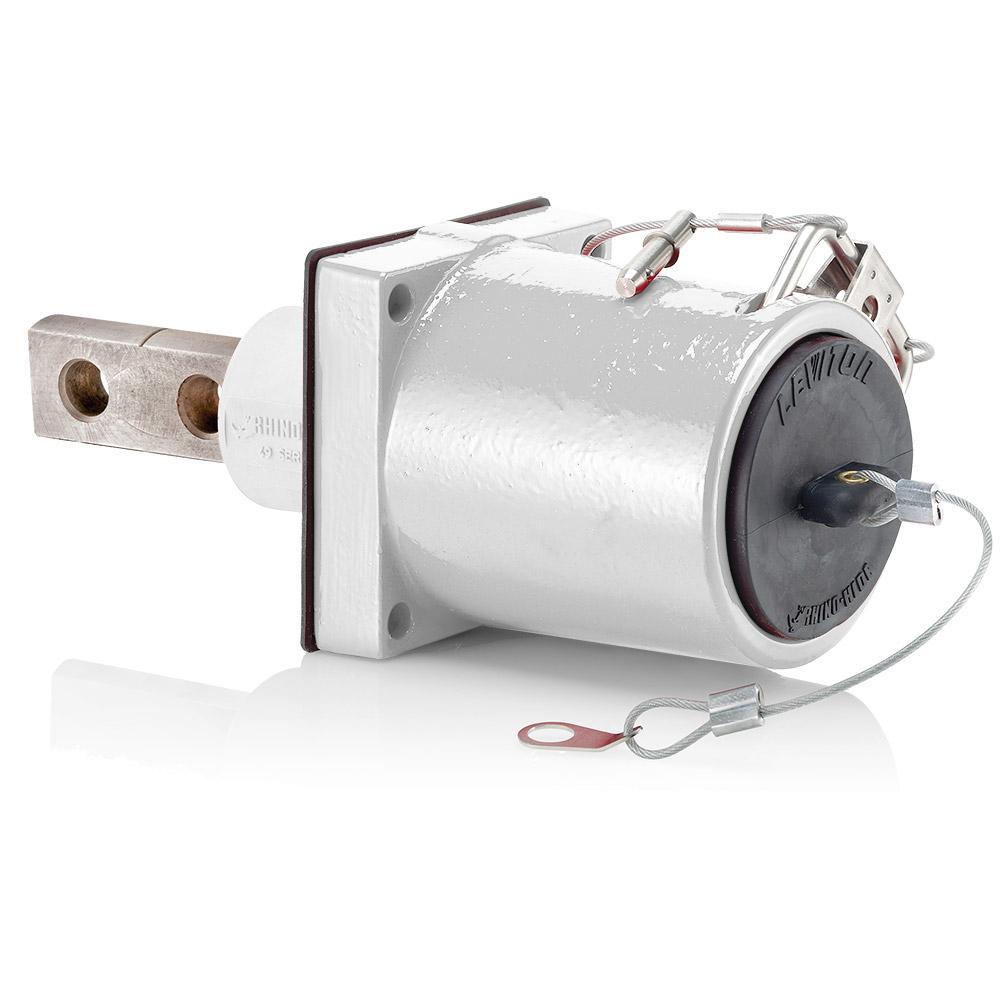

LEVITON 49FR2-XW Rhino-Hide Double Pole Receptacle
Image Disclaimers Message
LEVITON 49FR2-XW Rhino-Hide Double Pole Receptacle
LEVITON 49FR2-XW Rhino-Hide Double Pole Receptacle
Part #:49FR2-XW
SKU #: 2383627
Key Features
Part #:49FR2-XW
SKU #: 2383627
Brand: LEVITON
Amperage Rating: 1135, 1135 A
Dimensions: 3.91 in Dia x 4.98 in L
Finish: Powder Coated
NEMA Rating: NEMA 3R
Series: 49 Series
- Color coding the devices minimizes errors due to miswiring and saves time during assembly and troubleshooting, especially on dusty and dirty oil rigs
- Ideal for replacement
- Captive stainless steel clevis bracket
- Detent pin allows clevis pin to stay secure in either open or closed position
- TPV cap prevents contamination when receptacle is not in use
- Stainless steel clevis bracket accepts industry standard lockout
LEVITON 49FR2-XW Rhino-Hide Double Pole Receptacle
Leviton Rhino-Hide Double Pole Receptacle, 45 deg Female, Series: 49 Series, 1000 VAC, 1135 A, 313 to 777 kcmil Wire, Double Hole Busbar Connection, Alloy Contact, Cast Aluminum Housing Material, NEMA 3R, Panel Mounting, Specifications: 1-Wire, 1-Phase, -60 to 135 deg C, White, Powder Coated, 3.91 in Dia x 4.98 in L Dimensions
Additional Description: LVTN-49FR2-XW WH CPLT FEM REC DBL HOLE BUS BAR
Catalog Description: 49 Series Rhino-Hide, Double Pole, Female, 45 Degree Receptacle, Double Hole Bus Bar, 313MCM-777MCM Cable, 1000-Volt, 1135A, White
