Part Number # MS602-BW
SKU # 2302379
Image Disclaimers Message
Brand: LEVITON
MS602-BW

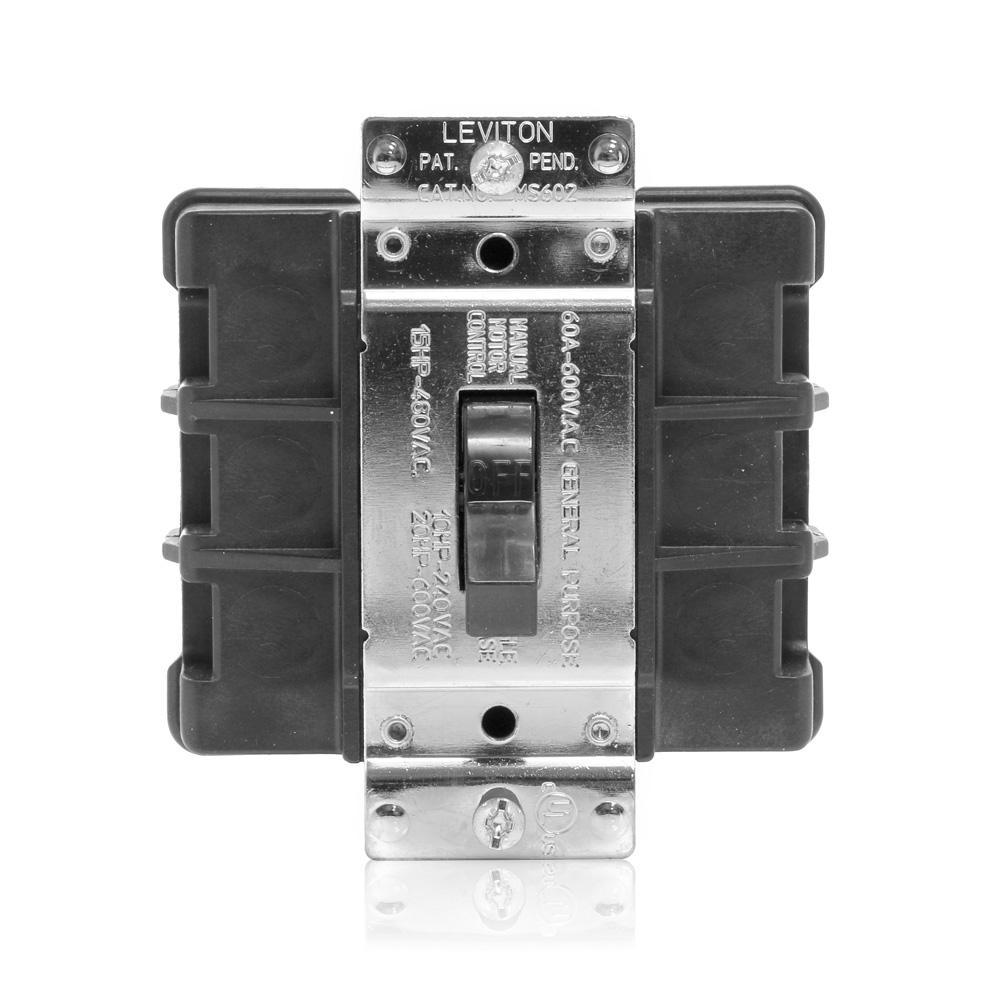

LEVITON MS602-BW AC Motor Starter Switch
Part Number # MS602-BW
SKU # 2302379
$100.63 / Each
Typical price:$204.17 / Each
LEVITON MS602-BW Key Features
| Brand: | LEVITON |
|---|---|
| Part Number # : | MS602-BW |
| SKU #: | 2302379 |
| Actuator: | Standard Toggle |
| Amperage Rating: | 60 A |
| Connection: | Screw |
| Contact Configuration: | DPST |
| Contact Rating: | 60 A at 600 V AC, 60 A at 600 VAC |
| Dimensions: | 3.43 in W x 2.67 in D x 3.75 in H, 3.75 in H x 3.43 in W x 2.67 in D |
| Enclosure: | NEMA WD-1/WD-6 |
| Environmental Conditions: | -40 to 65 deg C Operating Temperature |
| Number of Poles: | 2 |
| Operating Cycles: | 6000, 6000 Cycles |
| Terminal Type: | Back Wired/Screw |
| Type: | Industrial Grade Manual Non-Grounding |
| Color: | Black |
| Country of origin: | MX |
| Material: | Polyester |
| Manufacturer Name: | Leviton |
| UNSPSC: | 39122211 |
| UPC: | 00078477073735 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$100.63 / Each
Typical price:$204.17 / Each
Quantity:
- Leviton, MS602-BW, AC Motor Starter Switch, Industrial Grade Manual Non-Grounding, 600 V AC, 60 A, 20 hp Power, DPST Contact Configuration, 60 A at 600 V AC Contact, 2 Pole, Standard Toggle Actuator, Screw Connection, NEMA WD-1/WD-6 Enclosure, 6000 Cycles Operating Cycles, Polyester, Black, Environmental Conditions: -40 to 65 deg C Operating Temperature, 3.43 in W x 2.67 in D x 3.75 in H Dimensions
MS602-BW Application
Commercial ApplicationsMS602-BW Item Features
- All molded parts are thermoplastic to resist impacts, chemicals, temperature, tracking and arcing
- Cam driven mechanism enhances fast make/slow break
- Silver alloy contacts for maximum conductivity and service life
- Insulating barrier between terminals provide isolation between phases
- Nickel plated brass mounting strap, terminal screw and external clamps for superior strength and corrosion resistance
- Oversized toggle provides positive actuation, even with gloved hand
- https://www.youtube.com/embed/Ig6qsVZWsJs
MS602-BW Standards
ANSI C73|cUL per CSA C22.2 No. 111 (File E63969) Certified|NOM-ANCE Certified|UL 60947-4-1 Supersedes UL 508|UL94 V-2 Flammability RatingSKU #2302379Part Number #MS602-BWUNSPSC39122211UPC00078477073735
