Part Number # 104280
SKU # 2458649
104280
LUTZE 104280
Part Number # 104280
SKU # 2458649
$1.41 / Each
Typical price:$1.85 / Each
LUTZE 104280 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 104280 |
| SKU #: | 2458649 |
| Conductor Size: | 24/22 AWG |
| Conductor Type: | Stranded Tinned Copper |
| Jacket Color: | Gray |
| Jacket Material: | PVC |
| Number of Conductors: | 2 Pairs |
| Outside Diameter: | 0.28 in |
| Series: | DeviceNet |
| Strands: | 24/19 |
| Temperature Rating (Degrees F): | -10 to 75 deg C Moving/-40 to 75 deg C Fixed |
| Type: | Shielded |
| Country of origin: | US |
| Insulation material: | Polyolefin |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 39121405 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$1.41 / Each
Typical price:$1.85 / Each
Quantity:
LUTZE 104280
Brand: LUTZE
Part Number: 104280

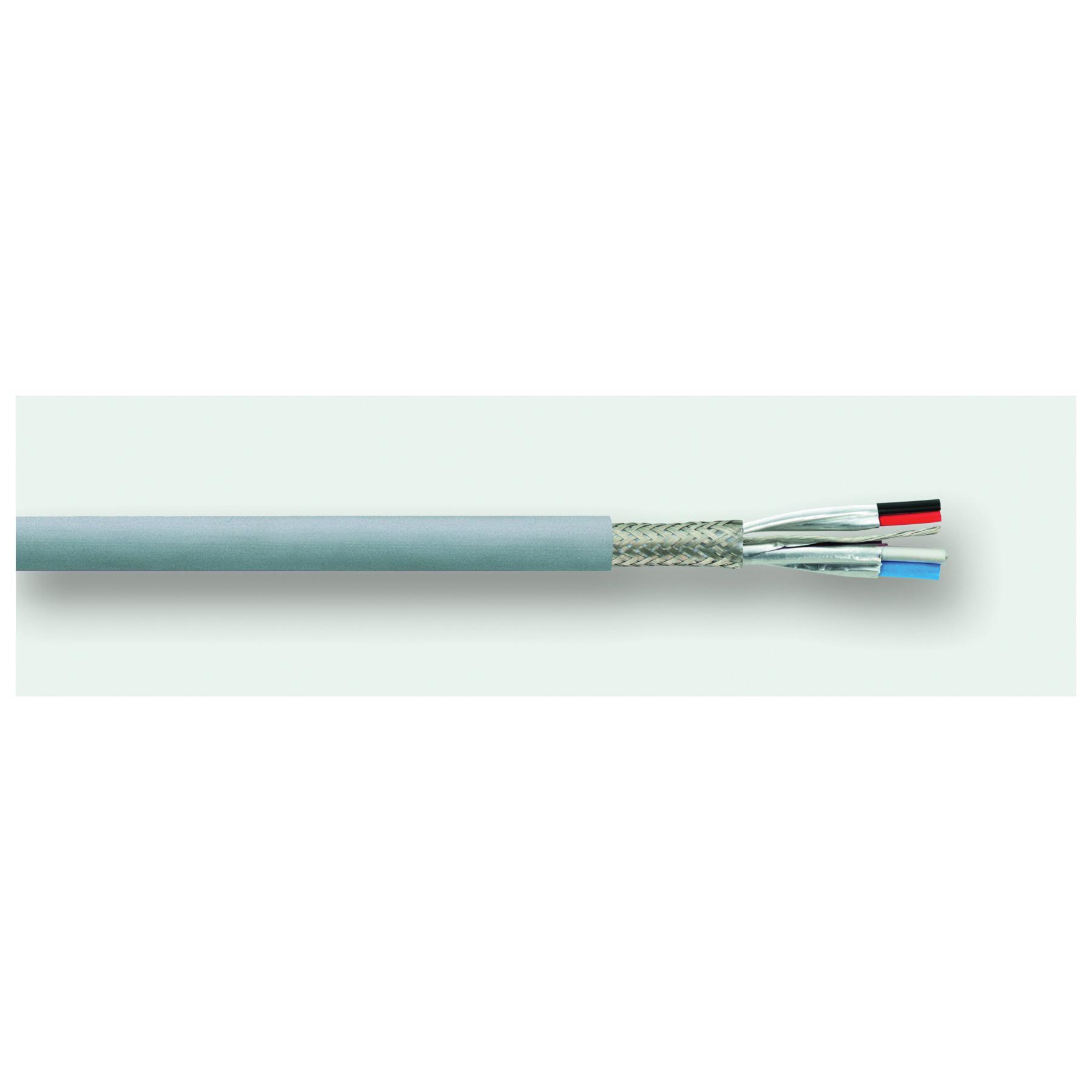

LUTZE Flexible Bus Cable, Shielded, Series: DeviceNet™, 300 V, 2 Pairs Conductors, Stranded Tinned Copper Conductor, 24/22 AWG Conductor, 0.28 in OD, 24/19 Strands, Polyolefin Insulation, PVC Jacket, Gray Jacket, -10 to 75 deg C Moving/-40 to 75 deg C Fixed
Additional Description: LUTZ-104280 LUTZE DEVICE NET THIN GRAY PVC JACKET CM/UL
104280 Application
For stationary applications, the wiring of industrial sensors, control devices, valves and other equipment, automation technology, transport, conveyor technology and machine tool manufacturing104280 Item Features
- Two pair cable - the pair with the smaller cross section is for data transmission, the pair with the larger cross section is for the power supply
- High protection against electromagnetic interference (EMI)
- Flexible for easy installation
- Talc and silicone-free
104280 Standards
CE Certified|CL2|CM 75C|DIN EN 60332-1-2|IEC 60332-1|NFPA 79|REACH Compliant|RoHS Compliant|UL 1581 Part VW-1 Flame Test/FT1|VDE 0482 322-1-2SKU #2458649Part Number #104280UNSPSC39121405UPC
Image provided may only be a representation of final product and may include optional equipment
