Part Number # 104401
SKU # 2444366
Image Disclaimers Message
LUTZE 104401 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 104401 |
| SKU #: | 2444366 |
| Conductor Size: | 24 AWG |
| Conductor Type: | Stranded Bare Copper |
| Jacket Color: | Green |
| Jacket Material: | PUR |
| Number of Conductors: | 4 Pairs |
| Outside Diameter: | 0.35 in |
| Resistance: | 500 MOhm Insulation |
| Series: | Ethernet |
| Strands: | 7 |
| Temperature Rating (Degrees F): | -30 to 70 deg C Moving/-40 to 80 deg C Fixed |
| Type: | Cat 6A Shielded |
| Country of origin: | DE |
| Insulation material: | Polyolefin |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121609 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

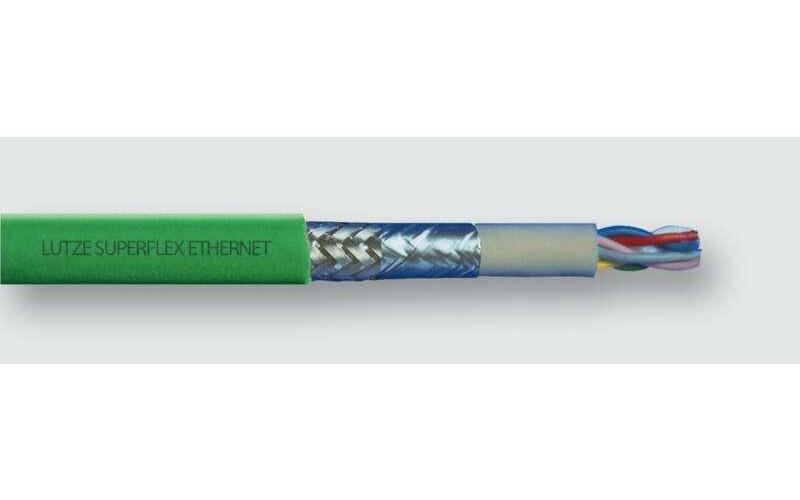

- LUTZE SUPERFLEX Network Cable, Cat 6A Shielded, Series: ETHERNET, 300 V, 4 Pairs Conductors, Stranded Bare Copper Conductor, 24 AWG Conductor, 0.35 in OD, 7 Strands, 500 MOhm Insulation Resistance, Polyolefin Insulation, PUR Jacket, Green Jacket, -30 to 70 deg C Moving/-40 to 80 deg C Fixed
104401 Application
For continuous motion applications, the cabling of industrial ethernet systems, industrial environments and operating conditions with high electrical noise levels, automation technology, transport, conveyor technology, machine tool manufacturing and continuous flexing applications in drag chains or free movement104401 Item Features
- Compatible with all major drag chain brands
- High protection against electromagnetic interference (EMI)
- Talc and silicone-free
104401 Standards
AWM 21198|CE Certified|cULus Listed|DIN EN 50363-10-2/60811-404/60754-1|HF Certified|IEC 60332-1-2/60754-1|NFPA 79|REACH Compliant|RoHS Compliant|UL FT2SKU #2444366Part Number #104401UNSPSC26121609UPC
