Part Number # 111292
SKU # 2461970
LUTZE 111292 Key Features
| Brand: | LUTZE |
|---|---|
| Part Number # : | 111292 |
| SKU #: | 2461970 |
| Conductor Size: | 2 AWG |
| Conductor Type: | Stranded Bare Copper |
| Jacket Color: | Black |
| Jacket Material: | PUR |
| Number of Conductors: | 1 |
| Outside Diameter: | 0.551 in |
| Resistance: | 200 MOhm |
| Series: | Plus M (C) |
| Temperature Rating (Degrees F): | -25 to 80 deg C Moving/-40 to 80 deg C Fixed |
| Type: | Shielded |
| Country of origin: | IT |
| Insulation material: | TPE |
| Manufacturer Name: | LUTZE Inc |
| UNSPSC: | 26121629 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.

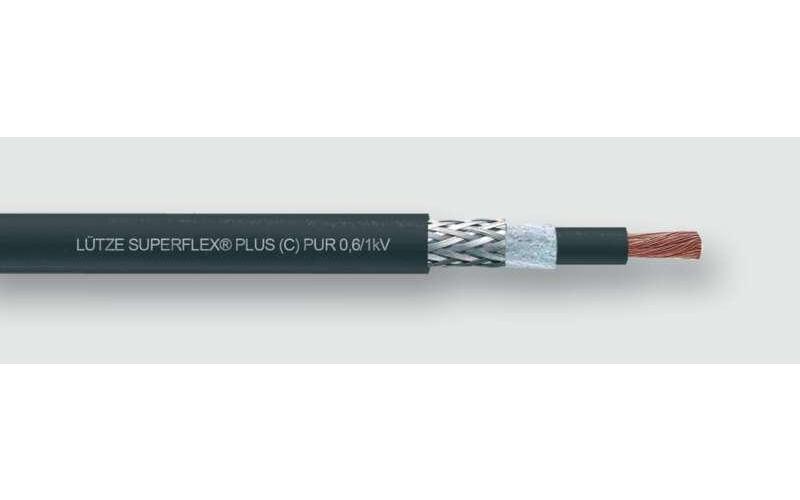

- LUTZE SUPERFLEX High Flexing Motor Cable, Shielded, Series: Plus M (C), 600/1000 V, 1 Conductors, Stranded Bare Copper Conductor, 2 AWG Conductor, 0.551 in OD, 200 MOhm Resistance, TPE Insulation, PUR Jacket, Black Jacket, -25 to 80 deg C Moving/-40 to 80 deg C Fixed
111292 Application
For continuous motion applications111292 Item Features
- High flexing single conductor motor cable for continuous motion applications
- Continuous flexing shielded cable suitable for machine and device construction for transport and conveyor technology
- As motor supply conductor
- For the most demanding flexing applications such as drag chains and linear flexing
- Compatible with all major drag chain brands
- Superfine stranded per Class 6 for continuous moving applications
- Very good alternating bending strength
- TPE insulation with very high break through resistance
- PUR jacket for highest level of resistance against cooling fluids, greases and oils
- Abrasion, high wear and rot resistance
- Hydrolysis, microbe and rot-resistant
- UV-resistant
- Talc and silicone-free
111292 Standards
CE Certified|IEC 60332-1|Desina Compliant|DIN EN 60332-1-2|DIN EN 60754-1|DIN VDE 0295 Class 6 and IEC 60228 Class 6|HF Certified|FT1 Certified|IEC 60754-1|Low Capacitance Certified|NFPA 79 Article 12.24|REACH Compliant|RoHS Compliant|UL 1581 Cable Flame|UL AWM 10587|UL FT1|UL Recognized|VDE 0482 322-1-2|VW-1 ApprovedSKU #2461970Part Number #111292UNSPSC26121629UPC
Image provided may only be a representation of final product and may include optional equipment
