1597

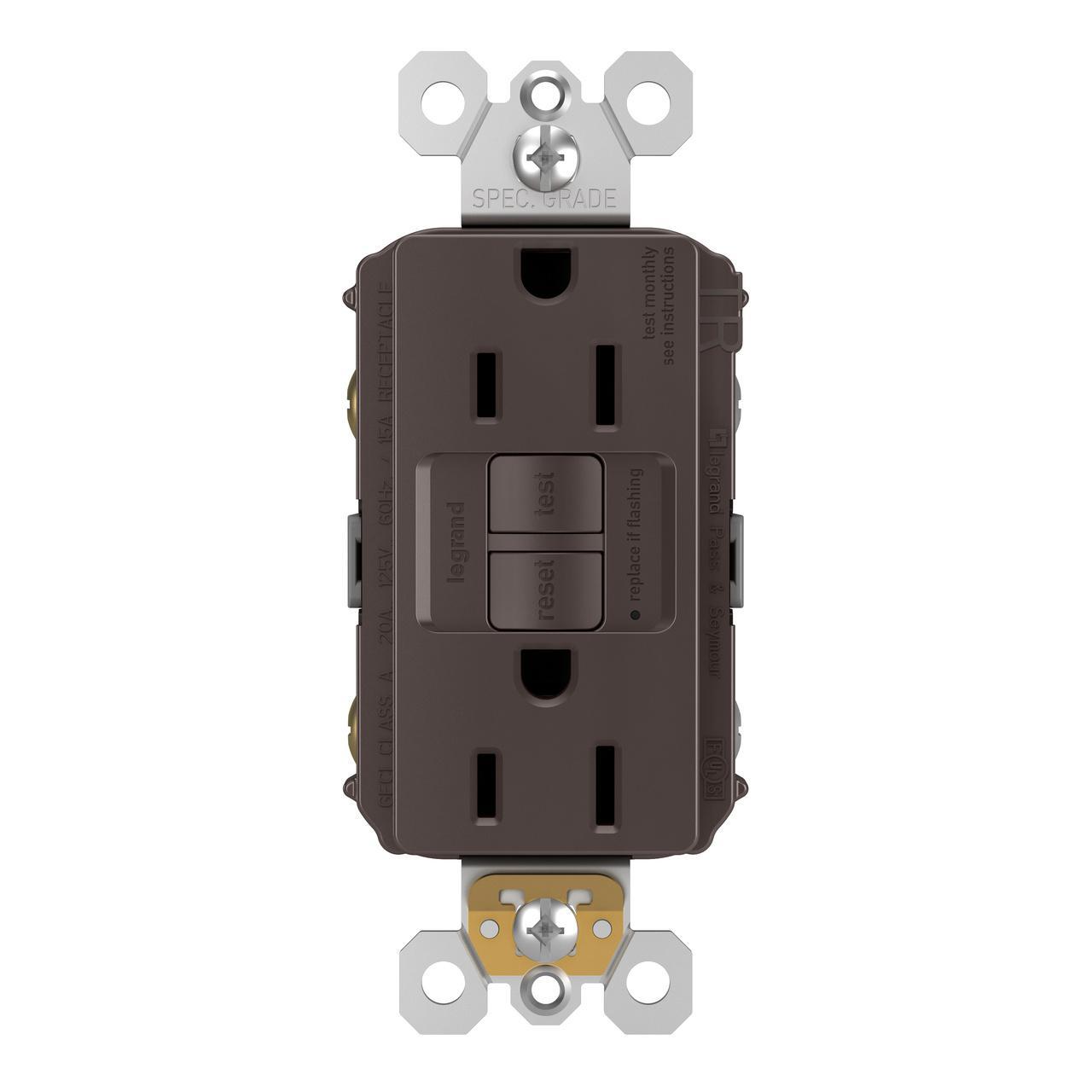

Legrand-Pass & Seymour 1597 GFCI Receptacle
Part Number # 1597
SKU # 2379829
Legrand-Pass & Seymour 1597 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 1597 |
| SKU #: | 2379829 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.03 in L x 1.73 in W x 4.2 in H |
| Frequency Rating: | 60, 60 Hz |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Temperature Rating (Degrees F): | -35 to 66, -35 to 66 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex Self-Test |
| Color: | Brown |
| Country of origin: | CN |
| Material: | Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500703585 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour 1597 GFCI Receptacle
Brand: Legrand-Pass & Seymour
Part Number: 1597
Pass & Seymour Radiant GFCI Receptacle, Duplex Self-Test, 125 VAC, 15 A, 60 Hz Frequency, 2 Pole, NEMA 5-15R NEMA Rating, Specification Grade, -35 to 66 deg C, Back/Side Wire Terminal, Thermoplastic, Brown, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
Additional Description: PS -1597 RADIANT SELF TST DUP GFCI 15A, 125V BR
Catalog Description: GFCI receptacles from the radiant Registered Collection self-test automatically every three seconds to ensure reliable protection from shock due to ground fault occurrences. Meeting National Electrical Code requirements for ground fault protection, GFCI receptacles make it easier to recognize and fix trips right where they happen – no more confusion at the breaker box. Maximize safety, in style, with GFCI protection featuring the sleek, clean lines of radiant. GFCI protection is required by code in bathrooms, kitchens, garages, basements, outdoor areas, and for any other outlets found within six feet of a sink or water source. GFCI outlets should always be used when replacing existing GFCI outlets during renovation. Made exclusively for use with screwless Wall Plates from the radiant Registered Collection, sold separately. Spec-Grade devices are engineered to meet federal specifications for use in commercial installations.
1597 Application
Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institutional and Multiple Dwelling, Commercial and Residential Applications1597 Item Features
- Protects against shock caused by ground-fault occurrences
- Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
- Conducts an industry-leading automatic self-test every 3 seconds
- If the device ever fails, the indicator light flashes to signal it should be replaced
- Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected
- Extends GFCI protection to downstream outlets when used with feed-thru wiring configuration
- Note, Will cut power to face and downstream outlets if wired incorrectly
- Replaces any standard receptacle with ease, in as little as 10 min
- Features durable, high-impact resistant thermoplastic construction
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
1597 Standards
CSA C22.2 No. 42/144|cULus Listed File No. E42190|ECCN: EAR99|Federal Specification W-C-596|FULs Listed|NEMA WD-1/WD-6 Rated|UL 498/943SKU #2379829Part Number #1597UNSPSC39121406UPC00078500703585
