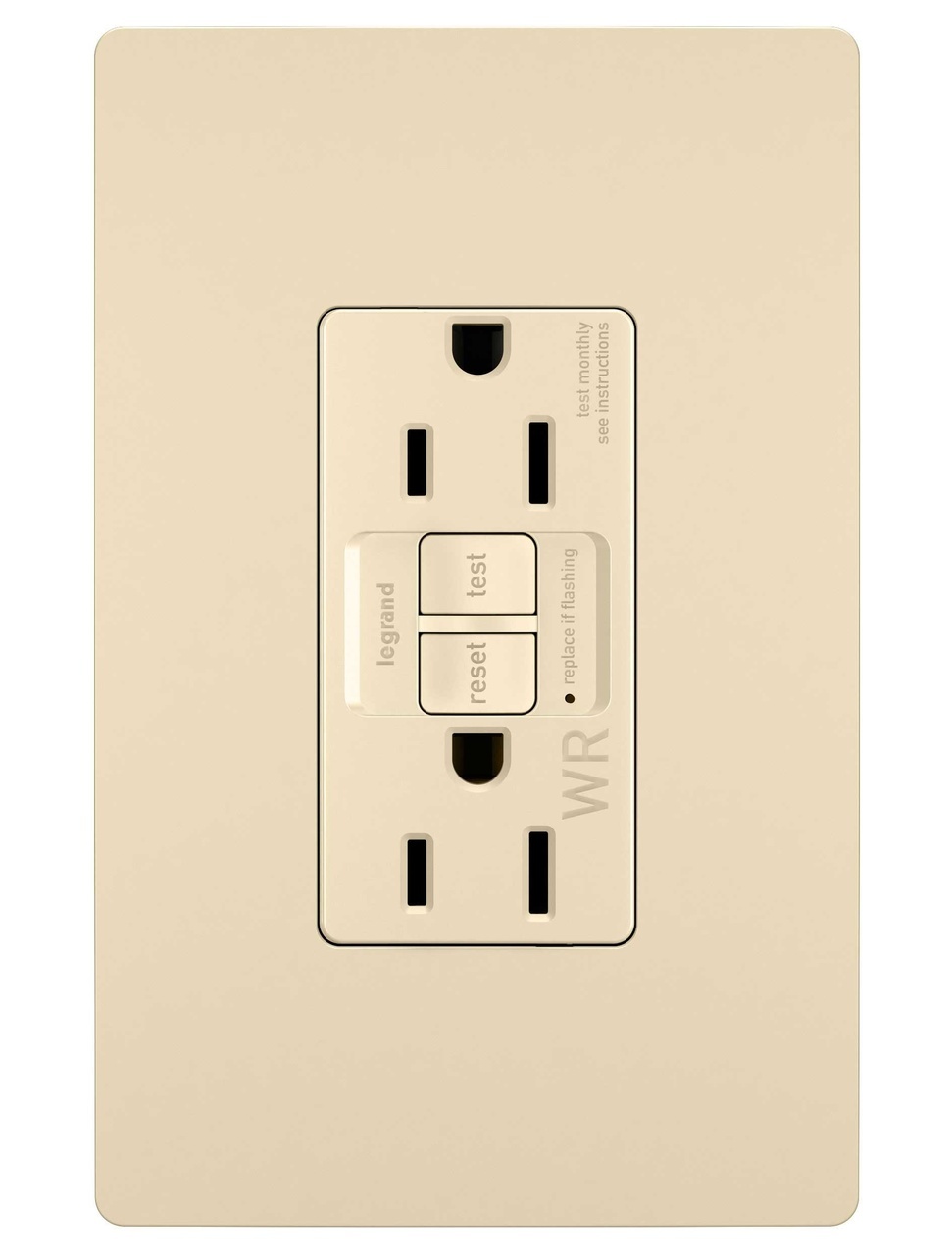

Legrand-Pass & Seymour 1597-TRWRI Circuit Interruptor
Part Number # 1597-TRWRI
SKU # 2427001
$29.21 / Each
Typical price:$42.61 / Each
Legrand-Pass & Seymour 1597-TRWRI Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 1597-TRWRI |
| SKU #: | 2427001 |
| Amperage Rating: | 15 A |
| Dimensions: | 1.03 in L x 1.73 in W x 4.2 in H |
| Frequency Rating: | 60 Hz |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Series: | 1597TRW |
| Temperature Rating (Degrees F): | -35 to 66 deg C |
| Terminal Type: | Back/Side Wire/Screw |
| Type: | Duplex Self-Test Tamper/Weather-Resistant |
| Color: | Ivory |
| Country of origin: | CN |
| Material: | Nylon/Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500703613 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$29.21 / Each
Typical price:$42.61 / Each
Quantity:
- Pass & Seymour Radiant GFCI Receptacle, Duplex Self-Test Tamper/Weather-Resistant, Series: 1597TRW, 125 V AC, 15 A, 60 Hz Frequency, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Residential/Specification Grade, -35 to 66 deg C, Back/Side Wire/Screw Terminal, Nylon/Thermoplastic, Ivory, 1.03 in L x 1.73 in W x 4.2 in H Dimensions
1597-TRWRI Application
Industrial, Health Care, Education, Institutional, Retail, Office, Hospitality/Lodging and Multiple Dwelling, Commercial and Residential Applications1597-TRWRI Item Features
- Protects against shock caused by ground-fault occurrences
- Unlike breaker alternatives, GFCI receptacles make it easier to fix trips with a reset button right on the device
- Conducts an industry-leading automatic self-test every 3 seconds
- If the device ever fails, the indicator light flashes to signal it should be replaced
- Equipped with proven SafeLock protection feature - if critical components are damaged and protection is lost, power to the outlet is disconnected
- Extends GFCI protection to downstream outlets when used with feed-thru wiring configuration
- Note, Will cut power to face and downstream outlets if wired incorrectly
- Designed with weather-resistance for use in outdoor locations such as decks, patios and pool areas
- Must be installed in weatherproof enclosure per NEC requirements
- Replaces any standard receptacle with ease, in as little as 10 min
- Features durable, high-impact resistant thermoplastic construction
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
1597-TRWRI Standards
FULs Listed|NEC Certified|UL 498|UL 94 V-2 Flammability Rated|UL ListedSKU #2427001Part Number #1597-TRWRIUNSPSC39121406UPC00078500703613
