Part Number # 26352-I
SKU # 2406166
Image Disclaimers Message
26352-I

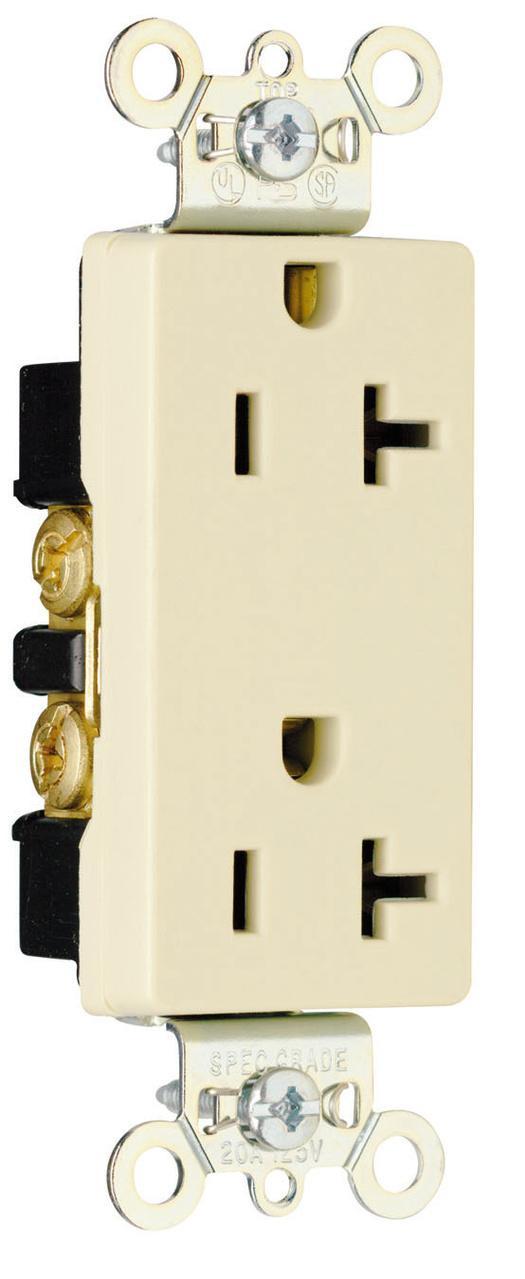

Legrand-Pass & Seymour 26352-I Straight Blade Receptacle
Part Number # 26352-I
SKU # 2406166
$23.36 / Each
Typical price:$32.70 / Each
Legrand-Pass & Seymour 26352-I Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 26352-I |
| SKU #: | 2406166 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.322 in L x 0.833 in W x 3.813 in H |
| Enclosure: | NEMA WD-1 |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Decorator Duplex Heavy Duty |
| Color: | Ivory |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007785388 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$23.36 / Each
Typical price:$32.70 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Decorator Duplex Heavy Duty, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, NEMA WD-1 Enclosure, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 1.322 in L x 0.833 in W x 3.813 in H Dimensions
26352-I Application
Education, Institutional, Retail, Office, Hospitality, Lodging and Multiple Dwelling and Commercial Applications26352-I Item Features
- Corrosion-resistant, plated steel strap locked into assembly to prohibit strap from bending away from body
- Heavy-duty compact design for easier installation and long lasting performance
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Impact-resistant nylon face
- Terminal compartments isolated from each other for positive conductor containment
- All devices fit standard 26 opening wall plate
- Tri-drive terminal and mounting screws
- Auto-ground clip assures positive ground
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
26352-I Standards
cUL Listed|CSA Certified|ECCN: EAR99|UL 498|UL 94 V-2 Flammability RatedSKU #2406166Part Number #26352-IUNSPSC39121406UPC00785007785388
