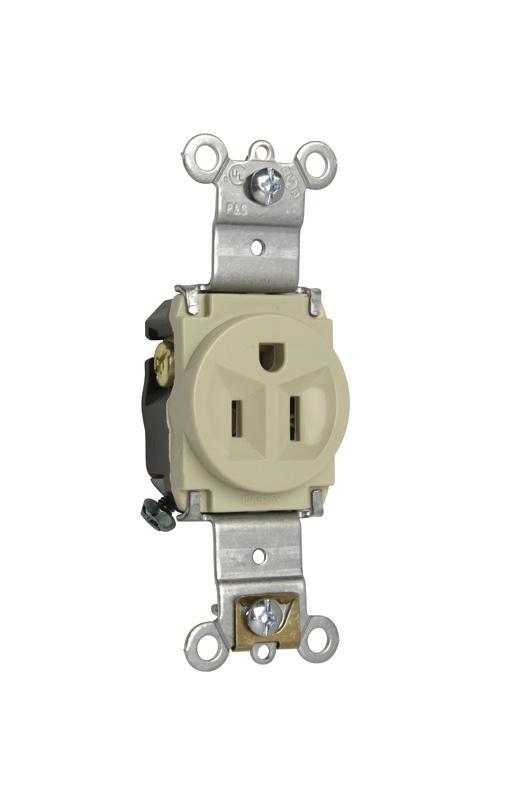

Legrand-Pass & Seymour 5261-I Straight Blade Receptacle
Part Number # 5261-I
SKU # 2329717
$20.07 / Each
Legrand-Pass & Seymour 5261-I Key Features
Brand: Legrand-Pass & Seymour
Part Number # 5261-I
SKU #2329717
Amperage Rating: 15, 15 A
Dimensions: 1.32 in L x 1.093 in W x 3.68 in H
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60, -40 to 60 deg C
Terminal Type: Back/Side Wire, Back/Side Wired
Type: Heavy Duty Single
Voltage Rating: 125, 125 VAC
Color: Ivory
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121406
UPC: 00785007526110
$20.07 / Each
Legrand-Pass & Seymour 5261-I Straight Blade Receptacle
Brand: Legrand-Pass & Seymour
Part Number: 5261-I
Pass & Seymour Straight Blade Receptacle, Heavy Duty Single, 125 VAC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Hospital/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 1.32 in L x 1.093 in W x 3.68 in H Dimensions
Additional Description: PS -5261-I RECP SGL 15A 125V S+B WIRE IV
Catalog Description: Heavy-Duty Spec Grade Single Receptacle Back and Side-Wire 15A 125V
5261-I Application
Commercial Applications5261-I Item Features
- Corrosion-resistant plated and tabbed steel strap locked in to the face and back body to resist pulling away from face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break-off line contact connecting tab for fast and easy split circuit wiring
- Internal screw pressure plate back wire capable of accepting 14 to 10 AWG solid or stranded copper or copper clad wire
- Terminal compartments isolated from each other for positive conductor containment
- Tri-drive terminal and mounting screws
- 1-piece brass, triple wipe power contacts for lasting retention
- Withstands 2000 VAC minimum dielectric voltage
- Wattage of electrical power is expressed in amperage and voltage
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
5261-I Standards
CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability RatedSKU #2329717Part Number #5261-IUNSPSC39121406UPC00785007526110
