Part Number # 5262-AI
SKU # 2367393
Image Disclaimers Message
5262-AI

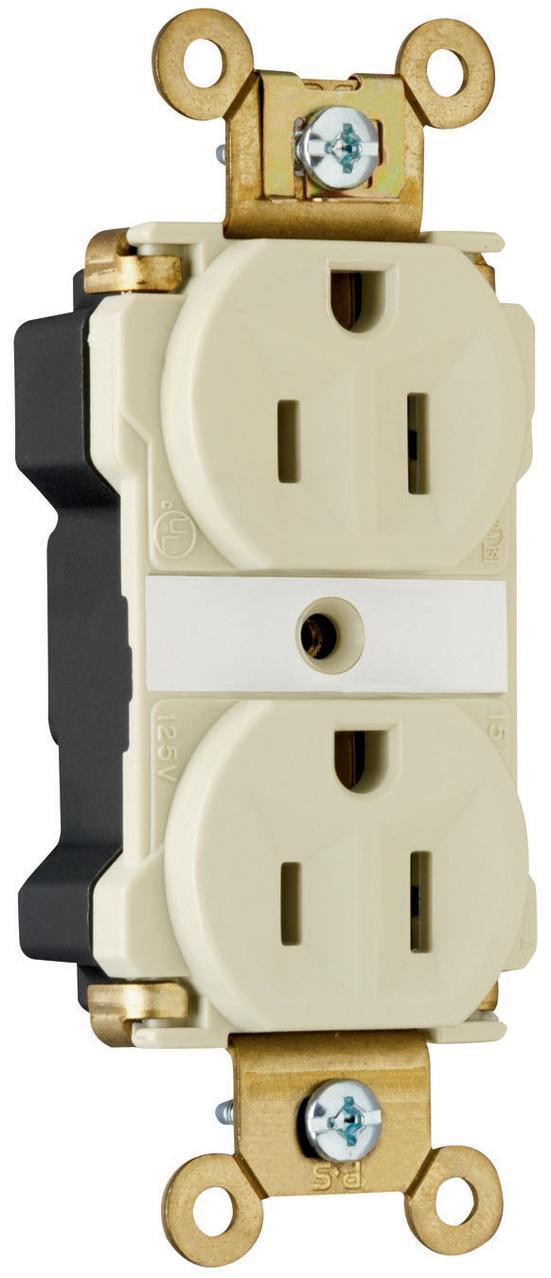

Legrand-Pass & Seymour 5262-AI Straight Blade Receptacle
Part Number # 5262-AI
SKU # 2367393
$33.57 / Each
Typical price:$39.17 / Each
Legrand-Pass & Seymour 5262-AI Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 5262-AI |
| SKU #: | 2367393 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.625 in L x 0.9 in W x 3.281 in H |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Duplex Extra Heavy Duty |
| Color: | Ivory |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007528053 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$33.57 / Each
Typical price:$39.17 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Duplex Extra Heavy Duty, 125 V AC, 15 A, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Industrial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Ivory, 1.625 in L x 0.9 in W x 3.281 in H Dimensions
5262-AI Application
Industrial and Institutional Applications5262-AI Item Features
- One-piece brass mounting strap with integral ground
- Strap tabs wrap around and lock down on face to prevent strap from separating from face and back body
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.036 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Line terminals accept 14 -- 10 AWG stranded or solid copper clad conductors
- Auto-ground clip assures positive ground
- Corrosion-resistant models have nickel-plated straps and contacts
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
5262-AI Standards
CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|Federal Specification Specified|UL 498|UL 94 V-2 Flammability RatedSKU #2367393Part Number #5262-AIUNSPSC39121406UPC00785007528053
