Brand: Legrand-Pass & Seymour

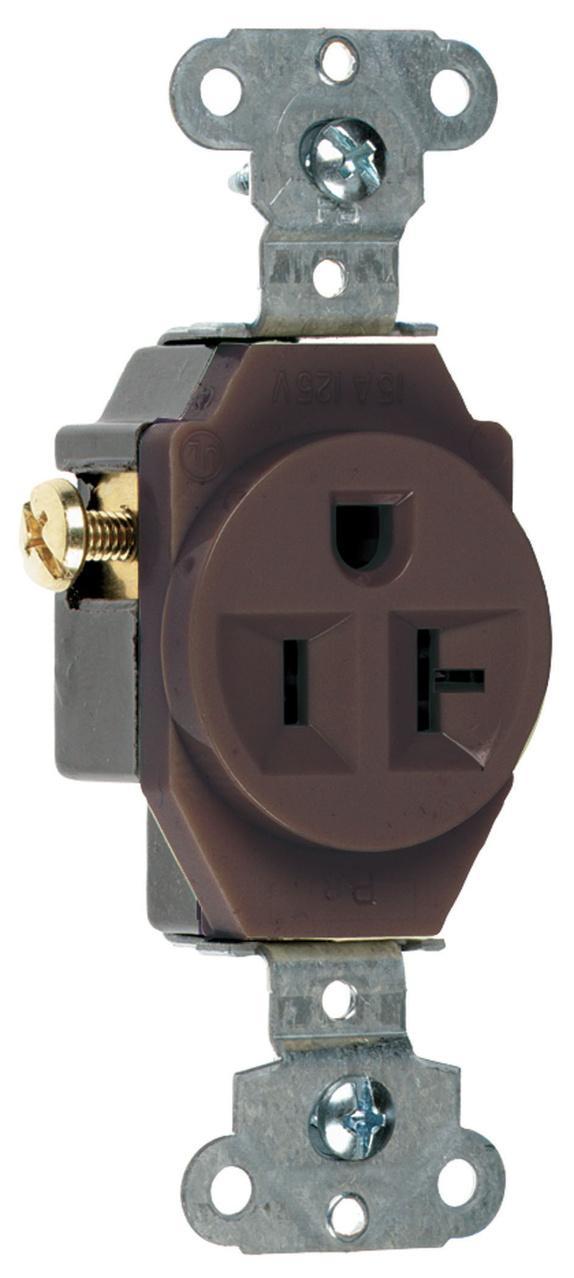

Legrand-Pass & Seymour 5351 Straight Blade Receptacle
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour 5351 Straight Blade Receptacle
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour 5351 Straight Blade Receptacle
Part #:5351
SKU #: 2329720
$17.24/EA
Key Features
Part #:5351
SKU #: 2329720
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Dimensions: 1.32 in L x 1.08 in W x 3.68 in H
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
$17.24/EA
- Auto-ground clip assures positive ground
- 2-drive screws anchor strap to back body and face where abrupt removal torque is greatest
- Heavy duty, corrosion-resistant zinc plated steel strap for added strength
- Backed-out tri-drive brass terminal screws for faster installation
- 1-piece brass, triple wipe power contacts for lasting retention
- Two back wire holes for increased wiring flexibility
- Internal screw pressure plate back and side wire capability
- Withstands minimum 2000 VAC dielectric voltage
- Wattage of electrical power is expressed in amperage and voltage
- Wall mounting
- 14 to 10 AWG wire
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Dimensions: 1.32 in L x 1.08 in W x 3.68 in H
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60, -40 to 60 deg C
Terminal Type: Back/Side Wire, Back/Side Wired
Type: Heavy Duty Single
Voltage Rating: 125, 125 VAC
Color: Brown
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121406
UPC: 00785007535105
Legrand-Pass & Seymour 5351 Straight Blade Receptacle
Pass & Seymour Straight Blade Receptacle, Heavy Duty Single, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Brown, 1.32 in L x 1.08 in W x 3.68 in H Dimensions
Additional Description: PS -5351 RECP SGL 20A 125V S-WIRE BN
Catalog Description: Heavy-Duty Spec Grade Single Receptacle Side Wire 20A 125V
Item FeaturesCommercial Applications
Item Features
Item FeaturesCSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 94 V-2 Flammability Rated
