Part Number # 5362-ABK
SKU # 2244916
Image provided may only be a representation of
final product and may include optional equipment
5362-ABK

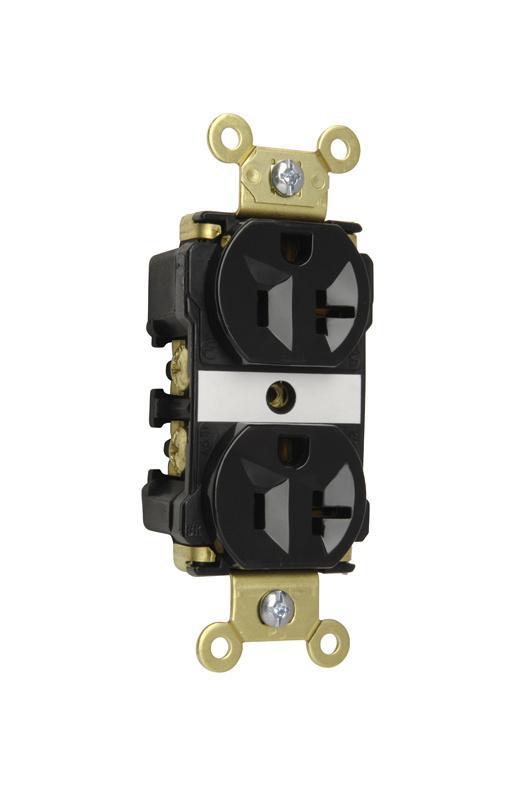

Legrand-Pass & Seymour 5362-ABK Straight Blade Receptacle
Part Number # 5362-ABK
SKU # 2244916
Legrand-Pass & Seymour 5362-ABK Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | 5362-ABK |
| SKU #: | 2244916 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.625 in L x 0.9 in W x 3.281 in H |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Duplex Extra Heavy Duty |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007528114 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour 5362-ABK Straight Blade Receptacle
Brand: Legrand-Pass & Seymour
Part Number: 5362-ABK
Pass & Seymour Straight Blade Receptacle, Duplex Extra Heavy Duty, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Industrial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 1.625 in L x 0.9 in W x 3.281 in H Dimensions
Additional Description: PS -5362-ABK DUP RECEPT 20A/125VAC BK
Catalog Description: Industrial Extra Heavy-Duty Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
5362-ABK Application
Industrial and Institutional Applications5362-ABK Item Features
- One-piece brass mounting strap with integral ground
- Two drive screws anchor strap to back body and face
- Exclusive patented feature, circuit label on face allows permanent circuit identification
- 0.036 in thick, brass, triple-wipe power contacts for lasting retention
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- Oversized 10 deep tri-drive head brass terminal and ground screws
- Exclusive patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
5362-ABK Standards
CSA C22.2 No. 42|cULus Listed|ECCN: EAR99|Federal Specification Specified|UL 498|UL 94 V-2 Flammability RatedSKU #2244916Part Number #5362-ABKUNSPSC39121406UPC00785007528114
