CRB5362-BK

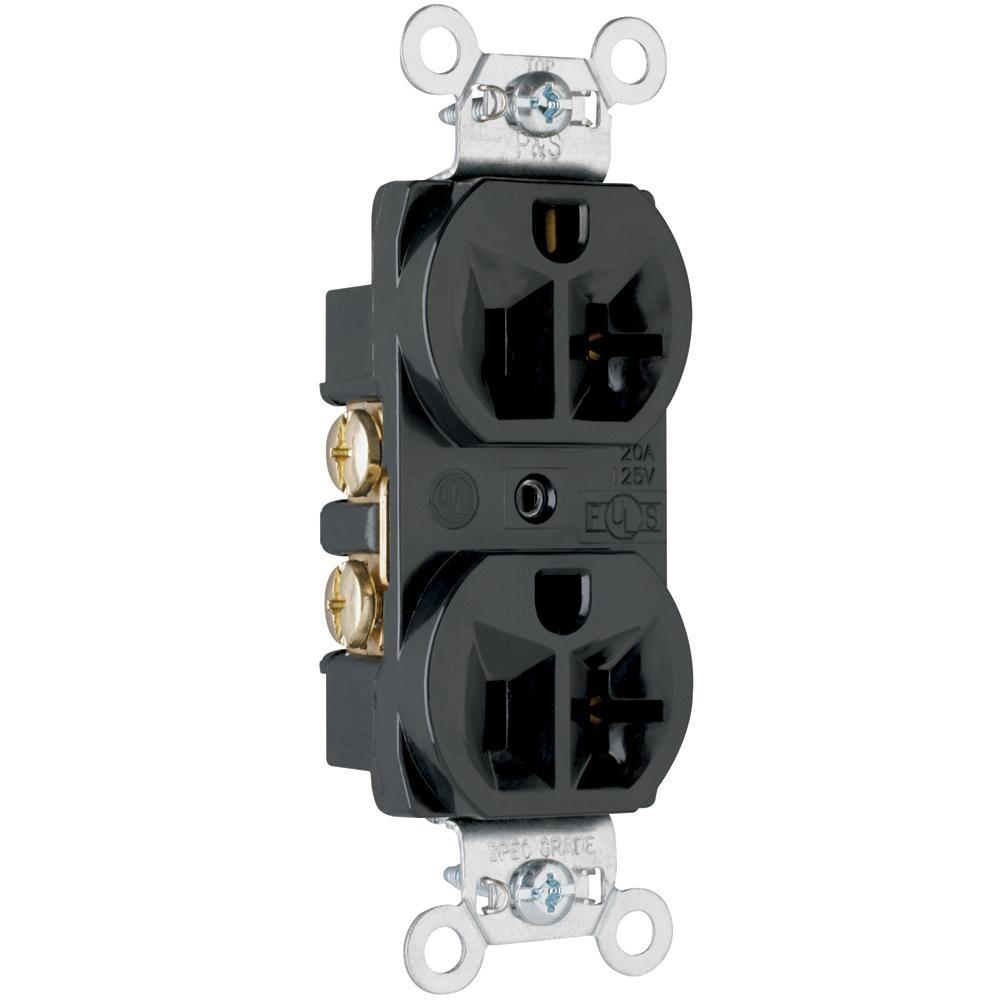

Legrand-Pass & Seymour CRB5362-BK Straight Blade Receptacle
Part Number # CRB5362-BK
SKU # 2400668
$14.77 / Each
Typical price:$14.78 / Each
Legrand-Pass & Seymour CRB5362-BK Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | CRB5362-BK |
| SKU #: | 2400668 |
| Amperage Rating: | 20 A |
| Dimensions: | 1.322 in L x 0.78 in W x 3.281 in H |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60 deg C |
| Terminal Type: | Back/Side Wire |
| Type: | Duplex |
| Color: | Black |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007210255 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$14.77 / Each
Typical price:$14.78 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Duplex, 125 V AC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Construction/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 1.322 in L x 0.78 in W x 3.281 in H Dimensions
CRB5362-BK Application
Construction ApplicationsCRB5362-BK Item Features
- Corrosion-resistant, plated steel strap locked in to face and back body to resist pulling away from face/body assembly
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- Easily accessed break-off, line-contact connecting tab for fast, easy split-circuit wiring
- 8 hole internal screw-pressure-plate back wire terminals accept 10 - 14 AWG solid or stranded copper or copper-clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
CRB5362-BK Standards
CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability RatedSKU #2400668Part Number #CRB5362-BKUNSPSC39121406UPC00785007210255
