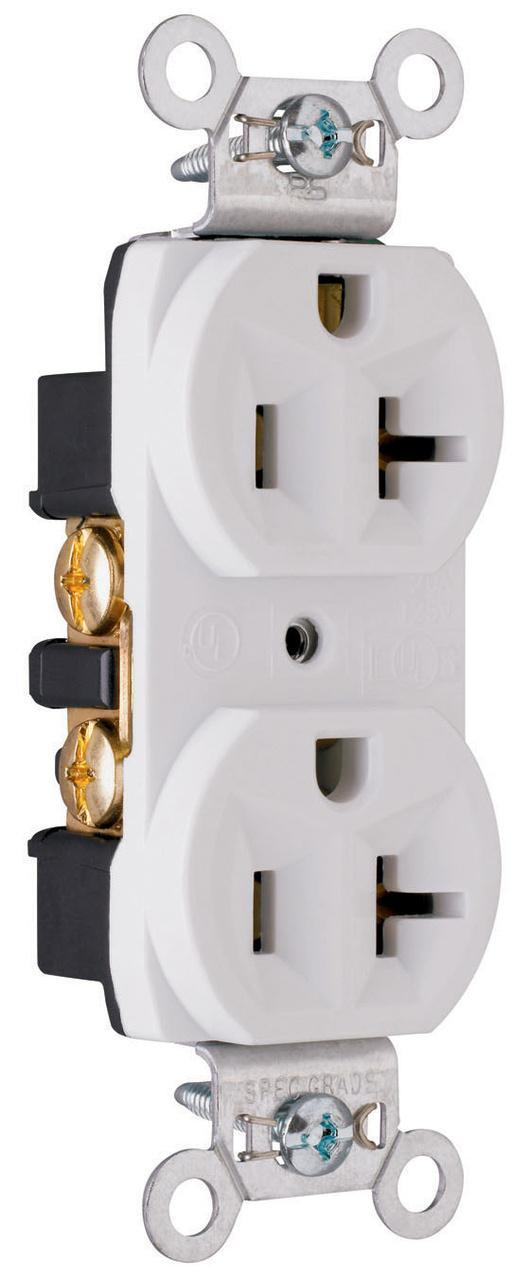

Legrand-Pass & Seymour CRB5362-W Straight Blade Receptacle
Image Disclaimers Message
Legrand-Pass & Seymour CRB5362-W Straight Blade Receptacle
Legrand-Pass & Seymour CRB5362-W Straight Blade Receptacle
Part #:CRB5362-W
SKU #: 2165966
$12.96/EA
Key Features
Part #:CRB5362-W
SKU #: 2165966
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Dimensions: 3.3 in H x 1.322 in W x 0.78 in D
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
$12.96/EA
- Corrosion resistant, plated and tabbed steel strap locked in to face and back body to resist pulling away from face/body assembly
- Auto-ground clip assures positive ground
- Easily accessed break OFF line contact connecting tab for fast and easy split-circuit wiring
- 8-hole internal screw pressure plate back wire terminals accept 10 to 14 AWG solid or stranded copper or copper clad conductors
- Terminal compartments isolated from each other for positive conductor containment
- UL 94-V2 flammability rating
- Withstands 2000 VAC minimum dielectric voltage
- Wire ground connection
- Triple-wipe brass contacts ensure lasting, positive contact with plug blades
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Dimensions: 3.3 in H x 1.322 in W x 0.78 in D
NEMA Rating: NEMA 5-20R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 60, -40 to 60 deg C
Terminal Type: Back/Side Wire, Back/Side Wired
Type: Duplex
Voltage Rating: 125, 125 VAC
Color: White
Country of origin: MX
Material: Thermoplastic
Manufacturer Name: Legrand
UNSPSC: 39121406
UPC: 00785007210231
Legrand-Pass & Seymour CRB5362-W Straight Blade Receptacle
Pass & Seymour Straight Blade Receptacle, Duplex, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Commercial/Residential Grade, -40 to 60 deg C, Back/Side Wire Terminal, Thermoplastic, White, 3.3 in H x 1.322 in W x 0.78 in D Dimensions
Additional Description: PS -CRB5362W 20A 125V CONSTRUCT DUPLEX RECEPT W
Catalog Description: Construction Spec Grade Duplex Receptacle Back and Side Wire 20A 125V
Item Features
Item FeaturesUL 498|CSA C22.2 No. 42
