Brand: Legrand-Pass & Seymour

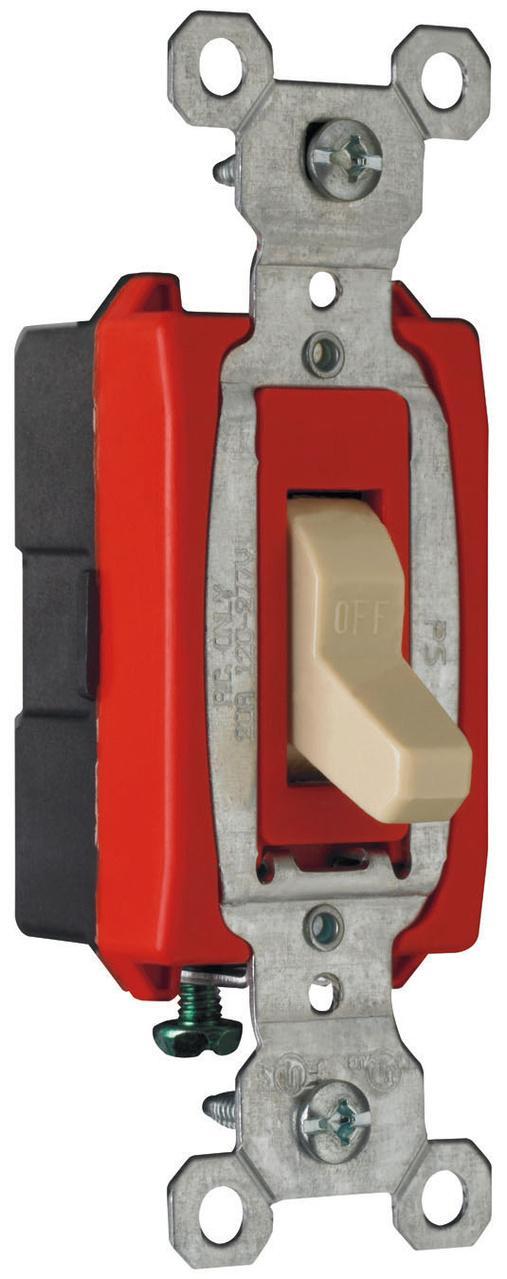

Legrand-Pass & Seymour CS20AC1-I Toggle Switch
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour CS20AC1-I Toggle Switch
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour CS20AC1-I Toggle Switch
Part #:CS20AC1-I
SKU #: 2156771
$6.20/EA
Key Features
Part #:CS20AC1-I
SKU #: 2156771
Brand: Legrand-Pass & Seymour
Actuator: Toggle
Amperage Rating: 20, 20 A
Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
Environmental Conditions: -40 to 115 deg C Temperature
Mounting: Wall
$6.20/EA
- Oversized silver alloy contacts for long life and better heat dissipation
- Heavy duty, brass alloy, 1-piece contact arm virtually eliminates contact bounce
- Shallow design for ease of installation
- Glass reinforced nylon back body for durability and strength
- Cam designed for fast make with positive break action to minimize arcing and prolong switch life
- Locking support provides resistance to face and back body separation
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10 AWG copper or copper-clad wire
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
Specifications
Brand: Legrand-Pass & Seymour
Actuator: Toggle
Amperage Rating: 20, 20 A
Dimensions: 3.3 in H x 1.32 in W x 1.073 in D
Environmental Conditions: -40 to 115 deg C Temperature
Mounting: Wall
Number of Poles: 1
Operating Cycles: 50000, 50000 cycles
Power Rating: 1/2, 1/2 hp
Terminal Type: Screw/Side Wired, Side Wire/Screw
Type: Heavy Duty
Voltage Rating: 120/277, 120/277 VAC
Color: Ivory
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39122211
UPC: 00785007126457
Item FeaturesCommercial, Retail, Office, Hospitality/Lodging and Multiple Dwelling Applications
Item Features
Item FeaturesCSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 498/20|UL 94 V-2 Flammability Rated
