Part Number # CSB20AC1
SKU # 2133427
Image Disclaimers Message
CSB20AC1

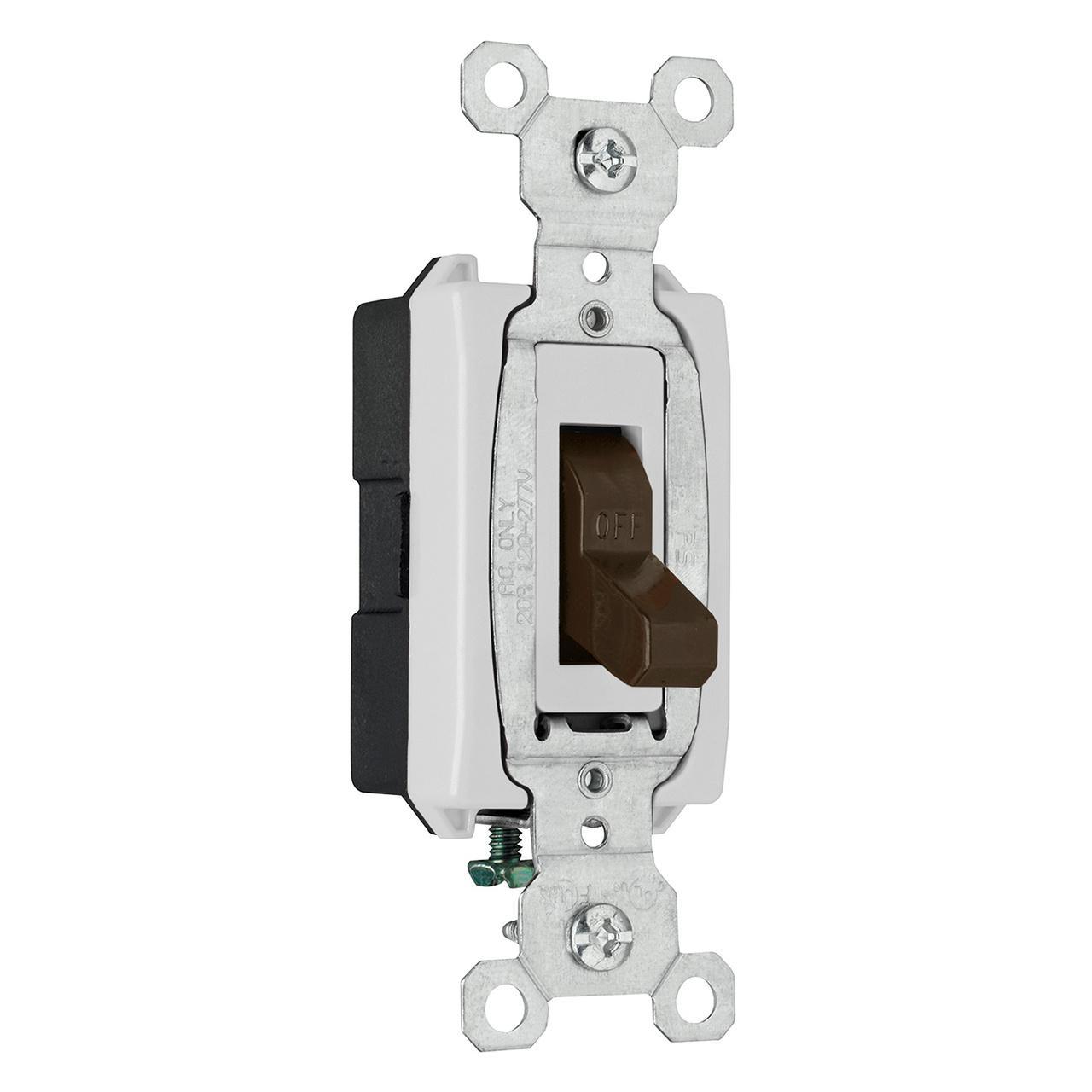

Legrand-Pass & Seymour CSB20AC1 Toggle Switch
Part Number # CSB20AC1
SKU # 2133427
$10.63 / Each
Typical price:$11.19 / Each
Legrand-Pass & Seymour CSB20AC1 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | CSB20AC1 |
| SKU #: | 2133427 |
| Actuator: | Cam/Spring/Toggle |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions: | -40 to 115 deg C Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Screw |
| Type: | Heavy Duty |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122211 |
| UPC: | 00785007126051 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$10.63 / Each
Typical price:$11.19 / Each
Quantity:
- Pass & Seymour Toggle Switch, Heavy Duty, 120/277 V AC, 20 A, 1/2, 2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, Brown, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
CSB20AC1 Application
For construction, commercial/residential uses such as retail, office, institutional, hospitality/lodging and multiple dwelling applicationsCSB20AC1 Item Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 - 10 AWG copper or copper-clad wire
- Oversized silver alloy contacts for longer dependable switch life
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
CSB20AC1 Standards
CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 20|UL 94 V-2 Flammability RatingSKU #2133427Part Number #CSB20AC1UNSPSC39122211UPC00785007126051
