CSB20AC3-W

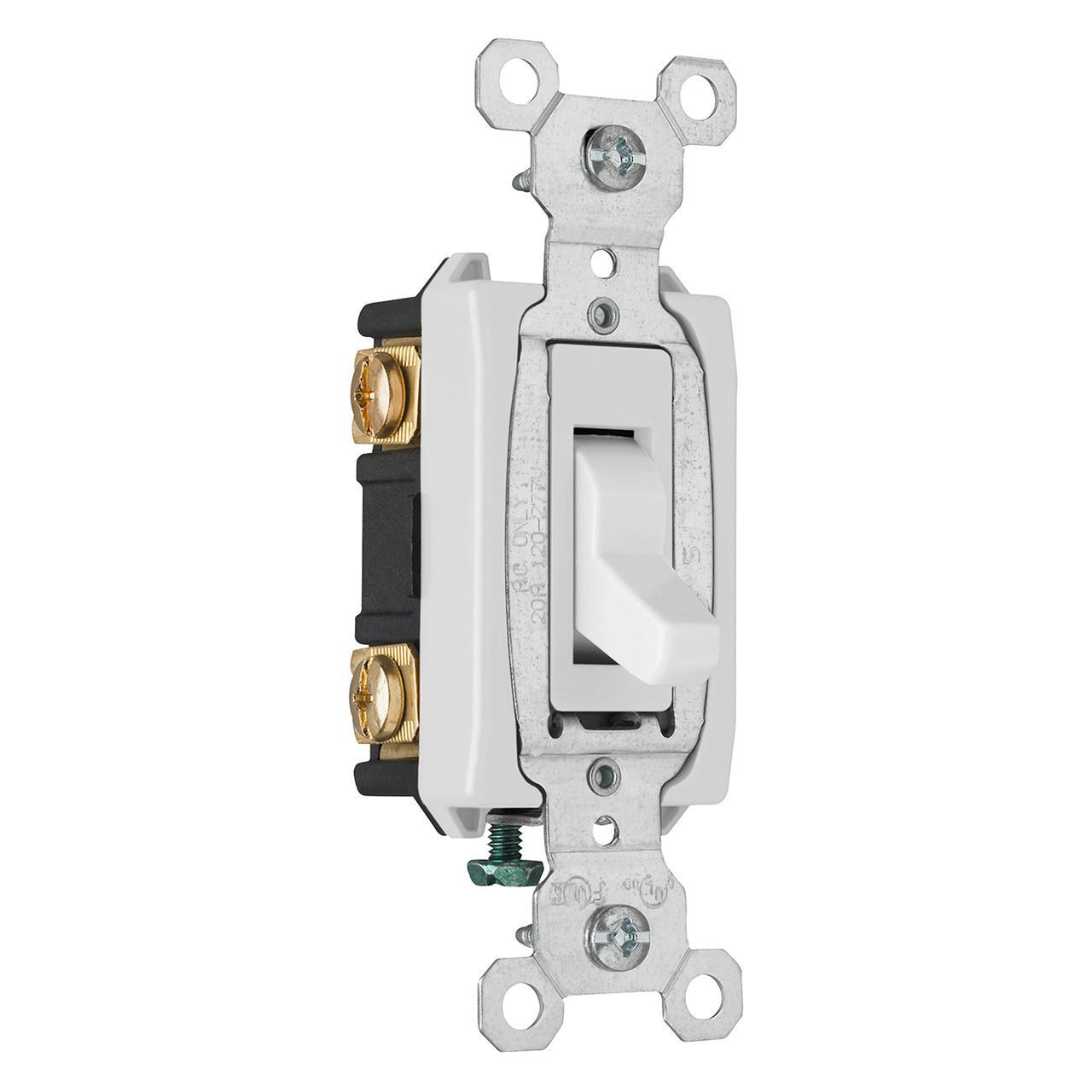

Legrand-Pass & Seymour CSB20AC3-W Toggle Switch
Part Number # CSB20AC3-W
SKU # 2326636
Legrand-Pass & Seymour CSB20AC3-W Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | CSB20AC3-W |
| SKU #: | 2326636 |
| Actuator: | Cam/Spring/Toggle |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions: | -40 to 115 deg C Temperature |
| Mounting: | Wall |
| Number of Poles: | 2 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | 3-Way Heavy Duty |
| Color: | White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122211 |
| UPC: | 00785007126297 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour CSB20AC3-W Toggle Switch
Brand: Legrand-Pass & Seymour
Part Number: CSB20AC3-W
Pass & Seymour Toggle Switch, 3-Way Heavy Duty, 120/277 VAC, 20 A, 2 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Nylon, White, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
Additional Description: PS -CSB20AC3-W 20A 120/277VAC B+S WIRE COMM 3W SW W
Catalog Description: Construction 3-Way Switch, Back and Side-Wire, 20A 120/277V. These switches offer excellent value while meeting federal specification standards. External screw-pressure-plate back wiring enables fast installation and superior electrical connections. Rugged construction shrugs off hard use and abuse.
CSB20AC3-W Application
For construction, commercial/residential uses such as retail, office, institutional, hospitality/lodging and multiple dwelling applicationsCSB20AC3-W Item Features
- One-piece brass alloy contact arm for reliable electrical performance
- One-piece steel strap with integral ground is plated for corrosion resistance
- High strength thermoplastic polycarbonate toggle resists breaking and chipping under heavy abuse
- Heavy-duty toggle bumpers for smooth and quiet operation
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Available with side wire or external screw-pressure-plate back and side wire models capable of accepting 14 to 10 AWG copper or copper-clad wire
- Oversized silver alloy contacts for longer dependable switch life
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
CSB20AC3-W Standards
CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL E140597|UL 20|UL 94 V-2 Flammability RatingSKU #2326636Part Number #CSB20AC3-WUNSPSC39122211UPC00785007126297
