Part Number # IG5262
SKU # 2291628
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
IG5262

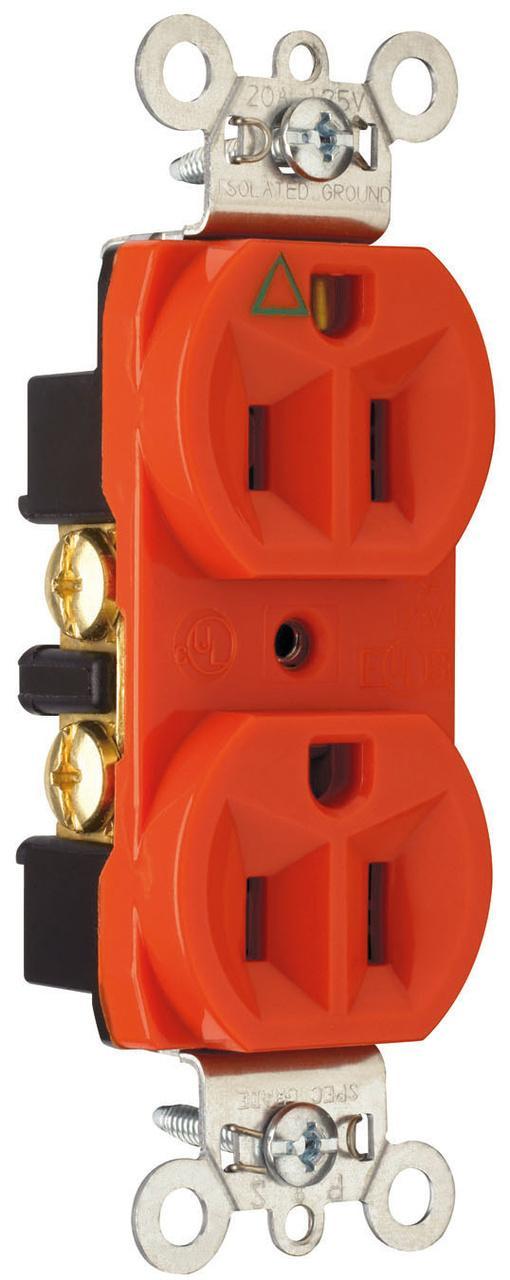

Legrand-Pass & Seymour IG5262 Straight Blade Receptacle
Part Number # IG5262
SKU # 2291628
$21.33 / Each
Typical price:$26.67 / Each
Legrand-Pass & Seymour IG5262 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | IG5262 |
| SKU #: | 2291628 |
| Amperage Rating: | 15, 15 A |
| Dimensions: | 1.322 in L x 0.922 in W x 3.281 in H |
| Horsepower: | 1, 1 hp |
| NEMA Rating: | NEMA 5-15R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Duplex Heavy Duty Isolated Ground |
| Color: | Orange |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00785007045277 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$21.33 / Each
Typical price:$26.67 / Each
Quantity:
- Pass & Seymour Straight Blade Receptacle, Duplex Heavy Duty Isolated Ground, 125 V AC, 15 A, 1 hp, 2 Pole, 3 Wires, NEMA 5-15R NEMA Rating, Commercial/Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Orange, 1.322 in L x 0.922 in W x 3.281 in H Dimensions
IG5262 Application
Commercial ApplicationsIG5262 Item Features
- IG symbol and Isolated Ground markings for easy identification and circuit delineation
- Face color coding by voltage facilitates locating and mating of proper devices
- High-impact resistant nylon face resists impacts and scrapes
- Corrosion-resistant plated steel strap
- Patented feature, external screw-pressure-plate back wire clamp on ground terminal for faster, easier installation
- Plastic barrier isolates grounding terminal from mounting strap and metal boxes
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
IG5262 Standards
CSA C22.2 No. 42|ECCN: EAR99|UL 498|UL 92 V-2 Flammability RatedSKU #2291628Part Number #IG5262UNSPSC39121406UPC00785007045277
