Part Number # L630-C
SKU # 2258136
Image Disclaimers Message
L630-C

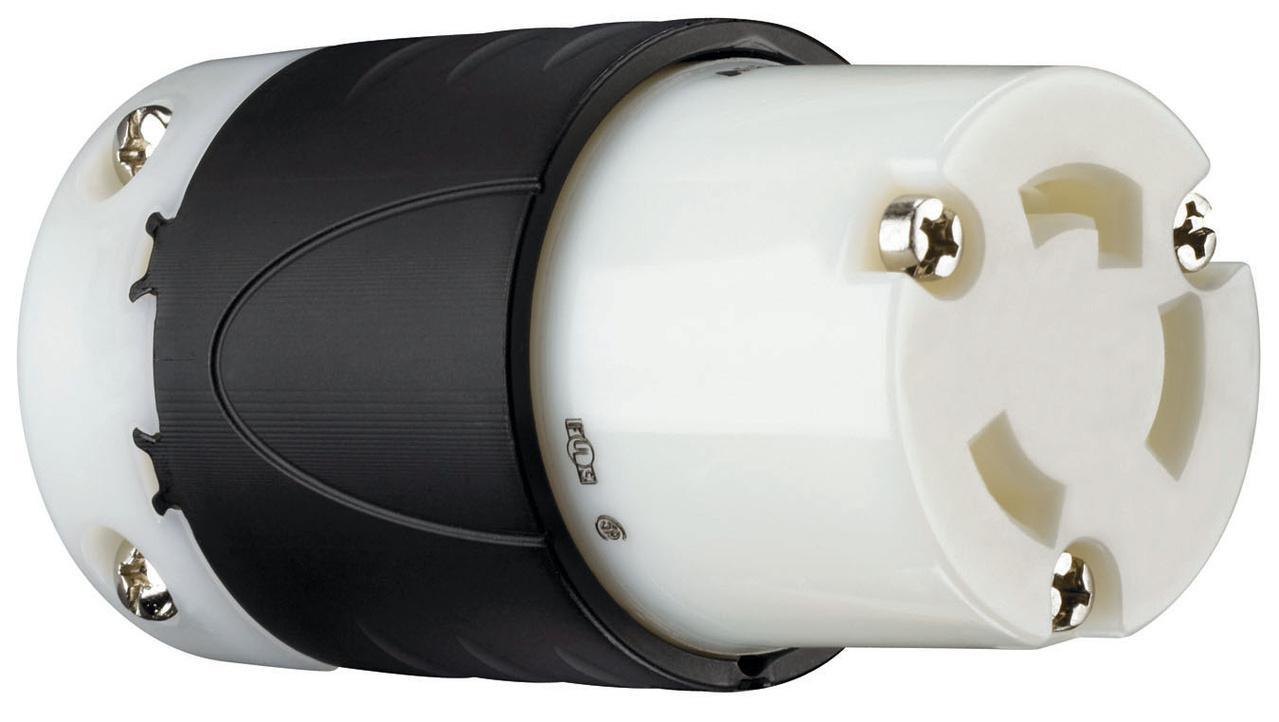

Legrand-Pass & Seymour L630-C Turnlok Locking Connector
Part Number # L630-C
SKU # 2258136
$70.37 / Each
Typical price:$88.00 / Each
Legrand-Pass & Seymour L630-C Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | L630-C |
| SKU #: | 2258136 |
| Amperage Rating: | 30, 30 A |
| Cord Diameter: | 0.39 to 1.15, 0.39 to 1.15 in |
| Dimensions: | 2.2 in Dia x 3.33 in L |
| Enclosure: | IP20 |
| Horsepower: | 2, 2 hp |
| NEMA Rating: | NEMA L6-30R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Screw |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121421 |
| UPC: | 00785007263015 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$70.37 / Each
Typical price:$88.00 / Each
Quantity:
Legrand-Pass & Seymour L630-C Turnlok Locking Connector
Brand: Legrand-Pass & Seymour
Part Number: L630-C
Pass & Seymour Turnlok Locking Connector, 250 VAC, 30 A, 2 hp, 2 Pole, 3 Wires, NEMA L6-30R, Industrial Grade, IP20 Enclosure, 0.39 to 1.15 in Cord Dia, -40 to 75 deg C, Screw Terminal, Nylon, Black/White, 2.2 in Dia x 3.33 in L
Additional Description: PS -L630-C TURNLOK CONNECTOR 3W 30A 250V
Catalog Description: Turnlok Registered Connector 3-Wire 30A 250V
L630-C Application
Industrial ApplicationsL630-C Item Features
- Quick-thread assembly screws and cord-grip screws come backed-out, ready-to-wire
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact- and corrosion-resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New-design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water, or chips entering wiring chamber
L630-C Standards
CSA Certified|Federal Specification WC596|UL 498|UL94 V-2 Flammability RatingSKU #2258136Part Number #L630-CUNSPSC39121421UPC00785007263015
