PS20AC1-CPL

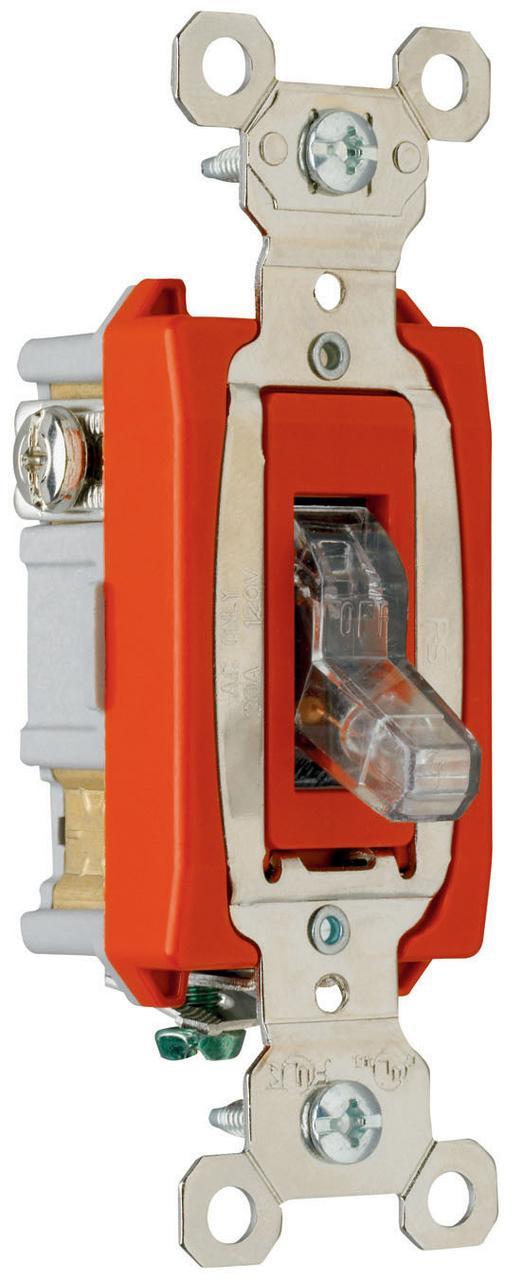

Legrand-Pass & Seymour PS20AC1-CPL Pilot Light Switch
Part Number # PS20AC1-CPL
SKU # 2198410
$46.00 / Each
Typical price:$67.10 / Each
Legrand-Pass & Seymour PS20AC1-CPL Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS20AC1-CPL |
| SKU #: | 2198410 |
| Actuator: | Cam/Spring/Toggle |
| Amperage Rating: | 20, 20 A |
| Connection: | Back/Side Wired Screw, Back/Side Wired/Screw |
| Dimensions: | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions: | -40 to 115 deg C Operating Temperature |
| Mounting: | Wall |
| Number of Poles: | 1 |
| Operating Cycles: | 50000, 50000 cycles |
| Type: | Heavy Duty Specification Grade |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122211 |
| UPC: | 00785007195835 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$46.00 / Each
Typical price:$67.10 / Each
Quantity:
- Pass & Seymour Pilot Light Switch, Heavy Duty Specification Grade, 120/277 V AC, 20 A, 1/2 hp Power, 1 Pole, Cam/Spring/Toggle Actuator, Back/Side Wired/Screw Connection, Wall Mounting, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 115 deg C Operating Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
PS20AC1-CPL Application
Commercial/Residential, Industrial, Health Care, Education and Institutional ApplicationsPS20AC1-CPL Item Features
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast make and positive break to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Strap nickel-plated steel with integral ground
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
PS20AC1-CPL Standards
CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL 20SKU #2198410Part Number #PS20AC1-CPLUNSPSC39122211UPC00785007195835
