Legrand-Pass & Seymour PS30AC2-HP Manual Controller Switch
Part Number # PS30AC2-HP
SKU # 2327169
PS30AC2-HP
Legrand-Pass & Seymour PS30AC2-HP Manual Controller Switch
Part Number # PS30AC2-HP
SKU # 2327169
Legrand-Pass & Seymour PS30AC2-HP Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS30AC2-HP |
| SKU #: | 2327169 |
| Connection: | Screw |
| Contact Rating: | 30 A at 120/277 V AC |
| Dimensions: | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions: | -40 to 115 deg C Temperature |
| UNSPSC: | 39122211 |
| UPC: | 00785007195972 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour PS30AC2-HP Manual Controller Switch
Brand: Legrand-Pass & Seymour
Part Number: PS30AC2-HP
Pass & Seymour Manual Controller Switch, Heavy Duty, 120/277 V AC, 30 A, 2 W, 30 A at 120/277 V AC Contact, 2 Pole, Toggle, Screw, NEMA 3R Enclosure, Wall, 50000 Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D
Additional Description: PS -PS30AC2-HP 30A 120-277VAC B+S WIRE HP RATED
Catalog Description: Double-Pole, Single Phase Switch, Back and Side-Wire, HP Rated. 30A, 277V.
PS30AC2-HP Application
Industrial ApplicationsPS30AC2-HP Item Features
- Compact design provides ease of installation
- Single piece moveable and stationary contact arms with oversized silver cadmium buttons provides excellent continuity and long life
- Box lug terminals
- Wire pockets and thick wall arc barriers
- Cold-rolled steel NEMA 3R enclosure with polyester urethane finish
- Type 3R enclosure has 2-1/2 in, 3/4 in, and 1 in concentric knockouts on bottom
- Accepts 4 AWGFor compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
PS30AC2-HP Standards
CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|UL 20|UL File No. E140597|UL94 V-2 Flammability Rating|Made in USASKU #2327169Part Number #PS30AC2-HPUNSPSC39122211UPC00785007195972

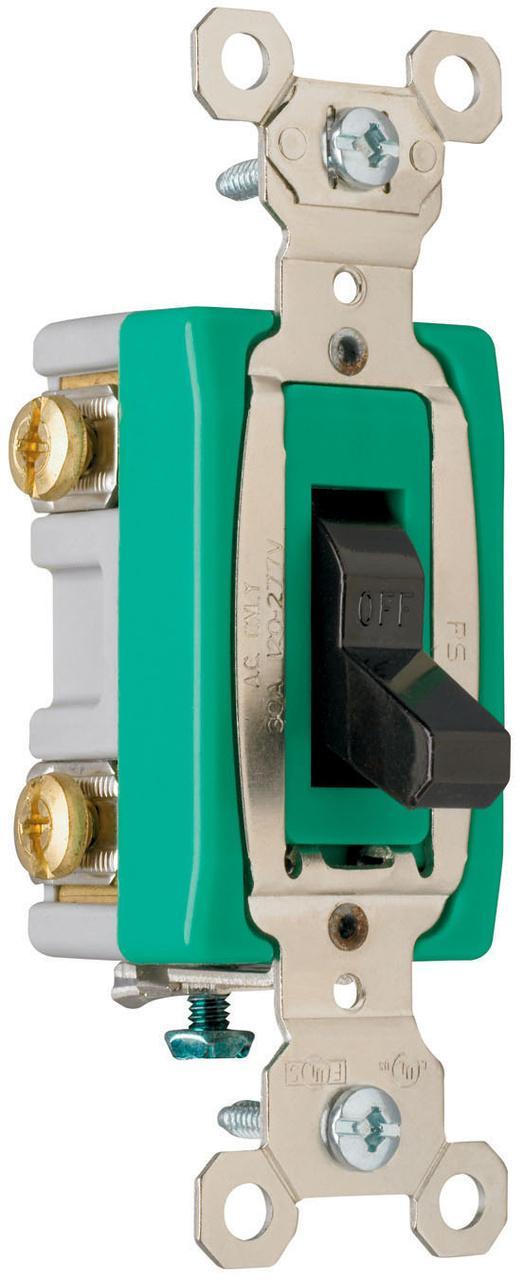

Image provided may only be a representation of final product and may include optional equipment
