Part Number # PS30AC2
SKU # 2176651
Image Disclaimers Message
PS30AC2

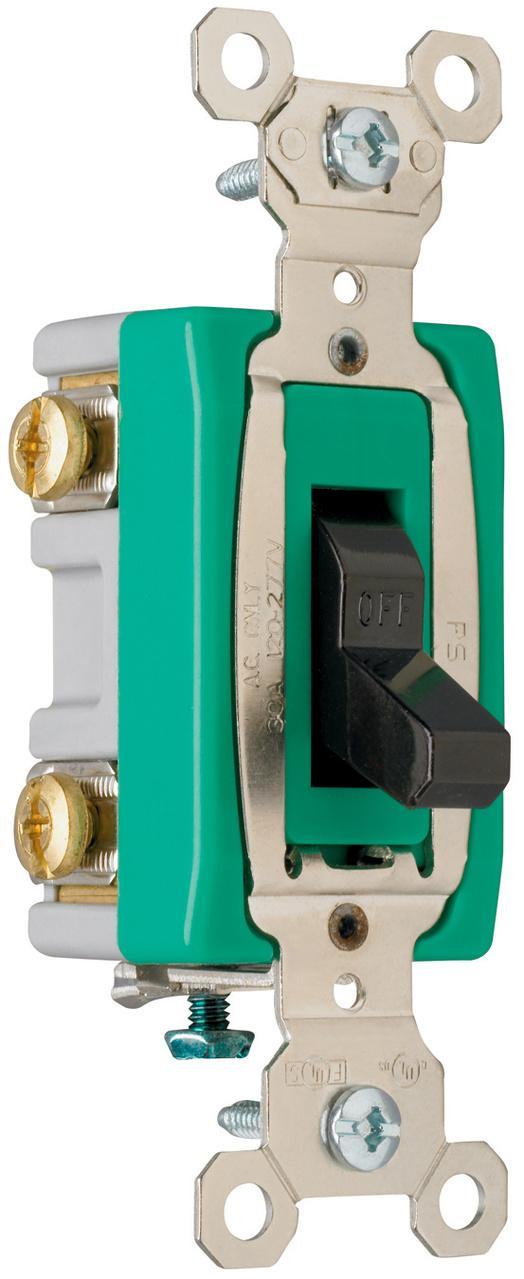

Legrand-Pass & Seymour PS30AC2 Toggle Switch
Part Number # PS30AC2
SKU # 2176651
$50.26 / Each
Typical price:$73.31 / Each
Legrand-Pass & Seymour PS30AC2 Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS30AC2 |
| SKU #: | 2176651 |
| Actuator: | Cam/Spring/Toggle |
| Amperage Rating: | 30, 30 A |
| Dimensions: | 3.3 in H x 1.32 in W x 1.073 in D |
| Environmental Conditions: | -40 to 115 deg C Temperature |
| Mounting: | Wall |
| Number of Poles: | 2 |
| Operating Cycles: | 50000, 50000 cycles |
| Terminal Type: | Back/Side Wired Screw, Screw |
| Type: | Heavy Duty |
| Color: | Brown |
| Country of origin: | MX |
| Material: | Thermoplastic |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39122211 |
| UPC: | 00785007195545 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$50.26 / Each
Typical price:$73.31 / Each
Quantity:
- Pass & Seymour Toggle Switch, Heavy Duty, 120/277 V AC, 30 A, 2 hp Power, 2 Pole, Cam/Spring/Toggle Actuator, Wall Mounting, Screw Terminal, 50000 Cycles Operating Cycles, Thermoplastic, Brown, Environmental Conditions: -40 to 115 deg C Temperature, 3.3 in H x 1.32 in W x 1.073 in D Dimensions
PS30AC2 Application
Commercial/Residential, Industrial, Health Care, Education and Institutional ApplicationsPS30AC2 Item Features
- External screw-pressure-plate back and side wired
- Accepts 14 - 10 AWG copper or copper-clad conductors
- Heavy-gauge one-piece copper alloy contact arm virtually eliminates contact bounce
- Cam controls fast make and positive break to minimize arcing
- Heavy-duty bumper pads for quiet operation
- High strength thermoplastic polycarbonate toggle
- Back body made of glass-reinforced nylon
- Locking support provides resistance to face and back body separation
- Oversized silver alloy contacts for long life and better heat dissipation
- Grounding terminal is standard
- Shallow design for ease of installation
- Strap nickel-plated steel with integral ground
- Auto-ground clip assures positive ground
- For compatible wall plate options, from our TradeMaster unbreakable plates to our radiant screwless plates to our metal wall plates, click here
PS30AC2 Standards
CSA C22.2 No. 111|cULus LR17446|Federal Specification WS896|NEMA WD1/WD6|UL 20 File No. E140597|UL 20|UL94 V-2 Flammability RatingSKU #2176651Part Number #PS30AC2UNSPSC39122211UPC00785007195545
