Brand: Legrand-Pass & Seymour

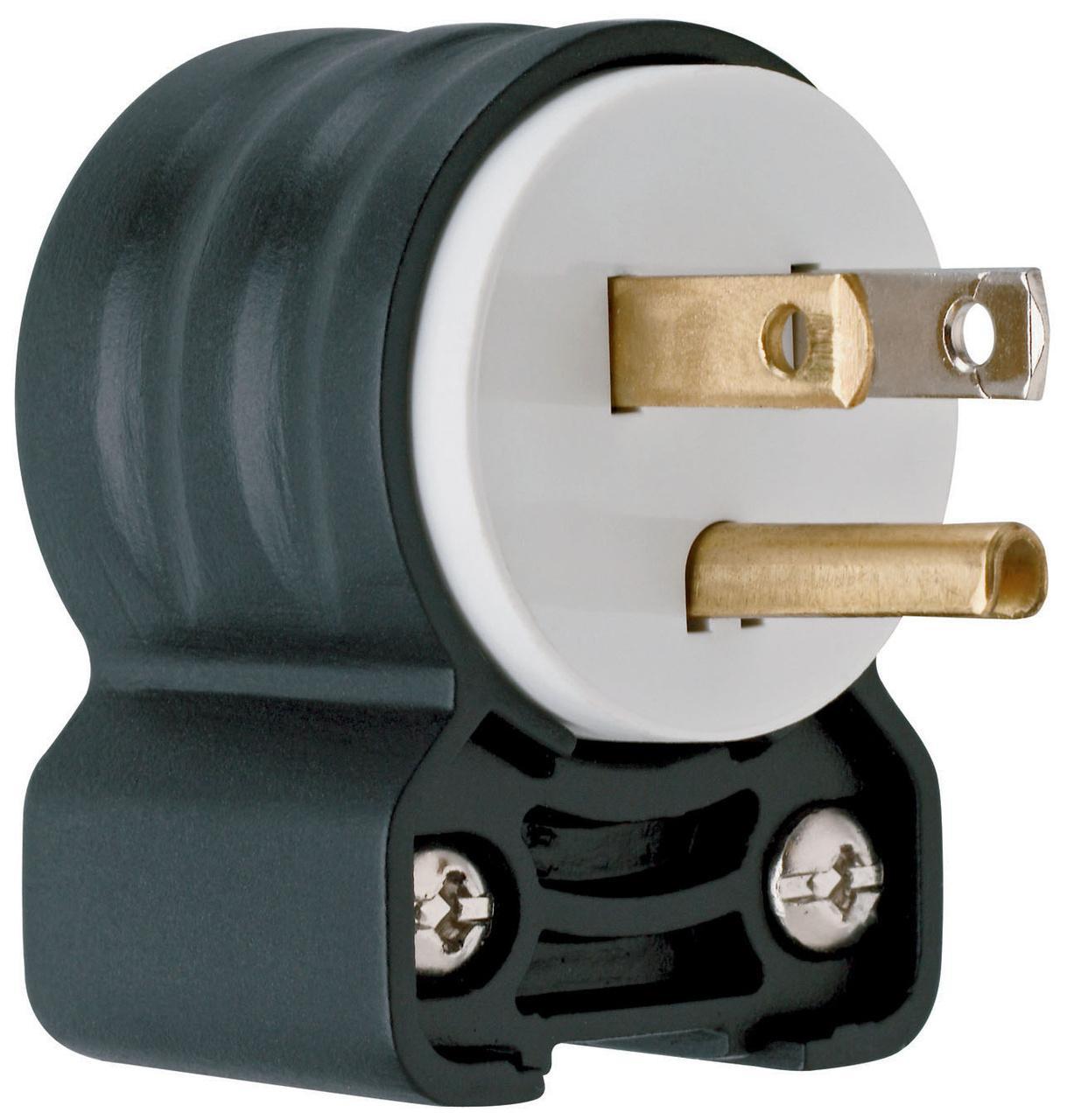

Legrand-Pass & Seymour PS5266-SSAN Power Outlet Straight Blade Plug
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5266-SSAN Power Outlet Straight Blade Plug
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5266-SSAN Power Outlet Straight Blade Plug
Part #:PS5266-SSAN
SKU #: 2136410
$13.64/EA
Key Features
Part #:PS5266-SSAN
SKU #: 2136410
Brand: Legrand-Pass & Seymour
Amperage Rating: 15, 15 A
Cord Diameter: 0.325 to 0.655, 0.325 to 0.655 in
Dimensions: 2.13 in H x 1.53 in W x 1.35 in D
NEMA Rating: NEMA 5-15P
Number of Poles: 2
$13.64/EA
- Angle plugs and adapters both allow for 4-position face rotation
- Angled - 4-position rotation, male receptacle, 3-pin contact, grounding
- Nylon housing for superior impact and chemical resistance
- Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise, provide excellent conductivity
- Single plane wiring engineered for speed backed out and ready to wire
- Tri-drive assembly and cord-grip screws are standard on all angle adapters
- Angle adapter (sold separately as catalog number EHU15AN) will accommodate all Pass and Seymour EHU-style Straight Blade plugs and connectors on a retrofit basis
- Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 15, 15 A
Cord Diameter: 0.325 to 0.655, 0.325 to 0.655 in
Dimensions: 2.13 in H x 1.53 in W x 1.35 in D
NEMA Rating: NEMA 5-15P
Number of Poles: 2
Number of Wires: 3
Terminal Type: Grounding Wire
Type: Angled Wire Grounding
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121402
UPC: 00785007236873
Item FeaturesFor tools, extension cords, machines, lighting and extra hard applications
Item Features
Item FeaturesCSA Certified|Federal Specification|UL 498
