Brand: Legrand-Pass & Seymour

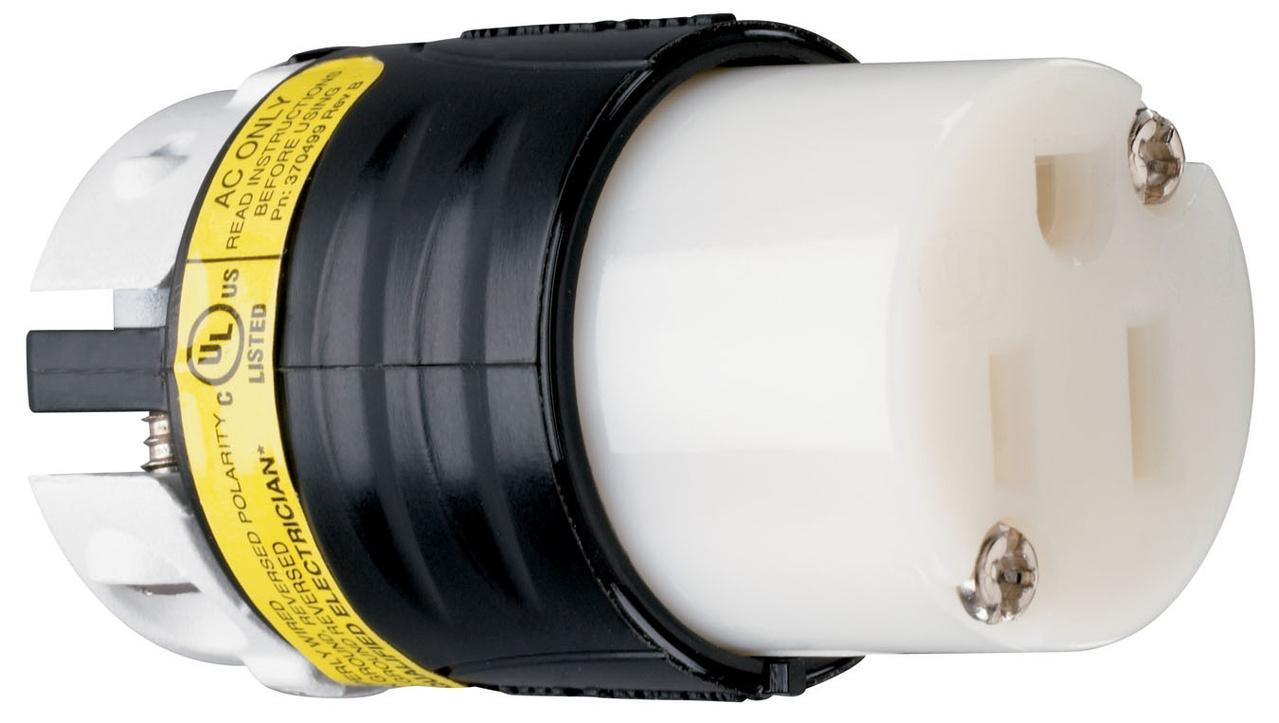

Legrand-Pass & Seymour PS5269-XGCM Straight Blade Connector
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5269-XGCM Straight Blade Connector
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5269-XGCM Straight Blade Connector
Part #:PS5269-XGCM
SKU #: 2302105
$39.84/EA
Key Features
Part #:PS5269-XGCM
SKU #: 2302105
Brand: Legrand-Pass & Seymour
Amperage Rating: 15, 15 A
Cord Diameter: 0.23 to 0.7, 0.23 to 0.7 in
Dimensions: 2.8, 2.8 in
Enclosure: IP20
NEMA Rating: NEMA 5-15R
$39.84/EA
- Get superior durability in commercial and industrial use a great choice for tools, extension cords, machines and lighting
- Color coded terminal screws positioned on the same plane and backed-out for fast, reliable installation
- Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
- See-through, thermoplastic terminal chamber for clear views of terminals and wire connections
- Single plane wiring engineered for speed backed out and ready to wire
- Industrial-strength, brass alloy plug blades and connector contacts resist heat rise and provide excellent conductivity
- Unit arrives completely ready-to-wire, cuts installation time significantly
- Rugged two-piece cord-grip provides more uniform cord retention
- Internal dust shield keeps terminals free of contaminants
- Tri-drive assembly screws are standard on all specification grade plugs and connectors
- 3-wire terminals located on the same plane, allows for quick wire termination from any angle
- More safety and productivity on the job with quick, intuitive wiring and a recessed cord-grip to reduce screwdriver slippage
- 18 to 10 AWG wire size
- Continuous monitoring enhances personnel safety and adds convenience
- Dual, bright LED indicators with 360 deg visibility
- Red LEDs indicate ground continuity loss or reversed polarity
- For 250V configurations, Hot to ground cross will be indicated by a green and red LED
- Chemical- and impact-resistant nylon housing features horizontal, easy-grip ribs on back body
- Exclusive two-piece cord grip accepts a wide range of cord widths
- Provides more consistent pressure for superior conductor retention
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 15, 15 A
Cord Diameter: 0.23 to 0.7, 0.23 to 0.7 in
Dimensions: 2.8, 2.8 in
Enclosure: IP20
NEMA Rating: NEMA 5-15R
Number of Poles: 2
Number of Wires: 3
Terminal Type: Threaded
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121402
UPC: 00785007237214
Item FeaturesExtra Hard Applications
Item Features
Item FeaturescULus Listed|UL 498
