Brand: Legrand-Pass & Seymour

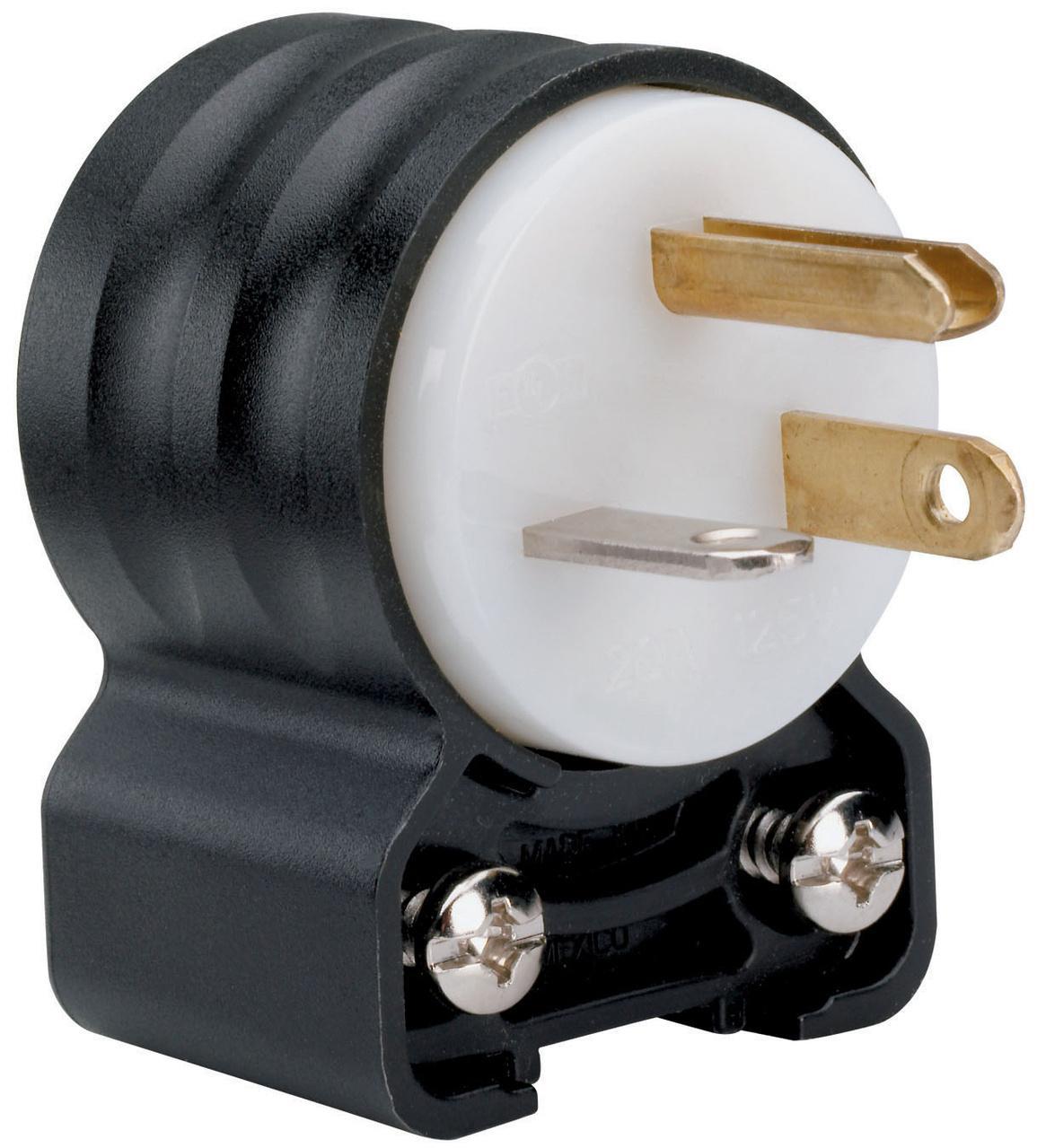

Legrand-Pass & Seymour PS5366-SSAN Straight Blade Plug
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5366-SSAN Straight Blade Plug
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS5366-SSAN Straight Blade Plug
Part #:PS5366-SSAN
SKU #: 2289920
$24.66/EA
Key Features
Part #:PS5366-SSAN
SKU #: 2289920
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Cord Diameter: 0.32 to 0.655, 0.32 to 0.655 in
Dimensions: 2.13 in H x 1.53 in W x 1.35 in D
Frequency Rating: 60, 60 Hz
Horsepower: 1, 1 hp
$24.66/EA
- 1500 VAC minimum dielectric withstand voltage
- 30 deg C maximum, 50 cyclest 150% rated current temperature rise
- 14 AWG wire size
- Nylon backend front body, polycarbonate terminal chamber, nylon cord clamped insert, brass blades, zinc plated steel terminal clamp
- Angle plugs and adapters both allow for 4-position face rotation
- Tri-drive assembly and cord-grip screws are standard on all angle adapters
- Angle adapter (sold separately as catalog number EHU15AN) will accommodate all Pass and Seymour EHU-style Straight Blade plugs and connectors on a retrofit basis
- Simply remove the straight handle body from the plug or connector face assembly, and replace with the angle adapter
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 20, 20 A
Cord Diameter: 0.32 to 0.655, 0.32 to 0.655 in
Dimensions: 2.13 in H x 1.53 in W x 1.35 in D
Frequency Rating: 60, 60 Hz
Horsepower: 1, 1 hp
NEMA Rating: NEMA 5-20P
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75, -40 to 75 deg C
Terminal Type: Threaded
Type: Angled Extra Hard Use
Voltage Rating: 125, 125 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121402
UPC: 00785007236972
Item Features
Item FeaturesCSA Certified|UL 498|UL 94V-2 Flammability Rating
