PS5466-X

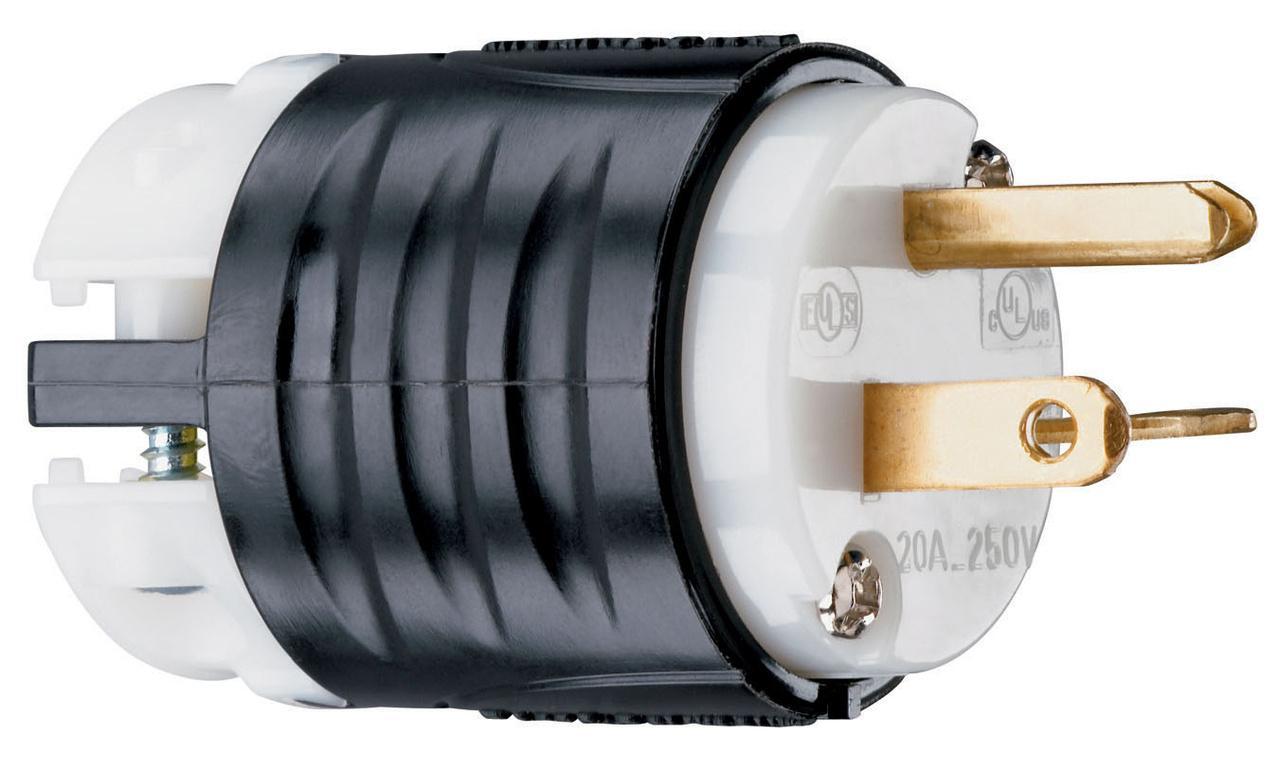

Legrand-Pass & Seymour PS5466-X Straight Blade Plug
Part Number # PS5466-X
SKU # 2254029
$25.50 / Each
Typical price:$31.88 / Each
Legrand-Pass & Seymour PS5466-X Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PS5466-X |
| SKU #: | 2254029 |
| Amperage Rating: | 20, 20 A |
| Cord Diameter: | 0.23 to 0.69, 0.23 to 0.69 in |
| Dimensions: | 1.516 in H x 1.516 in W x 1.752 in D |
| NEMA Rating: | NEMA 6-20P |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 75, -40 to 75 deg C |
| Terminal Type: | Grounding Wire |
| Type: | Extra Hard Use Wire Grounding |
| Color: | Black/White |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121402 |
| UPC: | 00785007237078 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$25.50 / Each
Typical price:$31.88 / Each
Quantity:
- Pass & Seymour Straight Blade Plug, Extra Hard Use Wire Grounding, 250 V AC, 20 A, 2 Pole, 3 Wires, NEMA 6-20P, Specification Grade, 0.23 to 0.69 in Cord Dia, -40 to 75 deg C, Grounding Wire Terminal, Nylon, Black/White, 1.516 in H x 1.516 in W x 1.752 in D
PS5466-X Application
Industrial, Retail, Health Care, Office, Education, Hospitality/Lodging, Institution and Multiple Dwelling, Extra Hard ApplicationsPS5466-X Item Features
- Unit arrives completely ready-to-wire, cuts installation time significantly
- Nylon housing provides impact and chemical resistance
- Rugged two-piece cord grip provides more uniform cord retention
- Internal dust shield keeps terminals free of contaminants
- Tri-drive assembly screws are standard on all Specification Grade plugs and connectors
- All 3-wire terminals located on the same plane, allows for quick wire termination from any angle
- Heavy-duty brass alloy blades and contacts, resist heat rise, provide excellent conductivity
- Cord-grip screws recessed to protect installer against screwdriver head slippage
PS5466-X Standards
CSA C22.2 No. 42|UL 498|UL94V-2 Flammability RatingSKU #2254029Part Number #PS5466-XUNSPSC39121402UPC00785007237078
