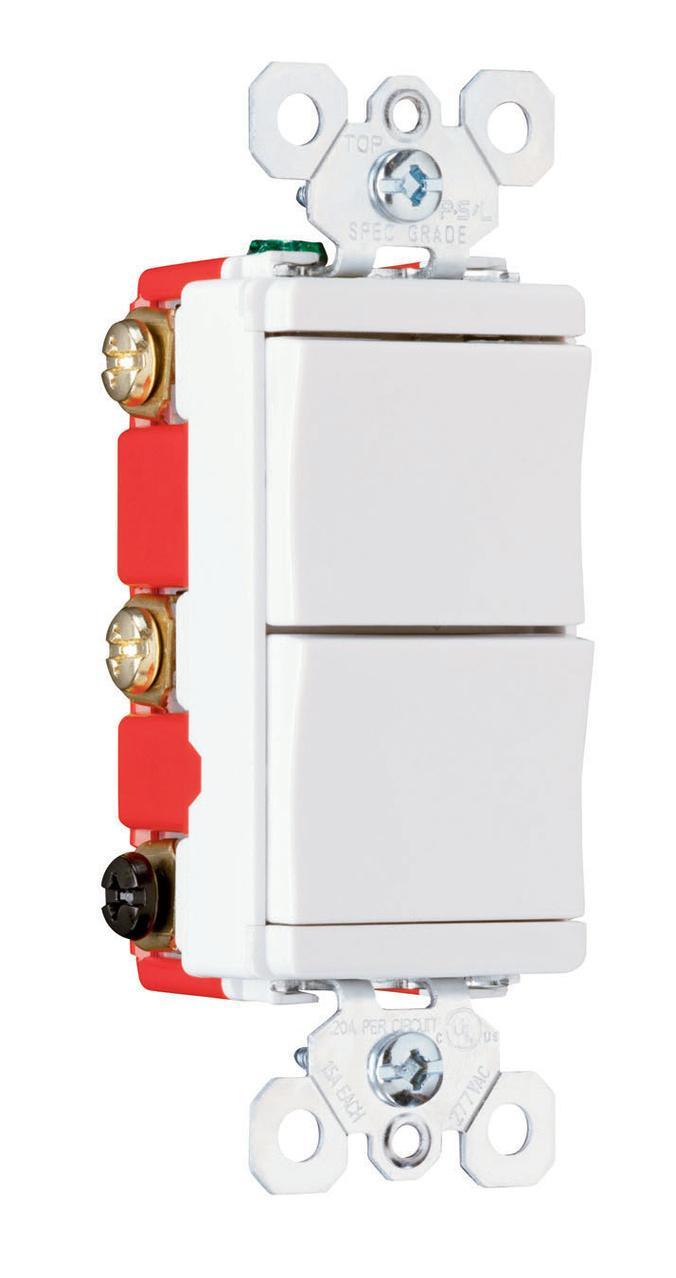

Legrand-Pass & Seymour PS811-20W TradeMaster Decorator Combination Switch
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS811-20W TradeMaster Decorator Combination Switch
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour PS811-20W TradeMaster Decorator Combination Switch
Part #:PS811-20W
SKU #: 2311095
$22.33/EA
Key Features
Part #:PS811-20W
SKU #: 2311095
Brand: Legrand-Pass & Seymour
Actuator: Rocking Paddle Up/Down
Electrical Ratings: 20 A, 277 VAC
Enclosure: NEMA WD-1/WD-6
Environmental Conditions: -40 to 115 deg C Operating Temperature
Mounting: Wall
$22.33/EA
- Impact-resistant polycarbonate back body and frame
- Unique single rocking butterfly contact provides long-term consistent performance with significantly fewer moving parts
- Internal screw pressure plate back and side wire capability for easy installation with 14 to 10 AWG stranded or solid copper clad wire
- Terminals made of high conductivity brass and serrated for maximum wire gripping
- Silver alloy contacts integrally formed to the butterfly actuator assures reliable performance
- Integral auto-ground clip for positive ground to metal boxes
- Tri-drive ground, terminal and mounting screws
- All terminal screws backed out, ready-to-install
- Full wraparound heavy gauge steel strap is plated for corrosion resistance and features lock in tabs
- Unique up down switches match the look and feel of standard decorator switches
- Patent pending split circuit tab easily accessible and can be reinstalled without a tool
- Patent pending snap-in light module (sold separately) transforms a combination switch into an illuminated switch
- Maximum 30 deg C at rated current temperature rise
- Cushioned thermoplastic paddle assures smooth, quiet, long-term operation
- http://www.youtube.com/watch?v=LX4RBw7p4YE
Specifications
Brand: Legrand-Pass & Seymour
Actuator: Rocking Paddle Up/Down
Electrical Ratings: 20 A, 277 VAC
Enclosure: NEMA WD-1/WD-6
Environmental Conditions: -40 to 115 deg C Operating Temperature
Mounting: Wall
Number of Poles: 1
Operating Cycles: 50000, 50000 cycles
Size: 1.29 in L x 1.59 in W x 3.812 in H
Type: Back/Side Wired Specification Grade
Color: White
Country of origin: CN
Material: Polycarbonate
Manufacturer Name: Legrand
UNSPSC: 39122226
UPC: 00785007305890
Item FeaturesCommercial Applications
Item Features
Item FeaturesECCN: EAR99|UL 20|UL 94 V-2 Flammability Rated|UL Listed
