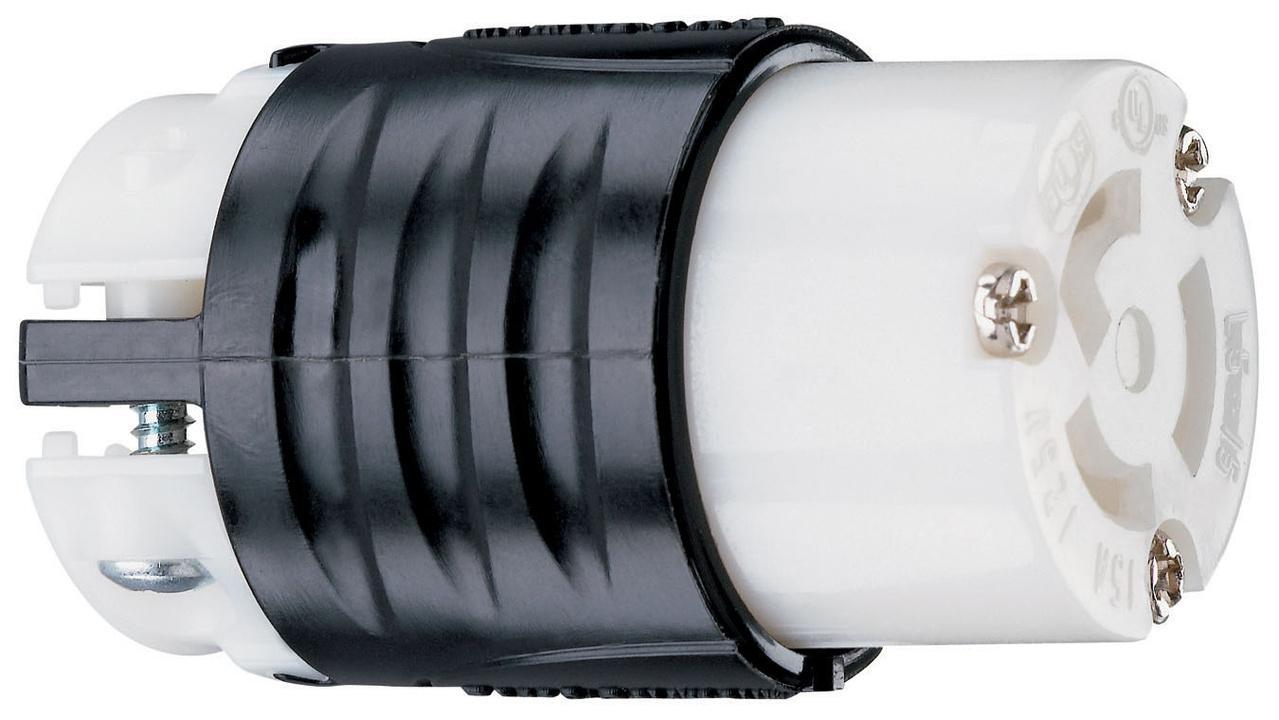

Legrand-Pass & Seymour PSL515-C Turnlok Locking Connector
Image Disclaimers Message
Legrand-Pass & Seymour PSL515-C Turnlok Locking Connector
Legrand-Pass & Seymour PSL515-C Turnlok Locking Connector
Part #:PSL515-C
SKU #: 2376662
$27.80/EA
Key Features
Part #:PSL515-C
SKU #: 2376662
Brand: Legrand-Pass & Seymour
Amperage Rating: 15 A
Cord Diameter: 0.23 to 0.72 in
Dimensions: 1.52 in Dia x 2.6 in L
Enclosure: IP20
Horsepower: 1/2 hp
$27.80/EA
- Quick-thread assembly screws and cord-grip screws come backed-out and ready-to-wire
- Raised ribs provide non-slip gripping profile for turning to lock and unlock
- Double dovetail design provides superior protection against cord pull-out forces
- Impact and corrosion resistant durable nylon 6 shell material
- Rounded back contour reduces snags and hang-ups on the job site
- Scallop shell design provides non-slip gripping surface for insertion and withdrawal
- Visible stamped NEMA configuration and device rating
- New design external cord grips provide visible assurance of safe and proper cord retention
- Integral flexible rubber cord grommet conforms to and seals around SO cord to provide protection from oils, water or chips entering wiring chamber
- 1600 VAC minimum dielectric strength voltage
- 18 to 10 AWG wire size
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 15 A
Cord Diameter: 0.23 to 0.72 in
Dimensions: 1.52 in Dia x 2.6 in L
Enclosure: IP20
Horsepower: 1/2 hp
NEMA Rating: NEMA L5-15R
Number of Poles: 2
Number of Wires: 3
Temperature Rating (Degrees F): -40 to 75 deg C
Terminal Type: Screw
Voltage Rating: 125 VAC
Color: Black/White
Country of origin: MX
Material: Nylon
Manufacturer Name: Legrand
UNSPSC: 39121403
UPC: 00078500723664
Item FeaturesIndustrial Applications
Item Features
Item FeaturesCSA Certified|Federal Specification WC596|UL 498|UL94 V-2 Flammability Rating
