Part Number # PSM2-FW
SKU # 2386293
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
PSM2-FW

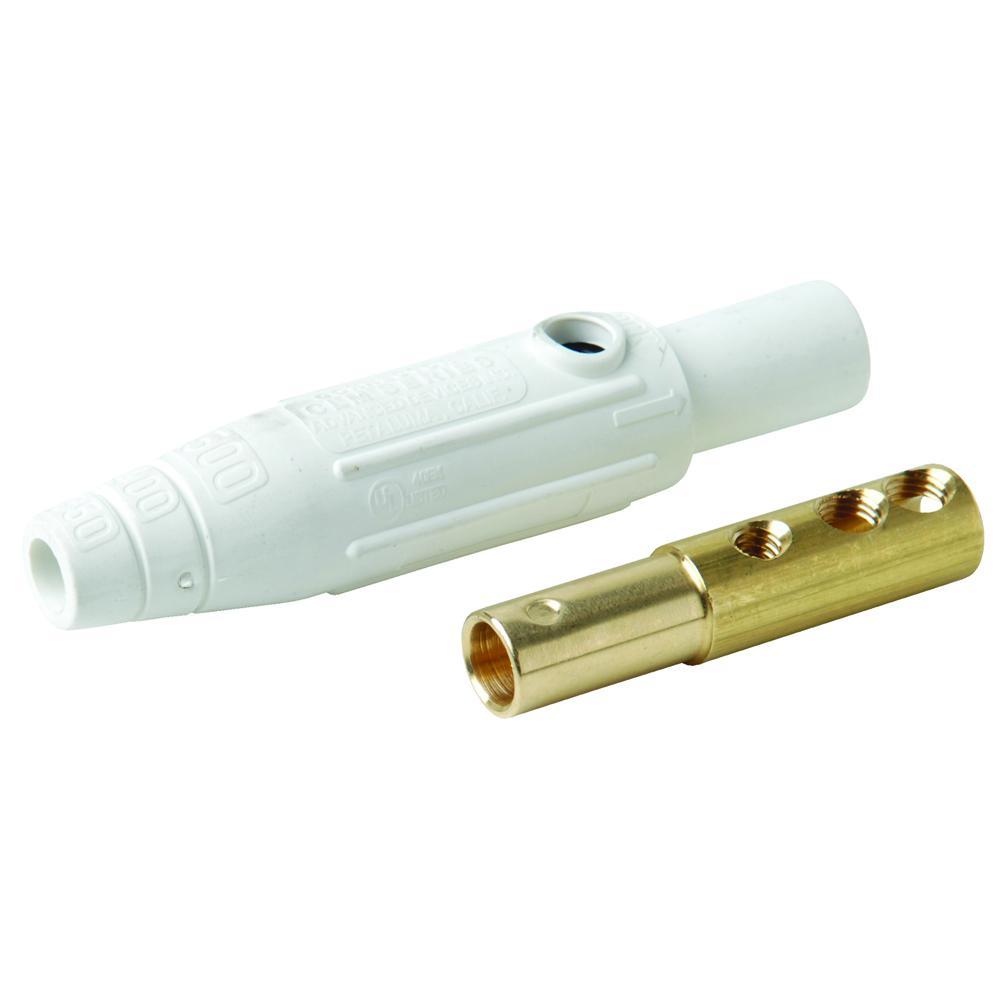

Legrand-Pass & Seymour PSM2-FW In-Line Connector
Part Number # PSM2-FW
SKU # 2386293
$28.29 / Each
Typical price:$33.01 / Each
Legrand-Pass & Seymour PSM2-FW Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | PSM2-FW |
| SKU #: | 2386293 |
| Amperage Rating: | 150 A |
| Dimensions: | 4.3 in L |
| NEMA Rating: | NEMA 3R/4 |
| Series: | 15 Series |
| Specifications: | Type SC/SCE/SCT/W Individual Copper Wire Conductor |
| Temperature Rating (Degrees F): | -40 to 75 deg C |
| Type: | 1-Pole Cam-Type |
| Wire Size: | 8 to 2 AWG |
| Color: | White |
| Connection type: | Female |
| Contact material: | Brass |
| Country of origin: | MX |
| Housing material: | Thermoplastic Elastomer |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121421 |
| UPC: | 00785007308914 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$28.29 / Each
Typical price:$33.01 / Each
Quantity:
Legrand-Pass & Seymour PSM2-FW In-Line Connector
Brand: Legrand-Pass & Seymour
Part Number: PSM2-FW
Pass & Seymour In-Line Connector, 1-Pole Cam-Type, Series: 15 Series, 600 VAC, 150 A, 8 to 2 AWG Wire, Female Connection, Brass Contact, Thermoplastic Elastomer Housing Material, NEMA 3R/4 NEMA Rating, Specifications: Type SC/SCE/SCT/W Individual Copper Wire Conductor, -40 to 75 deg C, White, 4.3 in L Dimensions
Additional Description: PS -PSM2-FW 150A 600V FMALE CAM TYPE PLUG WH
Catalog Description: 150A 600V FMALE CAM TYPE PLUG
PSM2-FW Application
For movie and other entertainment production, stage productions, fairs and carnivals, theme parks, concert venues, arenas and convention centers, mining and construction, shipping, airports, many other portable/temporary and commercial/industrial applicationsPSM2-FW Item Features
- Thermoplastic elastomer housing for outstanding impact and chemical resistance, as well as an exceptional seal for maintaining NEMA Type 3R and 4 integrity
- Non-conductive retaining screw helps to insure no contact with live parts, along with providing stability to the fully assembled product
- Heavy-duty brass male and female contacts provide a superior and consistent means of conductivity
- Heavy-duty hex set screws allow greater termination torque
PSM2-FW Standards
cCSAus Certified|CSA Certified|ECCN: EAR99|UL 94 V-2 Flammability RatedSKU #2386293Part Number #PSM2-FWUNSPSC39121421UPC00785007308914
