Brand: Legrand-Pass & Seymour

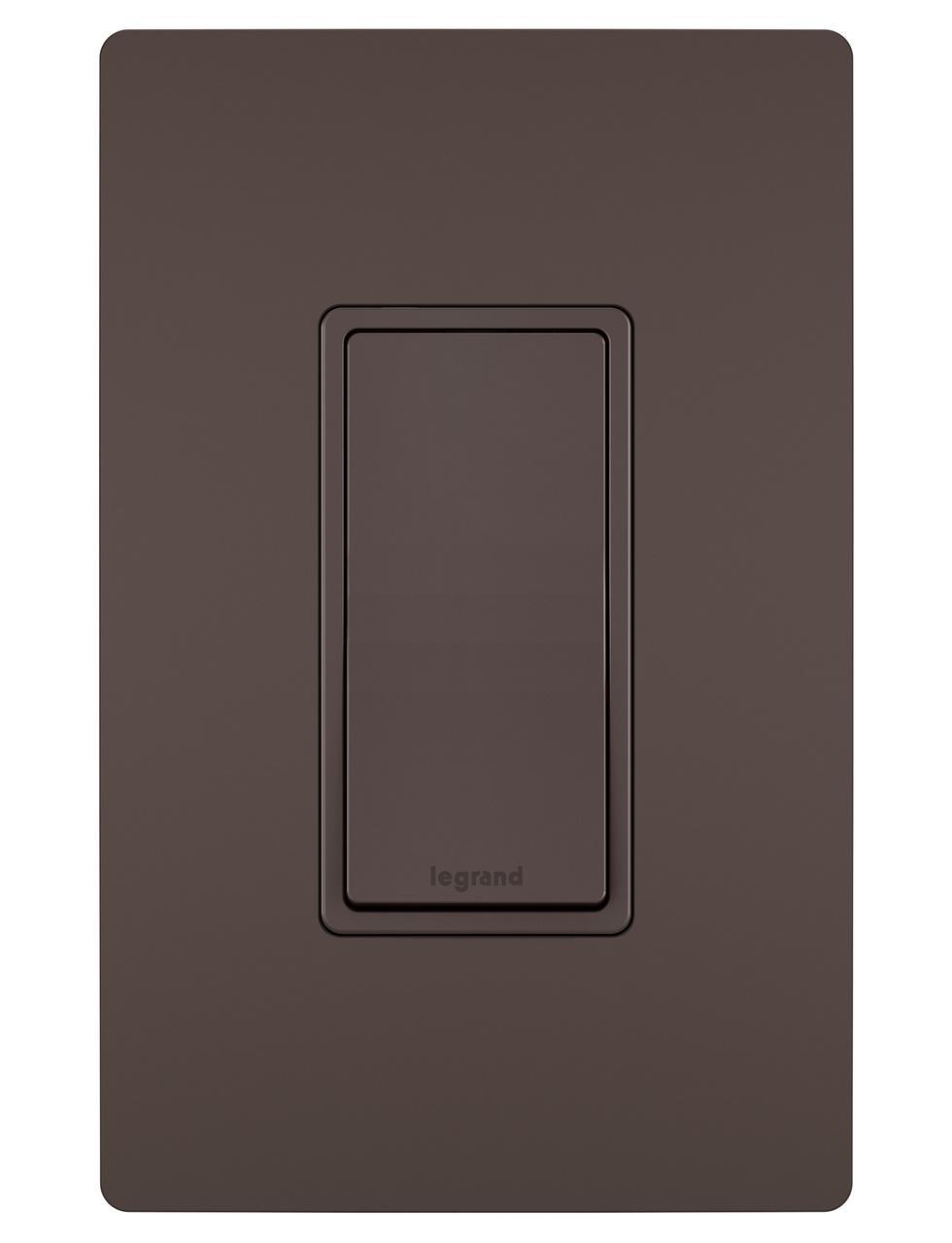

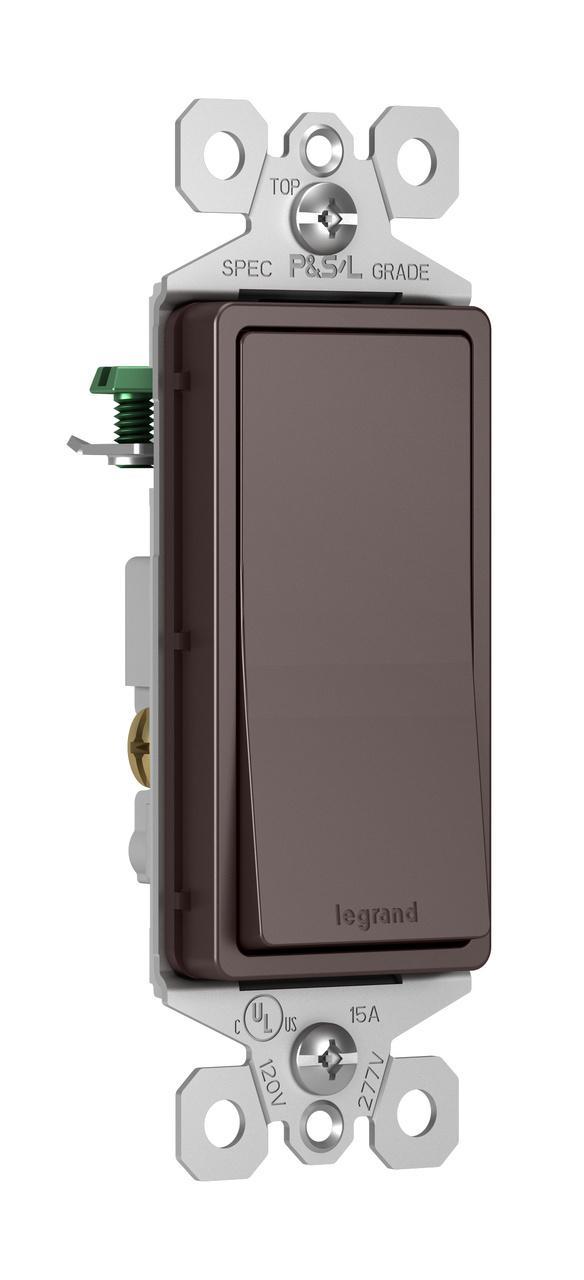

Legrand-Pass & Seymour TM873-DBCC10 Decorator Switch
Image Disclaimers Message
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour TM873-DBCC10 Decorator Switch
Brand: Legrand-Pass & Seymour
Legrand-Pass & Seymour TM873-DBCC10 Decorator Switch
Part #:TM873-DBCC10
SKU #: 2386762
$183.70/10EA
Key Features
Part #:TM873-DBCC10
SKU #: 2386762
Brand: Legrand-Pass & Seymour
Amperage Rating: 15 A
Contact Rating: 15 A at 120/277 VAC
Dimensions: 4.19 in H x 1.43 in W x 1.27 in D
Insulation: Bare
Mounting: Wall
$183.70/10EA
- Smooth paddle action
- External screw pressure plate back and side wired
- Accepts 12 and 14 AWG wire size
- Narrow back body leaves more room for wires in the box
- Extra long, through body strap eliminates floating installations and imperfect applications
- Tri-drive ground, terminal and mounting screws
- Self-grounding
- Dependable, high performance
- 0.031 in brass line contact
- 0.042 in zinc plated steel
- #8 hex tri-drive steel, zinc coating with green chromate ground screw
- 30 deg temperature rise for rated current
- Replaces any standard switch with ease, in as little as 10 min
- Uses a paddle switch for smoother control with a low-profile aesthetic
- Features durable, high-impact resistant thermoplastic construction
- Designed to install easily with a narrower back body and captivated mounting screws
- More color options available to fit any style, including finishes to match current hardware and lighting trends
- Complete the look with a sleek, screwless radiant Wall Plate, and coordinate with other designer switches and outlets available from the radiant Collection
Specifications
Brand: Legrand-Pass & Seymour
Amperage Rating: 15 A
Contact Rating: 15 A at 120/277 VAC
Dimensions: 4.19 in H x 1.43 in W x 1.27 in D
Insulation: Bare
Mounting: Wall
Number of Poles: 3
Type: 3-Way
Voltage Rating: 120/277 VAC
Color: Dark Bronze
Country of origin: CN
Material: Thermoplastic
Manufacturer Name: Legrand
UNSPSC: 39122226
UPC: 00078500702940
Item FeaturesResidential, Multi-Dwelling, Commercial Office and Hospitality Applications
Item Features
Item FeaturesCSA C22.2 111 Certified|cULUS Listed|NEC 430-104|UL 20|UL Listed
