Part Number # TR26361-BK
SKU # 2371611

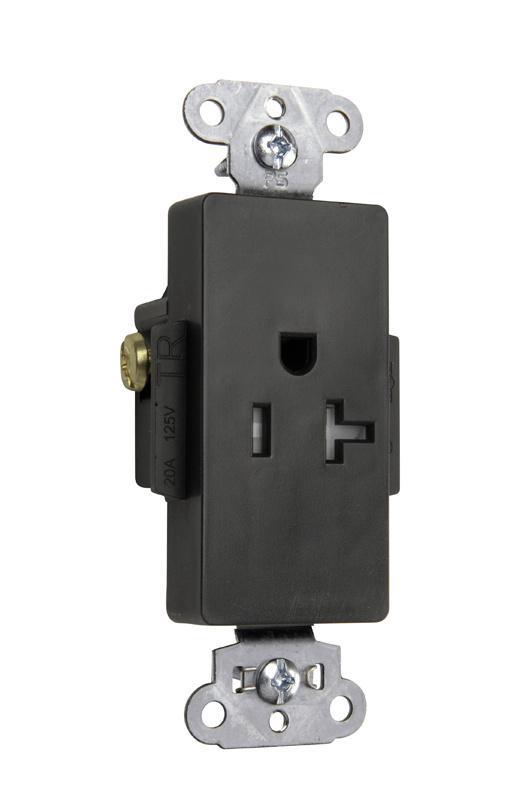

Image provided may only be a representation of
final product and may include optional equipment
TR26361-BK
Legrand-Pass & Seymour TR26361-BK Straight Blade Receptacle
Part Number # TR26361-BK
SKU # 2371611
Legrand-Pass & Seymour TR26361-BK Key Features
| Brand: | Legrand-Pass & Seymour |
|---|---|
| Part Number # : | TR26361-BK |
| SKU #: | 2371611 |
| Amperage Rating: | 20, 20 A |
| Dimensions: | 1.322 in L x 1.188 in W x 3.813 in H |
| NEMA Rating: | NEMA 5-20R |
| Number of Poles: | 2 |
| Number of Wires: | 3 |
| Temperature Rating (Degrees F): | -40 to 60, -40 to 60 deg C |
| Terminal Type: | Back/Side Wire, Back/Side Wired |
| Type: | Decorator Heavy Duty Single Tamper-Resistant Wall Mount |
| Country of origin: | MX |
| Material: | Nylon |
| Manufacturer Name: | Legrand |
| UNSPSC: | 39121406 |
| UPC: | 00078500700499 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
Legrand-Pass & Seymour TR26361-BK Straight Blade Receptacle
Brand: Legrand-Pass & Seymour
Part Number: TR26361-BK
Pass & Seymour Straight Blade Receptacle, Decorator Heavy Duty Single Tamper-Resistant Wall Mount, 125 VAC, 20 A, 2 Pole, 3 Wires, NEMA 5-20R NEMA Rating, Federal Specification Grade, -40 to 60 deg C, Back/Side Wire Terminal, Nylon, Black, 1.322 in L x 1.188 in W x 3.813 in H Dimensions
Additional Description: PS -TR26361-BK (N) DECO REC SGL TAMPER RES 20A/125V BK NON-CANCELABLE, NON-RETURNABLE
Catalog Description: Tamper-Resistant Heavy-Duty Decorator Spec Grade Single Receptacle, Back and Side Wire, 20A, 125V
TR26361-BK Application
Commercial ApplicationsTR26361-BK Item Features
- Dual mechanical shutter system to help prevent insertion of foreign objects
- Easily accessed break-off line-contact connecting tab for fast and easy split-circuit wiring
- Backed-out tri-drive brass terminal screws for faster installation
- Internal screw-pressure-plate back and side wire capability
- Two back wire holes for additional wiring flexibility
- 0.032 in thick brass triple-wipe power contacts
- Two drive screws anchor steel strap to back body and face where abrupt removal torque is greatest
- Temperature Rise, Maximum 30 deg C temperature rise at full-rated current after 50 cycles of overload at 150 Percent of rated current with direct current
- Operating Temperature, Maximum continuous +60 deg C, minimum -40 deg C without impact
- https://www.youtube.com/watch?v=CjT4MIzB4sw
TR26361-BK Standards
CSA C22.2 No. 42|UL 498|PROP65: This product can expose you to chemicals including - nickel compounds, which is known to the State of California to cause cancer and Bisphenol A (BPA) which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.govSKU #2371611Part Number #TR26361-BKUNSPSC39121406UPC00078500700499
