Brand: Leuze
50113725

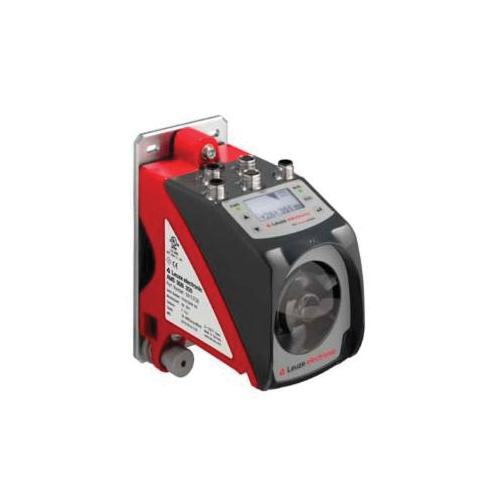

Leuze 50113725 Optical Distance Sensor
Part Number # 50113725
SKU # 2343745
$5486.00 / Each
Leuze 50113725 Key Features
| Brand: | Leuze |
|---|---|
| Part Number # : | 50113725 |
| SKU #: | 2343745 |
| Enclosure Type: | IP65 |
| Environmental Conditions: | -30 to 70 deg C Ambient Storage Temperature |
| Light Source: | LED |
| Operating Temperature: | -5 to 50, -5 to 50 deg C |
| Sensing Beam: | Red Laser |
| Sensing Range: | 200 to 40000, 200 to 40000 mm |
| Series: | AMS 300 |
| Size: | 159 mm L x 84 mm W x 166.5 mm H |
| Connection type: | 5-Pin M12 Male Connector |
| Mounting type: | Wall |
| Manufacturer Name: | Leuze Electronic |
| UNSPSC: | 39121528 |
Buy Now Pay Later
Get 30 days to pay with Net 30 Terms. Apply Now.
$5486.00 / Each
Quantity:
- Leuze Optical Distance Sensor, Series: AMS 300, Cube, 200 to 40000 mm Sensing Range, Red Laser Sensing Beam, 18 to 30 V DC, 5-Pin M12 Male Connector, LED Light Source, 159 mm L x 84 mm W x 166.5 mm H, IP65, -5 to 50 deg C Operating, Wall Mount, Environmental Conditions: -30 to 70 deg C Ambient Storage Temperature
50113725 Application
Positioning of Skillet Systems and Side-tracking Skates, Positioning of Electroplating Plants, Positioning of High-bay Storage Devices and Collision Protection of Cranes/Gantry Cranes50113725 Item Features
- EtherNet IP interface with integrated switch functionality and 10 Mbit/s, 100 Mbit/s transmission speed
- Metal, die-cast zinc/aluminum housing
- 90% relative humidity (non-condensing)
- Protection class III
- LC Display, LED
- Membrane keyboard control operation
- Laser class 2, IEC/EN 60825-1:2007
50113725 Standards
cULus Listed|ETIM 5.0 EC001825SKU #2343745Part Number #50113725UNSPSC39121528UPC
